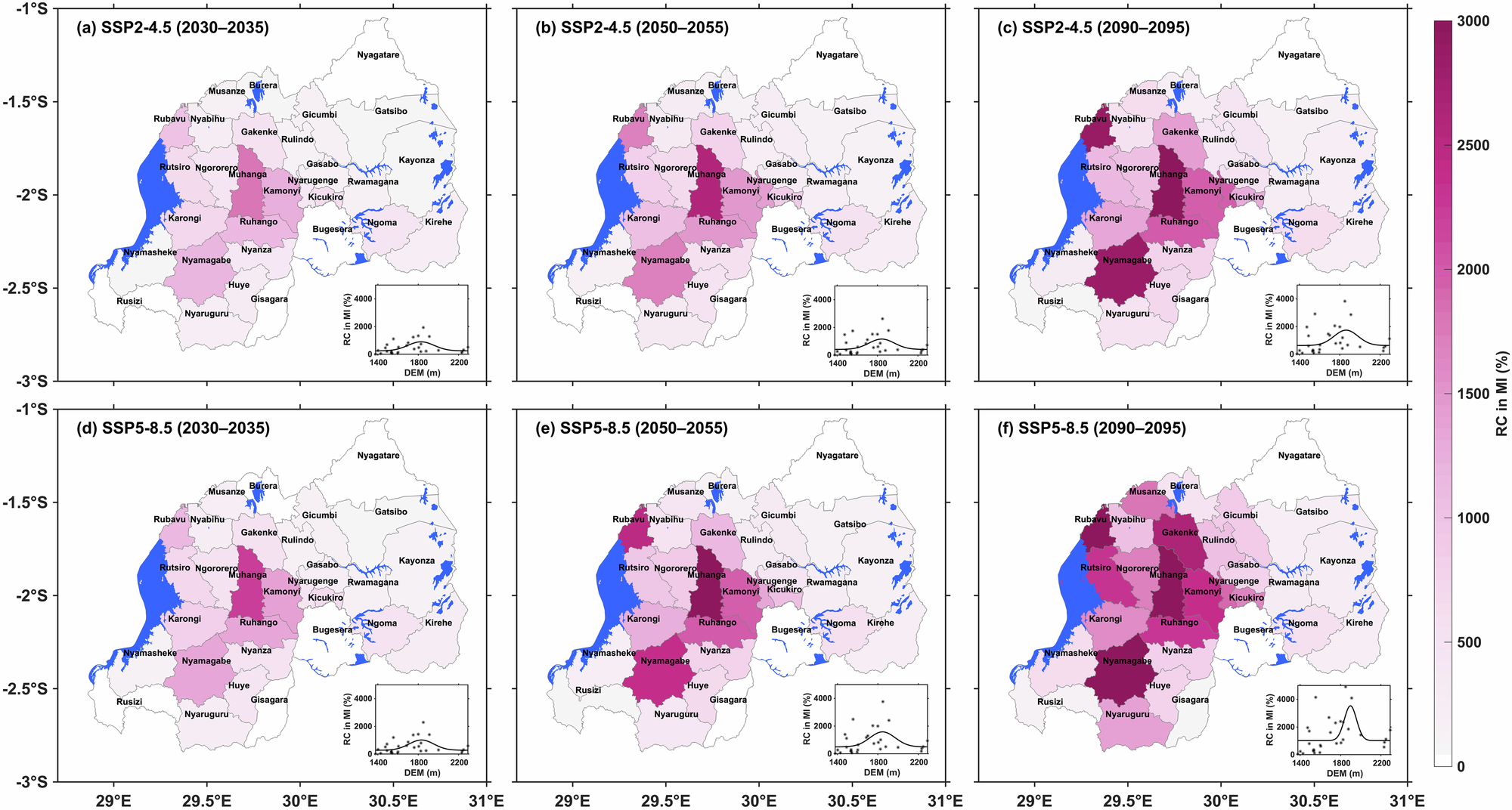

Fig. 4: Spatial changes in malaria incidence under climate scenarios.
From: Malaria transmission risk is projected to increase in the highlands of Western and Northern Rwanda
Spatial pattern of relative change (%) in malaria incidence (denoted as RC in MI) for the periods 2030–2035, 2050–2055, and 2090–2095 under SSP2-4.5 (a–c), SSP5-8.5 (d–f). The scatter in the subplot on each panel indicates the relationship between RC in MI and elevation, while the solid line represents the fitted Gaussian curve relating RC in MI to elevation, and blue areas indicate the lakes. The base map is retrieved from GADM data54.
