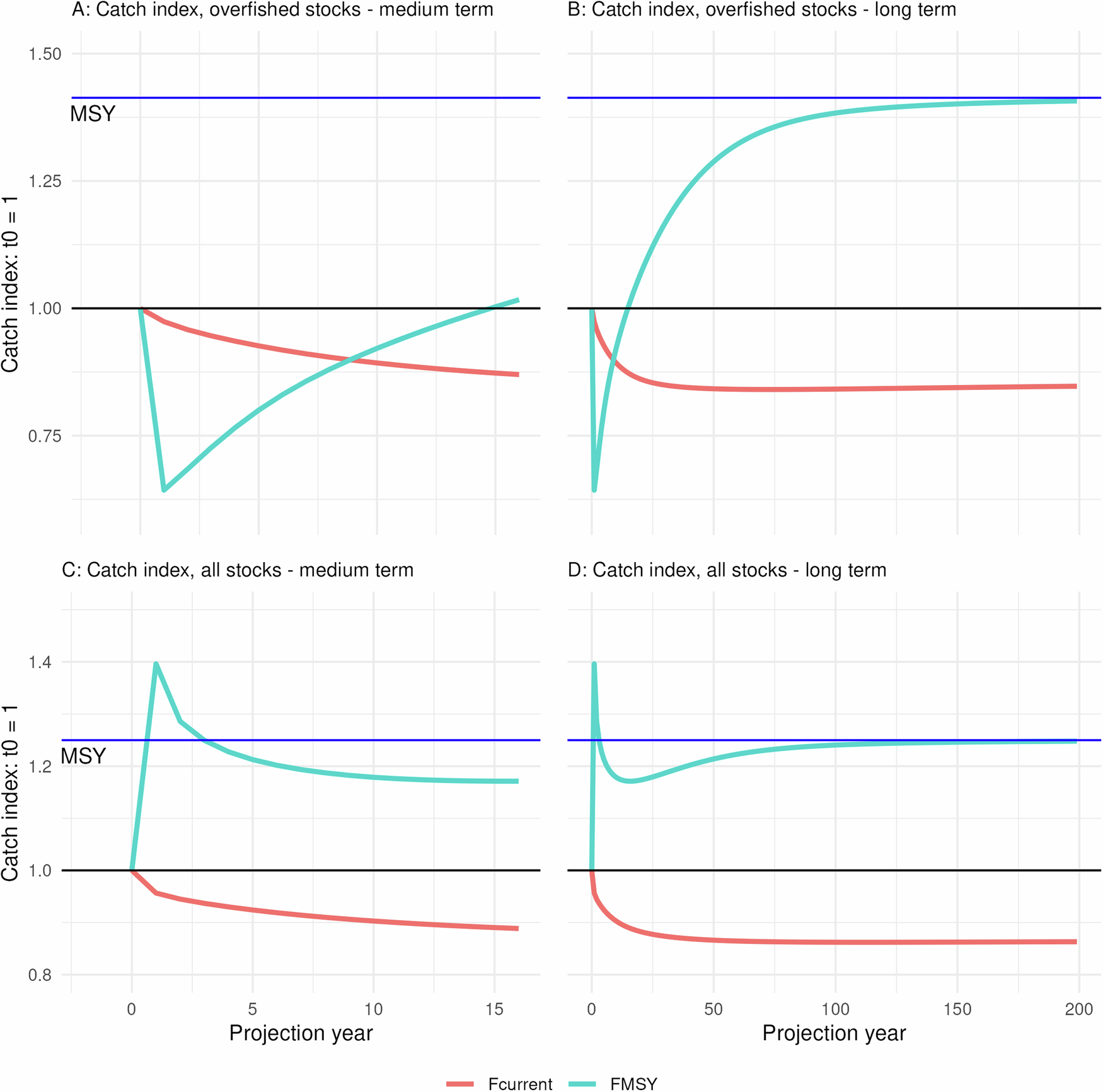

Fig. 1: Catch projections for different fishing pressures.
From: Introducing maximum sustainable yield targets in fisheries could enhance global food security
A Overfished stocks, medium term. B Overfished stocks, long term. C All stocks, medium term. D All stocks, long term. Note: For all panels. The catch projections are relative to the initial year (t0 = 1). FMSY (turquoise lines) denotes the catches resulting from applying MSY fishing pressure to the overfished stocks. Fcurrent (magenta lines) denotes the catches resulting from applying the most recent estimated fishing pressure to all overfished stocks. The blue horizontal lines represent the MSY catches relative to the initial ones.
