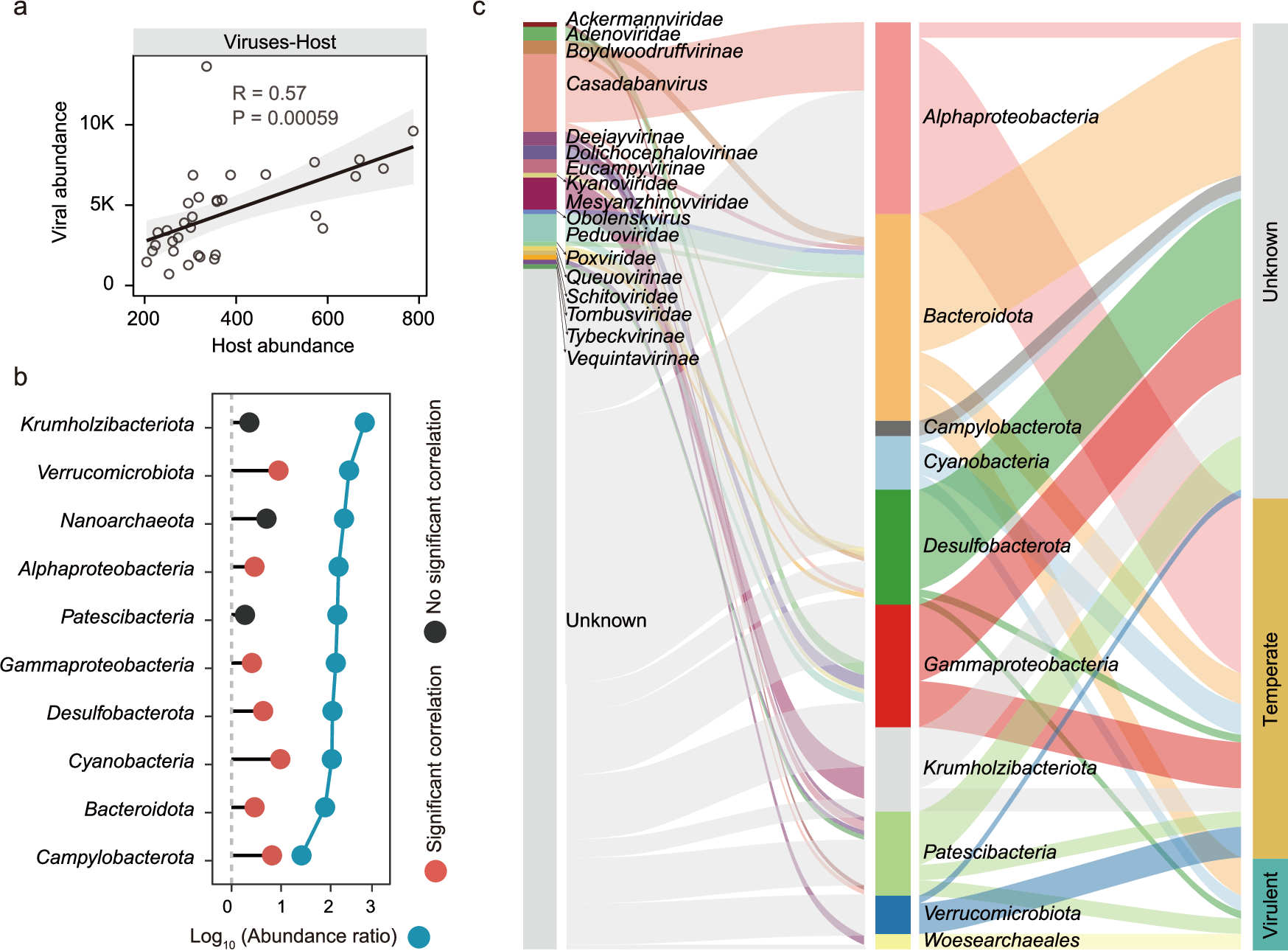

Fig. 4: Virus–host linkages and patterns of abundance.
From: Lake salinization on the Qinghai–Tibetan Plateau alters viral community composition and lifestyles
a Pearson correlation of the abundance between viruses and their hosts. b Virus–host abundance ratios (VHRs). Blue dots indicate log10 of VHRs. Red dots represent the significance of (P < 0.05, two-tailed test) of Pearson correlations. The statistical test used was two-tailed. Black dots represent non-significant correlations. The statistical test used was two-tailed. c The relationship between viruses, their hosts, and their respective lifestyles in the Sankey plot.
