Fig. 1: Spatial distributions of three types of soil erosion on the Qinghai-Tibetan Plateau.

From: Soil erosion and risk assessment on the Qinghai-Tibetan Plateau

Fig. 1: Spatial distributions of three types of soil erosion on the Qinghai-Tibetan Plateau.The alternative text for this image may have been generated using AI.

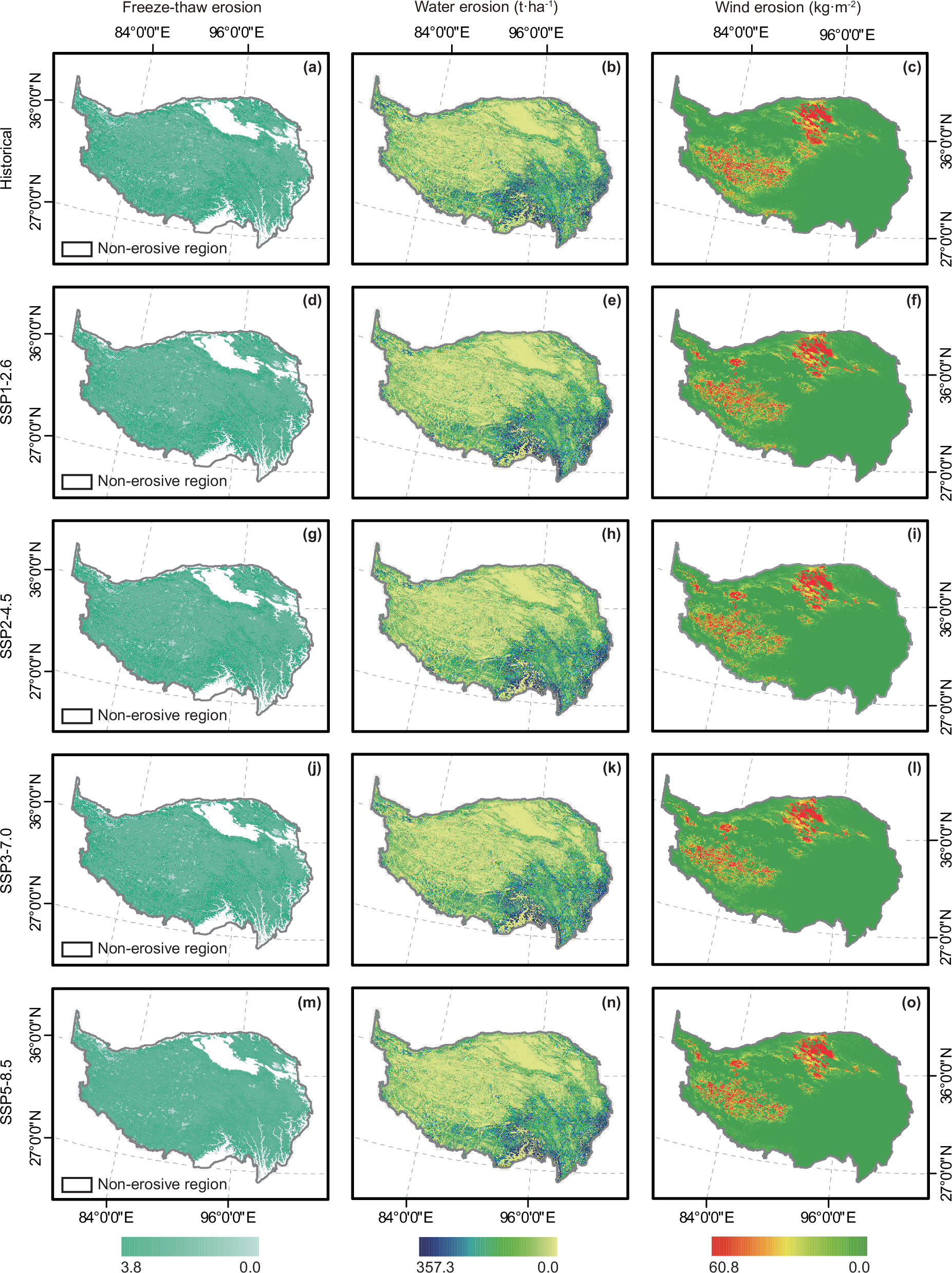

Spatial patterns of (a) freeze-thaw erosion, (b) water erosion, and (c) wind erosion for the historical period. Spatial distributions of soil erosion under four Shared Socioeconomic Pathway scenarios: d freeze-thaw erosion, e water erosion, and f wind erosion under SSP1-2.6; g freeze-thaw erosion, h water erosion, and i wind erosion under SSP2-4.5; j freeze-thaw erosion, k water erosion, and l wind erosion under SSP3-7.0; m freeze-thaw erosion, n water erosion, and o wind erosion under SSP5-8.5.
