Fig. 2: Temporal variations of three types of soil erosion on the Qinghai-Tibetan Plateau.

From: Soil erosion and risk assessment on the Qinghai-Tibetan Plateau

Fig. 2

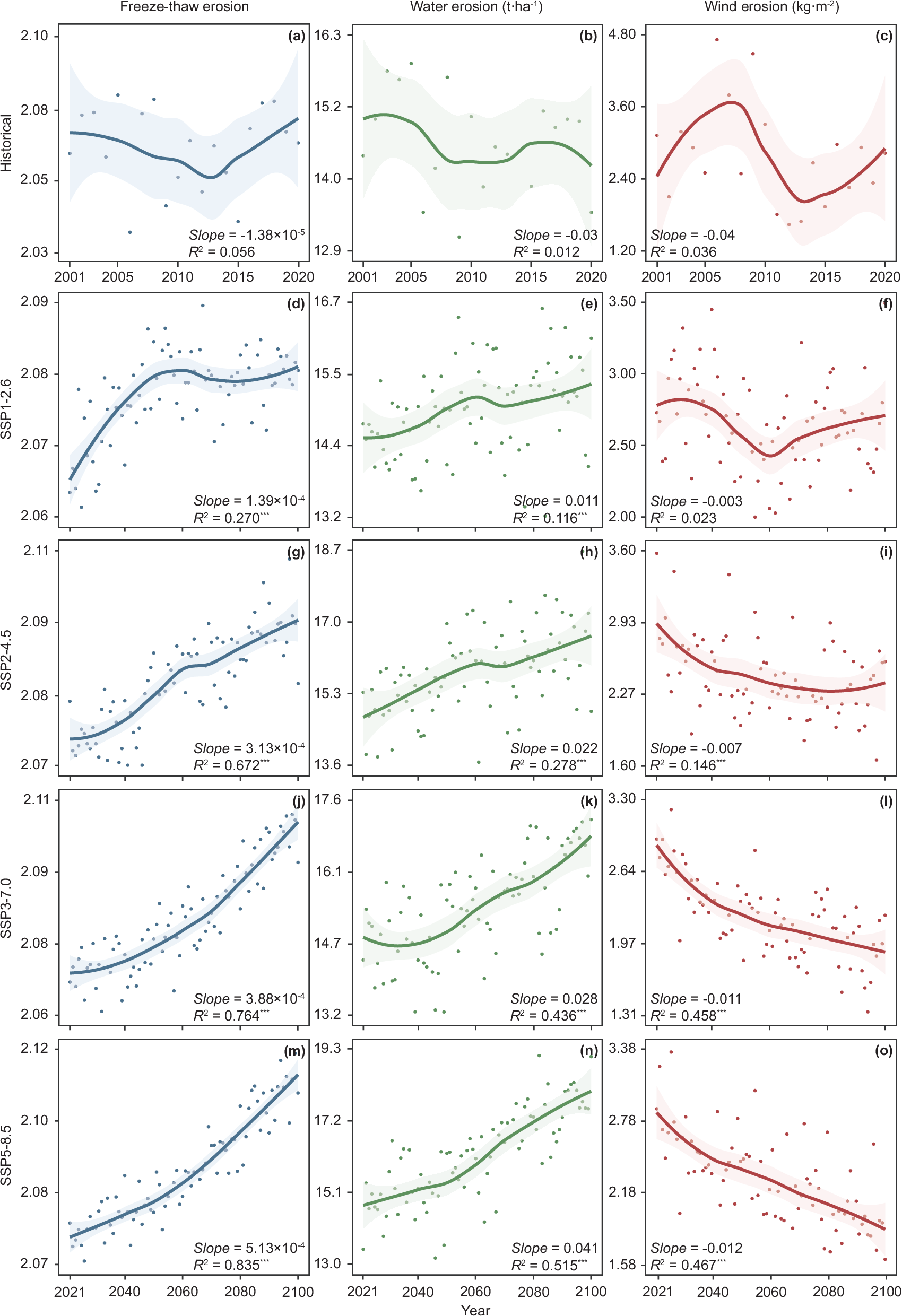

Temporal changes of (a) freeze-thaw eroison, (b) water eroison, and (c) wind erosion from 2001 to 2020. Temporal dynamics of soil erosion during 2021–2100 under four Shared Socioeconomic Pathway scenarios: d freeze-thaw eroison, e water eroison, and f wind erosion under SSP1-2.6; g freeze-thaw eroison, h water eroison, and i wind erosion under SSP2-4.5; j freeze-thaw eroison, k water eroison, and l wind erosion under SSP3-7.0; m freeze-thaw eroison, n water eroison, and o wind erosion under SSP5-8.5. Statistical significance is marked with the asterisk (*P < 0.05; **P < 0.01; ***P < 0.001). The shaded area represents the 95.0% confidence interval of the equation.
