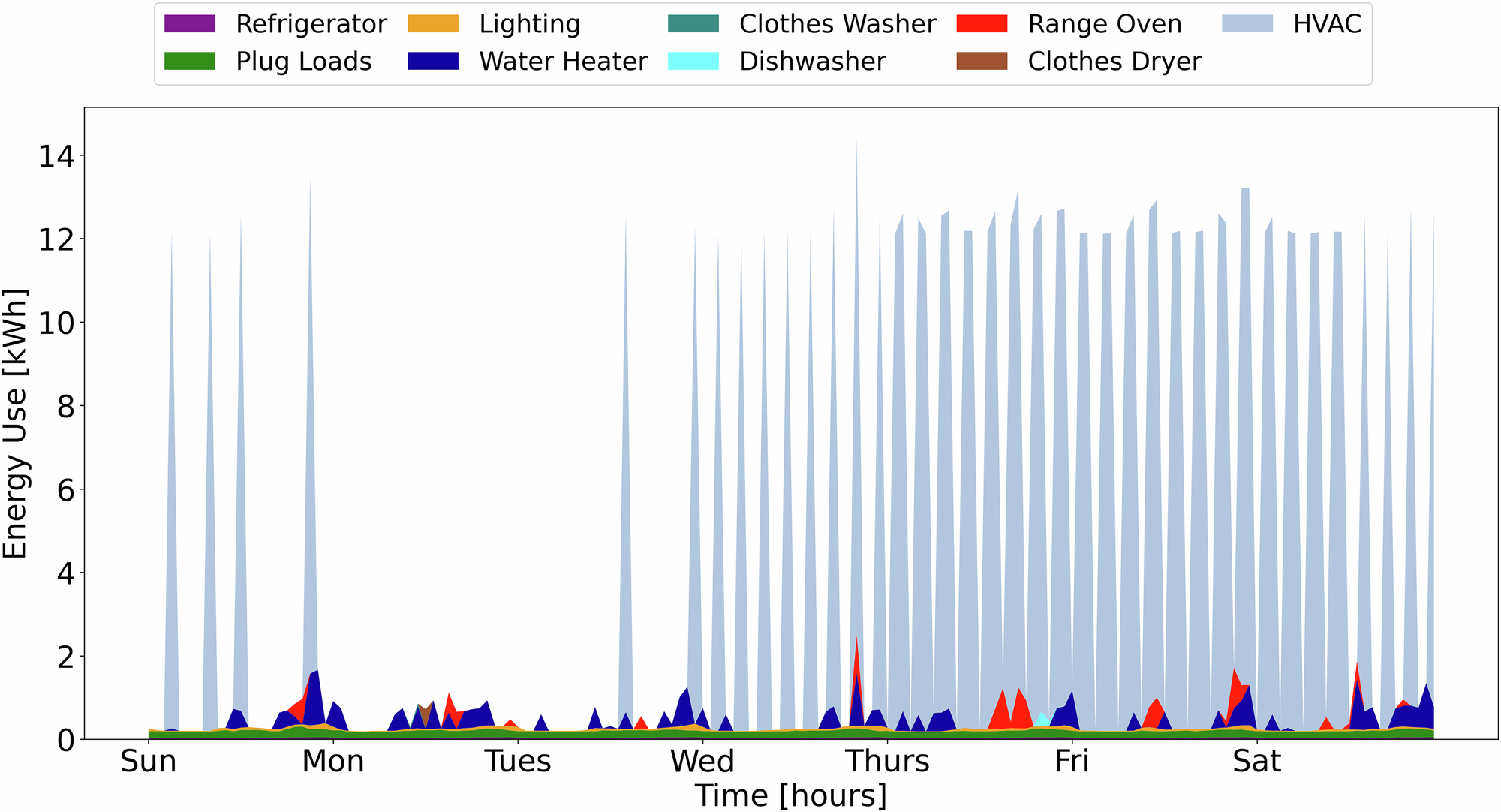

Fig. 3
Weekly household load profile based on ResStock data and GridLAB-D Simulated HVAC load: end use loads for representative household in mixed-humid climate for a week in May with relatively mild temperatures early in the week corresponding to decreased HVAC use.
