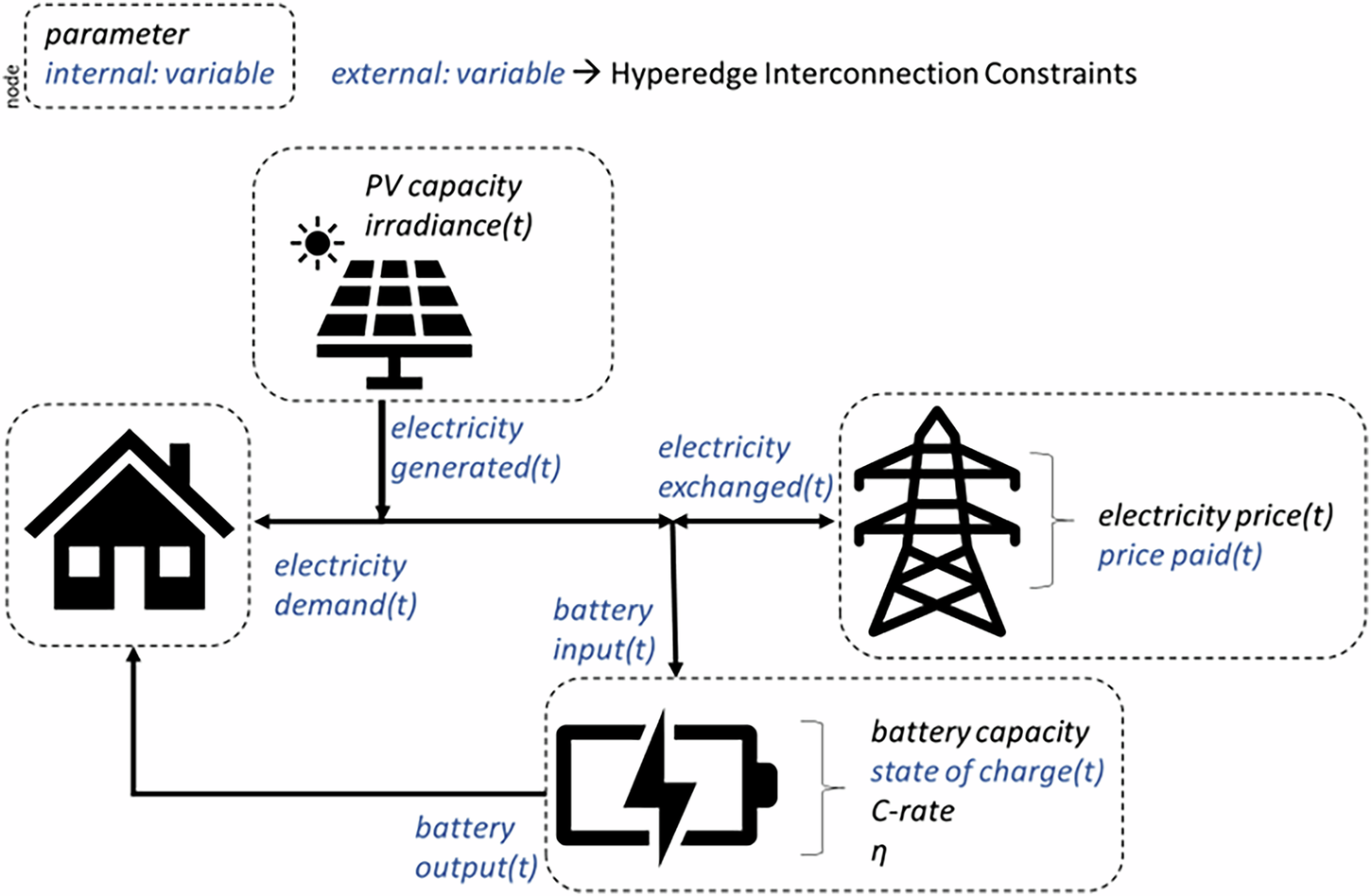

Fig. 5
GBOML optimization methodology: the relationship, or hyperedge interconnection constraints, between the nodes (dotted box) is described by the connecting arrows, parameter names (black), and internal and external variables (blue).
