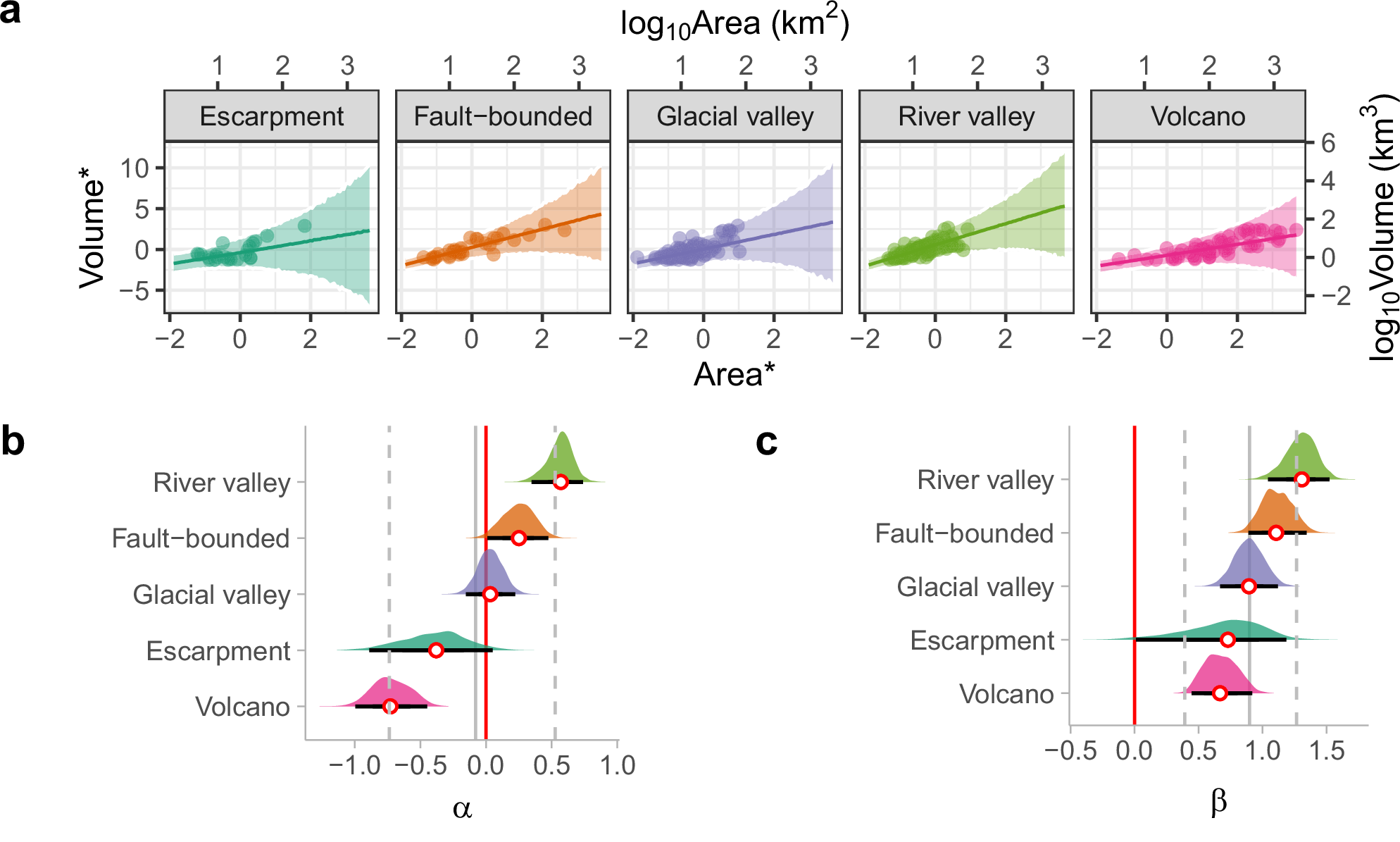

Fig. 3: Median landslide volume conditional on affected area grouped by topographic setting.
From: Size estimates of Earth’s largest terrestrial landslides informed by topographic setting
a Lines show posterior estimates of multi-level regression of median landslide volume conditional on landslide area with intercept αj, slope βj, and Laplace-distributed noise varying per topographic setting j; shades are 95% credible intervals of the posterior predictive distributions that broaden with landslide area. Asterisks refer to standardised data with zero means and unit standard deviations. b Posterior intercepts αj refer to standardised data, and are thus median volumes for mean (log-transformed) landslide areas in each setting; red vertical line is zero (all other symbols and colour codes as in Fig. 2). c Posterior estimates of slope βj.
