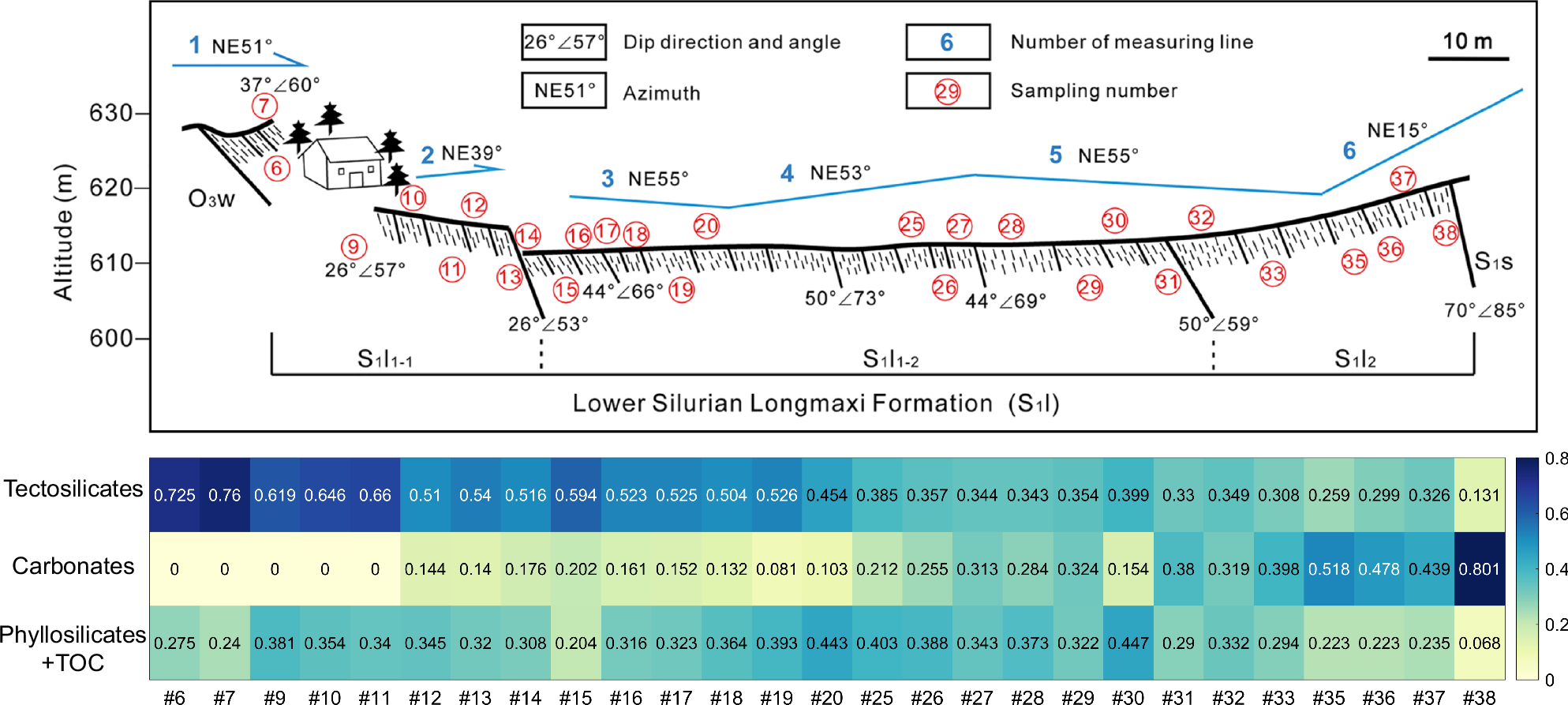

Fig. 1: Schematic diagram of fault heterogeneity from a mineralogical perspective.
From: Coupled evolution of seismicity and permeability in fault zones
Schematic geological section of the Longmaxi Formation and shale outcrop sampling locations, with a heat map of mineral components below to demonstrate mineral heterogeneity of a specific fault33.
