Introduction

Iron (Fe) is an essential element to nearly all living organisms. Whereas some bacteria may access Fe as a micronutrient, others derive energy from changes in its oxidation state1,2. The mineralization of Fe by magnetotactic bacteria (MTB) is one of the most intriguing biotic processes. A chain of magnetite (or greigite) crystals with a size range of 30–140 nm is generated inside the bacterial cell3,4. The crystals are often of stable single-magnetic domain with distinctive morphologies, indicating an intimate physiological control by MTB4,5, and can be preserved in sediment as magnetofossils that can be interpreted as a signature of ancient6,7 or possibly extraterrestrial life8. Recent culture experiments have highlighted that Fe isotopes undergo non-mass-dependent (NMD) fractionation during MTB-controlled magnetic Fe mineral formation9,10, making NMD Fe-isotope anomalies a new and more specific biosignature of MTB activity than the morphology of the magnetite crystals or the δ'56Fe signature alone (See Materials and methods for definitions). Nevertheless, despite numerous studies of Earth materials11,12, distinct NMD Fe-isotope fractionation has not been reported in natural systems.

MTB are ubiquitous prokaryotes in aquatic systems and commonly concentrated at the upper oxic-anoxic transition zone (OATZ) of sediment5,6. Reasons why NMD Fe-isotope fractionation has not yet been detected in natural systems include the fact that Fe is a major constituent of sediment or rocks and, thus, the “anomalous” Fe if present would have been diluted by the large “normal” Fe pool. Furthermore, early diagenetic reactions may erase evidence of NMD Fe-isotope fractionation.

Whereas bulk sediments or pyrite minerals seem hopeless in recording MTB-controlled NMD Fe-isotope fractionation, porewater Fe may preserve evidence of MTB activity. Amor et al.9,10,13 proposed that NMD Fe-isotope fractionation by MTB likely occurs when Fe redox reactions occur in the magnetosome membrane and the produced Fe(II) can then diffuse both into the magnetosome cytoplasm to produce magnetic Fe minerals and out of the cell to the growth medium. In nature, porewaters at the top OATZ could serve as a MTB “growth medium”. When the MTB produced Fe(II) accounts for a considerable proportion of the porewater Fe, NMD Fe-isotope fractionation may be detectable.

One potential target to detect NMD Fe fractionation is porewater in which MTB thrive and dissolved Fe is in limited supply. Lake Aha, in southwestern China, hosts an MTB-thriving zone at the top of the OATZ (Supplementary Fig. 1) found near the organic-rich sediment-water interface during the winter season when bottom waters are oxygenated14,15,16,17. The abundance and differential reactivity of electron acceptors such as Mn(IV), Fe(III), NO3-, and SO42- in the lake sediments or water column generate diverse vertical redox zonation profiles within the sediment and, therefore, including porewater profiles that may provide an ideal setting to test our hypothesis. Indeed, we have discovered distinct NMD Fe-isotope fractionation in some of these porewater samples. We further examined the vertical distribution of electron acceptors in the porewaters at two sites in the same lake to investigate the preservation mechanism as well as origin of these large, NMD porewater Fe-isotope signatures.

Sampling site

Lake Aha have been shown to be a seasonally stratified lake by many recent studies14,15,16,17 (Fig. 1). During summer stratification, dissolved O2 is sufficiently removed from the bottom strata of Lake Aha and a pseudo redox boundary (DO, 2 mg.L−1) is established over the hypolimnion (e.g., 10 m). The dissolved O2 is as low as 0.1–0.2 mg L−1 near the sediment-water interface. In winter, after the fall overturning, the water column is well mixed with dissolved oxygen concentrations reaching as high as 4–9 mg L−1 near the sediment-water interface17,18. Meanwhile, bacterial sulfate reduction, Mn oxides reduction and dissimilatory iron reduction prevail in the sediments, a well-established OATZ is developed near the water/sediment interface with a ca. 0.5 cm reddish-brown surface layer in winter15,16, where MTB thrived (Supplementary Fig. 1). Several mine dumps drain into the lake after the acidic effluents have been neutralized with lime18, resulting in an abundance of reactive oxidants (electron acceptors, e.g., Fe oxides, Mn Oxides and SO42-) in the water column and in the organic carbon-rich (2.5–4.5 OC%19) sediment of the lake. Youyu river is one of the tributaries drained with the mine dumps18. Fe and Mn were decoupled along the water flows from the shore (Youyu tributary) to downstream, near the lake center (Liangjiangkou) since the oxidation of Fe2+ by dissolved O2 is nearly instantaneous, whereas the oxidation of Mn2+ by O2 is relatively slow20,21,22,23, resulting in a higher content of MnT and higher MnT/FeT at the Liangjiangkou station than that of Youyu station15,24. Short (<25 cm) sediment cores with an undisturbed sediment-water interface were recovered using a gravity corer, respectively, at Liangjiangkou station and Youyu station (Fig. 1).

Fig. 1: Map of Sampling locations in Lake Aha, Guizhou, southwestern China.
Fig. 1: Map of Sampling locations in Lake Aha, Guizhou, southwestern China.
Full size image

A Sampling sites of the two sediment cores, Liangjiangkou and Youyu stations in Lake Aha. B Photo of the sediment core sampled in this study, with an undisturbed sediment-water interface and an oxic surface layer, where a well-established OATZ was developed.

Results

Porewater Fe, Mn, SO4 2- concentrations in the OATZ

At Liangjiangkou, porewater Fe concentrations ([Fed]) are low, ranging from 1.2 to 2.9 µM over the top ~6.5 cm, below which they increase linearly until they reach a relatively constant value (100–120 µM) beneath 9.5 cm (Fig. 2A-a and Supplementary Table 1-A). Porewater NO3− concentrations were below the detection limit (3 µM) in the top 0–1.5 cm, although its concentration in the overlying water column was ~98 µM. Porewater Mn concentrations increase rapidly from below detection limit in the overlying waters to a peak value of 223 µM 1.5 cm below the sediment-water interface. They then decrease gradually with depth, reaching less than 5 µM below ~12.5 cm (Fig. 2A-a and Supplementary Table 1-A). Porewater SO42− concentrations decrease steadily from 2.46 mM at the sediment-water interface to a minimum of 0.19 mM at 8.5 cm (Fig. 2A-c and Supplementary Table 1-A).

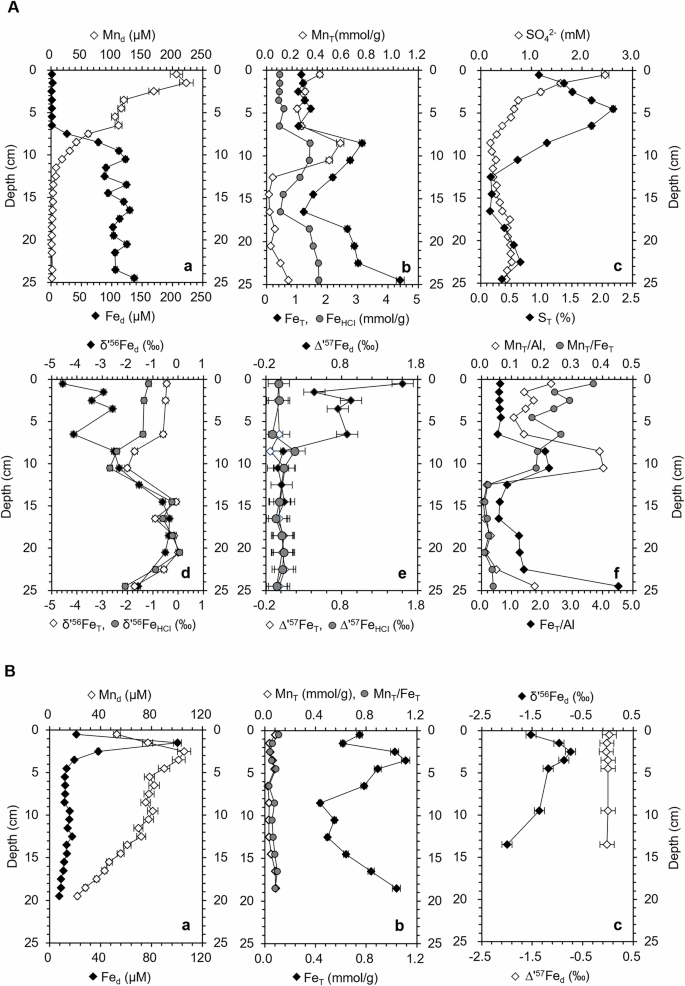

Fig. 2: Vertical chemical and Fe-isotope profiles of porewaters or sediments of Lake Aha.
Fig. 2: Vertical chemical and Fe-isotope profiles of porewaters or sediments of Lake Aha.
Full size image

A Liangjiangkou station. B Youyu station. Subscript “d” stands for dissolved (porewater) species, subscript “HCl” for Fe extracted by the 1 M HCl method, and subscript “T” for elements in the bulk sediments. Data labels are identified by a symbol to their left and adjacent to their corresponding horizontal axis. Errors bars for Fe, Mn, SO42- and ST are ±3%, ±5%, ±3% and ±1.5%, respectively, while error bars for δ'56Fe, δ'57Fe, and Δ'57Fe are ±0.10‰, ±0.16‰ and ±0.14‰ (2 SD), respectively.

At Youyu, porewater Fe concentrations increase rapidly below the sediment-water interface, peak at ~100 μM by 1.5 cm and decrease to less than 20 μM below 3.5 cm (Fig. 2B-a and Supplementary Table 1-B). They are much higher than in the Liangjiangkou sediment (Supplementary Fig. 2A). In contrast with the porewater profiles at Liangjiangkou, the porewater Mn concentration at Youyu peaks at 2.5 cm, close to but slightly deeper than the porewater Fe peak. According to measurements carried out using the Diffusive Gradients in Thin Films Technique (DGT), porewater sulfide concentrations peak below 8 cm25.

Triple Fe isotope compositions (δ'56Fed and Δ'57Fed) of porewater Fe in the OATZ

At Liangjiangkou, porewater δ'56Fed values in the top 6.5 cm range from −4.57‰ to −2.59‰, with the most negative value located in the top-most layer (0–0.5 cm) (Fig. 2A-d and Supplementary Table 2-A). Porewaters extracted beneath 6.5 cm have δ'56Fed values ranging from −2.53 to −0.35‰, all less negative than those at shallower depths. In the top 6.5 cm, porewater ∆'57Fed (See Materials and methods for definitions) ranges from +0.44‰ to +1.60‰, displaying large NMD Fe-isotope anomalies. Beneath 6.5 cm, the ∆'57Fed remains between −0.06 and +0.04‰ (Fig. 2A-e and Supplementary Table 2-A), displaying mass-dependent triple Fe-isotope fractionation within the uncertainty of the measurements (<±0.14‰, 2 SD) (Supplementary Methodology and Supplementary Fig. 3). There is a good negative correlation (r2 = 0.64) among the porewater data in the top 6.5 cm of the core in Δ'57Fed-δ'56Fed space (Fig. 3B). Data of top layer porewaters (≤6.5 cm) fall into one cluster with lower δ'56Fed and positive Δ'57Fed under Fe-limited conditions, while data of deeper layer porewaters (>6.5 cm) fall into another cluster with higher δ'56Fed and no distinct NMD 57Fe signature was observed under Fe-rich conditions (Fig. 3C, D). At Youyu, porewater δ'56Fed ranges from −2.0‰ to −0.74‰ between 0.5 and 13.5 cm, with no distinct NMD 57Fe anomaly (Fig. 2B-c and Supplementary Table 2-B).

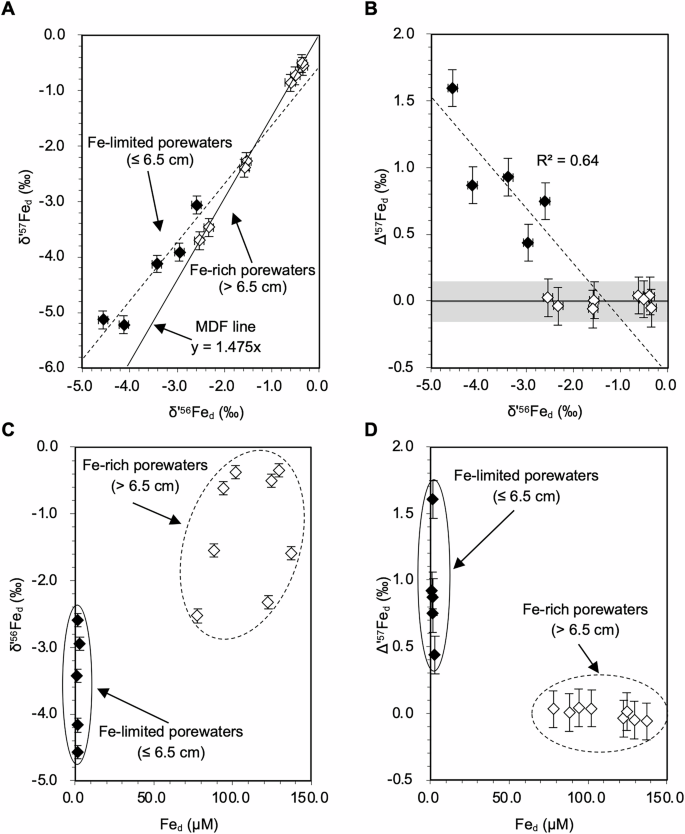

Fig. 3: Isotopic compositions of porewater Fe and their relationships with each other and with the dissolved Fe concentrations of the Liangjiangkou core.
Fig. 3: Isotopic compositions of porewater Fe and their relationships with each other and with the dissolved Fe concentrations of the Liangjiangkou core.
Full size image

A δ'57Fed versus δ'56Fed for all data from the top ~25 cm of the core. Group 1 data (hollow) were from depths below the Mn reduction zone (>6.5 cm) and they fall closely along a high-temperature-limit mass-dependent fractionation (MDF) line defined by a slope of 1.475 (solid line). Group 2 data (filled) were from the top 6.5 cm (≤6.5 cm) of the core and display significant deviations from the MDF line. B ∆'57Fed versus δ'56Fed for all data from the top ~25 cm of the core with the ∆'57Fe being more positive with decreasing δ'56Fe porewater values in the top 6.5 cm (R2 = 0.64). The gray horizontal band (±0.14‰, 2 SD) covers samples with no distinct NMD Fe isotope signature. A linear least-squares regression line through samples of Group 2 intersects with samples of Group 1 at a δ'56Fe of −1.3‰. C δ'56Fed versus Fed diagram. Data of Fe-limited porewaters (≤6.5 cm) fall into one cluster with δ'56Fed lower than those of Fe-rich porewaters (>6.5 cm) in another cluster. D ∆'57Fed versus Fed diagram. Data of Fe-limited porewaters (≤6.5 cm) fall into one cluster with positive ∆'57Fed while those of Fe-rich porewaters (>6.5 cm) with no distinct NMD Fe isotope signatures fall into another cluster. Error bars for δ'56Fe, δ'57Fe, and Δ'57Fe are ±0.10‰, ±0.16‰ and ±0.14‰ (2 SD), respectively.

Other concentrations and Fe isotope data in the OATZ

FeT/Al can be used to determine their authigenic enrichment since Al is conservative detrital element while Fe is redox sensitive element and reactive Fe could be reduced and precipitated as authigenic Fe minerals, e.g., FeS, under suboxic and anoxic conditions26,27,28. Similarly, Mn could undergo diagenetic remobilization and reprecipitate as Mn oxides under suboxic and oxic conditions near the sediment surface29. At Liangjiangkou, bulk sediment Fe (FeT), Mn (MnT), S (ST), MnT/Al, FeT/Al, MnT/FeT, and δ'56FeT as well as δ'56FeHCl (i.e., 1M-HCl extractable) profiles provide additional constraints on the redox zonation in the upper OATZ. Some of the outstanding features are highlighted here. (1) FeT is nearly constant (from 1.05 to 1.45 mmol/g) within the top 6.5 cm of the core, peaks (3.14 mmol/g) at 8.5–10.5 cm, and averages twice that content in the deeper section than in the top 6.5 cm (Supplementary Table 1-A). The vertical profiles of FeT/Al, MnT/Al, and MnT display similar patterns, with constant and low values in the top 6.5 cm of the sediment, peaking at 8.5–10.5 cm, and decreasing to low or even lower values than in the top 6.5 cm below (Fig. 2A-b, f and Supplementary Fig. 2). (2) MnT/FeT peaks in the topmost 0.5 cm, decreases progressively downcore and becomes very small (average at 0.02) below 10.5 cm (Fig. 2A-f). This vertical pattern broadly mimics the Δ'57Fed profile and mirrors that of δ'56Fed over the entire ~25 cm long core (Fig. 2A-d, e). (3) ST is higher than 0.5% in the top 10.5 cm of the core, but lower beneath 10.5 cm (Fig. 2A-c). 4) Both δ'56FeT and δ'56FeHCl display a narrow range of values, from −0.46‰ to −0.60‰ and from −1.17‰ to −1.39‰, respectively, in the top 6.5 cm, and show a notable negative excursion (to −1.72‰ and −2.02‰ and to −2.42‰ and −2.70‰, respectively) at 8.5 and 10.5 cm before they return to nearly identical and constant values at depth (Fig. 2A-d and Supplementary Table 2-A) with no discernable NMD 57Fe anomaly throughout the Liangjiangkou core (Fig. 2A-e). At Youyu, MnT is much lower (up to one order of magnitude at some depths) than at Liangjiangkou, with an average MnT/FeT of 0.07 and 0.29, respectively, in the top 3.5 cm (Fig. 2B-b, Supplementary Table 1-B and Supplementary Fig. 2A).

Discussion

An unusual redox zonation resulting in low porewater Fe concentrations at the top OATZ

MTB require both iron and lower level of oxygen to produce their intracellular nano-sized magnetic crystals, limiting the optimum MTB growth zone to the upper part of the OATZ in a water column30,31, soil32, or sediment33,34. In many organic-rich sediments, Fe(III) reduction inevitably leads to the accumulation of porewater Fe(II) in the upper OATZ but, at the Liangjiangkou station in Lake Aha, a set of environmental factors have combined to generate Fe-limited porewaters in the top 6.5 cm of the lake sediments.

In a classical, thermodynamically-controlled redox sequence, organic matter is first oxidized by dissolved O2, followed by nitrate, Mn (IV), Fe(III), and then sulfate22,35,36,37 (Fig. 4). At Liangjiangkou, a distinct redox zonation developed within the sediment, as indicated by the vertical solid and solute profiles (Fig. 2 and Supplementary Table 1-A). At this site, the redox zonation started with O2 and nitrate being used as the electron acceptors in the top 0–1.5 cm of the sediment, followed by Mn-oxide reduction and sulfate reduction at 0.5–8.5 cm, whereas Fe-oxide reduction was only apparent below 7.5 cm (Fig. 4). This redox zonation differs from the classical thermodynamic sequence in that Fe(III) reduction does not occur immediately beneath the Mn(IV) reduction zone but after sulfate reduction has been initiated. The apparent “violation” of the thermodynamic sequence must be driven by kinetic factors, e.g., availability of degradable organic carbon, reactivity of Fe(III) minerals as well as energetic factors pertinent to the microbial ecology and physiology38,39. It is noteworthy that the low and nearly constant porewater Fe concentrations (1.2–2.9 µM) average only ~3 times of the detection limit (0.5 μM) in the top 6.5 cm, much lower than those observed at greater depth (average 110 µM) (Fig. 2A-a, Supplementary Fig. 2 and Supplementary Table 1-A). Note, however, that the measured porewater Fe could include soluble organic-Fe(III) species and even some colloidal magnetite grains in addition to soluble Fe(II)40,41.

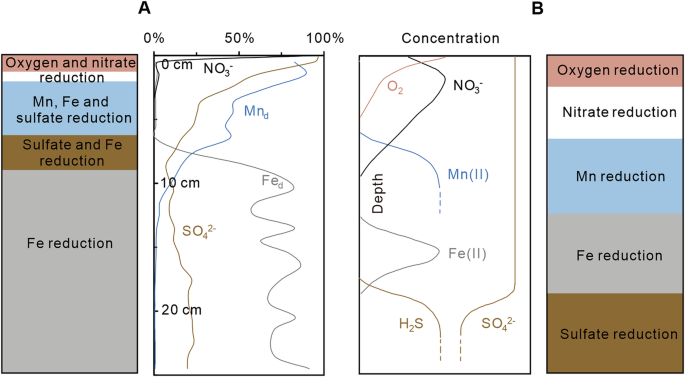

Fig. 4: Redox zonation models.
Fig. 4: Redox zonation models.
Full size image

A A model of the redox zonation and the consequent Fe-limited porewaters in the top 6.5 cm at the Liangjiangkou station core, Lake Aha. Individual ion concentrations are normalized to their respective, highest concentrations (NO3− = 100 µM; Mnd = 250 µM; Fed = 150 µM; and SO42−- = 2.6 mM) on the horizontal axis. Note the overlap of the sulfate reduction zone with the Mn and Fe reduction zones. B A classic thermodynamics-based redox zonation, taken from Froelich et al.35 and Madison et al.37 for coastal marine sediment. Scales of the x and y axes in B are arbitrary.

We believe that the dearth of porewater Fe in the top 6.5 cm of the Liangjiangkou core reflects the combination of three factors that contrast with profiles in the Youyu core: (1) Delayed reductive dissolution of Fe(III) minerals because of their limited abundance and reactivity (Fe(III)HCl, Fe(III)HCl/FeHCl, Supplementary Fig. 4 and Supplementary Table 1-A) within this depth interval; (2) Accumulation of porewater Fe(II) in the top OATZ inhibited by the abundance of solid Mn(IV) phases (MnT, see Fig. 2A-b, B-b and Supplementary Tables 1-A, B). In winter, after the fall overturning, Mn(IV, III) oxides precipitated at the sediment-water interface forming a Mn-rich layer in the top OATZ15,17,42 (MnT and Mn/Al, Fig. 2A-b, f and Supplementary Table 1-A). Mn oxides can readily oxidize Fe(II) to an amorphous Fe(III) oxide22,43, as indicated by the elevated [Mnd] (see Fig. 2A-a, B-a); (3) The very early onset of sulfate reduction (Fig. 2A-c) and sequestration of Fe(II) as insoluble and bio-inaccessible sulfides (Fe(II)HCl, Supplementary Fig. 4; ST, Fig. 2A-c), which is consistent with the results in previous studies19,44 since sulfate reduction prevails in the top sediment layers15,16,45. In addition, the early onset of sulfate reduction in the OATZ would prevent the accumulation of porewater Fe(II) and its upward diffusion to the top of the OATZ where it could be oxidized and Fe(III) phases could be diagenetically recycled. This interpretation is supported by the high porewater Fe concentrations observed below 11 cm, i.e., beneath the sulfate reduction zone and by the nearly constant FeT/Al that is similar to that of the settling particulates18 throughout the core, except within the 8–11 cm sediment interval where diagenetically remobilized Fe is accumulating (Fig. 2A-a, f and Supplementary Table 1-A). It appears that porewater Fe and Mn are precipitated out at 8–11 cm, likely in the form of FeSx with Mn (II) strongly adsorbed to FeS46,47,48.

Interpretation of the Liangjiangkou redox zonation is only possible by considering both thermodynamic and kinetic constraints among the competing microbial consortiums49 but impractical at this time as many kinetic (e.g., Michaelis-Menten) parameters are either uncalibrated in controlled experiments or untested in natural environments. Qualitatively, the solid and solute distributions in the Liangjiangkou sediment point to a consistent scenario, i.e., porewater Fe concentrations are limited in the top 6.5 cm of the sediment due to the limited abundance and reactivity of Fe(III) minerals (low Fe(III)HCl and Fe(III)HCl/FeHCl), the abundance of Mn(IV) as well as the early onset of sulfate reduction and precipitation of iron sulfides (elevated Fe(II)HCl and ST).

Anomalous isotopic composition of porewater Fe in the top OATZ: an Fe-limited model

The negative correlation between Δ'57Fed and δ'56Fed (Fig. 3B) in the top 6.5 cm of the Liangjiangkou sediment can be explained by a two-endmember mixing model. In the mixing model, endmember 1 would be FeHCl with a δ'56Fe of −1.3‰ and a Δ'57Fe of 0.0‰, as given by the intercept of the linear least-squares regression line in Fig. 3B, and endmember 2 would be the product of MTB-controlled Fe(III) reduction with a δ'56Fe < −4.57‰ and a Δ'57Fe > +1.60‰, as indicated by the Group 2 data array in Fig. 3B. This pattern fits well with the proposed model9,10 in which Fe in the growth media, likely released from MTB cells, has a more negative δ'56Fe value than the source Fe or FeHCl. It also implies, as observed, that the growth media should yield a positive Δ'57Fe rather than a zero Δ'57Fe value for the source Fe or FeHCl. Our observed trends in Δ'57Fed-δ'56Fed space suggest that NMD Fe-isotope fractionation during the MTB-controlled Fe(III) reduction to Fe(II) in the cell’s lysate favors the production of lighter Fe isotopes, but the δ‘57Fe signature is higher than the mass-dependent rule would dictate. In addition, the magnetosome crystals, bearing lower δ'56Fe but positive ∆'57Fe values, could release into the porewater upon cell lysis because of the small sizes of these crystals (usually, 30–140 nm in size4,50), lower than the 0.45 μm pores. These colloidal magnetite grains are soluble in acidic conditions, could also “contaminate” the porewater samples.

This NMD fractionation mechanism requires Fe-limited porewaters in order to preserve the NMD signatures, i.e., to avoid dilution of the NMD signature by Fe(II) resulting from dissimilatory Fe(III) reduction. This mechanism could be tested by measuring the triple Fe isotope composition of the MTB-generated magnetite. In this mixing model, the Fe(III) to Fe(II) reduction mechanism proposed by Amor and colleagues9,10 would yield a positive Δ'57Fe for the magnetite. The nucleus-electron spin-pairing in 57Fe is likely responsible for the observed NMD Fe- isotope fractionation9,51, a hypothesis that would generate no NMD anomaly in the corresponding δ'58Fe values due to the lack of nuclear spin in 58Fe, 56Fe, or 54Fe. Such a test would require a scaled-up sampling protocol due to the unusually low porewater Fe concentrations in the top 6.5 cm of the Liangjiangkou core.

An array of element/ion concentrations and triple Fe isotope data provide strong and consistent support for this Fe-limited model. (1) The three solid samples in the top 6.5 cm of the Liangjiangkou sediment core have an average δ'56FeHCl of −1.3‰ and δ'56FeT of −0.5‰ (Supplementary Table 2-A), in agreement with the expected FeHCl isotopic fractionation relative to the parent Fe(III) oxides52. (2) The FeT/Al peaked at 8–11 cm below the sediment-water interface, where the mobile Fe was sequestered as sulfides upon diffusion from the underlying reducing sediments and where the most negative δ'56Fe values for bulk sediment (−1.72‰ to −2.02‰) and for FeHCl (−2.42‰ to −2.70‰) were observed (Figs. 2A-d, f and Supplementary Table 2-A). (3) The δ'56Fe in the top 6.5 cm of the bulk sediment (−0.60‰ to −0.46‰) and HCl-extract (FeHCl = −1.39‰ to −1.17‰) vary over narrow ranges (Fig. 2A-d and Supplementary Table 2-A), suggesting that the top 6.5 cm of the sediment behaves as a nearly closed system with respect to Fe remobilization, without substantial Fe being shuttled to or from deeper sediments.

The proposed Fe-limited model predicts that porewater triple Fe-isotope compositions will display mass-dependent fractionation if the porewater Fe content is high in the OATZ. The Youyu station data provide a test of this prediction. Porewater Fe concentrations at Youyu were 1–2 orders of magnitude higher than at Liangjiangkou in the top OATZ (Supplementary Fig. 2A). Both porewater Fe and Mn reached peak concentrations close to the surface (Fig. 2B-a and Supplementary Table 1-B) and displayed a peak porewater sulfide content below 8 cm25, a redox zonation that closely mimics the classical thermodynamic sequence. All 7 porewater Fe samples measured in the top 13 cm of this core exhibit mass-dependent Fe-isotope signatures (Fig. 2B-c and Supplementary Table 2-B). The MnT content in the Youyu sediment is, on average, 5 times lower than in the top 6.5 cm of the Liangjiangkou sediment core (Supplementary Fig. 2A) where NMD Fe-isotope signatures are detected in porewater Fe.

Only a few triple Fe-isotope measurements of porewater Fe can be found in the literature53,54,55,56,57. None of these studies have reported NMD Fe- isotope anomalies. A common feature is that the porewater Fe concentrations in the top of the OATZ of all the studied sites were ~30 to 1000 times higher than at the Liangjiangkou station in Lake Aha. For example, the two marine sediments off the coast of California display a nearly classical redox zonation, show similarly negative δ'56Fe values of porewater Fe as those in Liangjiangkou but no porewater Fe NMD anomaly56. Hence, we believe that the low porewater Fe concentrations in the first 6.5 cm of the sediment in the Liangjiangkou core and, therefore, the large fraction of the porewater Fe pool involved in the MTB-controlled Fe redox cycling within this interval allows for the preservation of the NMD Fe-isotope fractionation signature.

Implications for geological records

If the origin of the NMD Fe-isotope signatures is the MTB-controlled Fe redox cycling and transport, we must first look for environments where MTB thrive and where the accumulation of porewater Fe is minimal. The presence of bioavailable organic matter would be required to sustain these communities. If the joint effect of abundant Mn (IV), early onset of sulfate reduction and consequent sequestration of Fe(II) as solid sulfides is the key to maintain porewater Fe concentrations below 3 µM at the top of the OATZ, both Mn(IV) and SO42− must be available in the organic-rich sediment. These two prerequisite conditions may not be hard to meet in modern sedimentary environments. Future efforts can be directed at finding other natural environments where NMD Fe-isotope fractionation can be documented and conditions conducive to the process as well as preservation of the signal can be identified. Porewaters are not preserved in the rock record but the isotopic composition of porewater-Fe may be recorded in some authigenic minerals (e.g., carbonate, chert, and barite) precipitated from Fe-limited porewaters where MTB thrived.

Despite some uncertainties on Fe-isotope fractionation and reservoir-transport effects within and among porewater systems, the vertical distribution of electron acceptors, their reaction products, and Fe-isotope data in Lake Aha sediment profiles paint a consistent scenario: (1) Large NMD Fe-isotope fractionation resulting from the activity of MTB can be preserved in the porewater Fe at the top of the OATZ; (2) A prerequisite for the preservation of the NMD Fe-isotope signature in porewater is its low Fe concentration in MTB-thriving sediments, a condition that can be facilitated by the presence of a high Mn content and an early onset of microbial sulfate reduction in the top OATZ of the sediment.

Materials and methods

All samples were handled and treated following standard protocols established in the community (see references below and further details in Supplementary Methodology).

Sample handling

All polypropylene (PP) tubes and bottles used in the field and in the laboratory were soaked for 48 h in a 6 M HCl bath and subsequently rinsed repeatedly with 18.2 MΩ Milli-Q water (no HCl rinsing for sulfate measurement). Sediment cores were taken from a boat using a polymethylmethacrylate tube with a 5.9 cm internal diameter. Within 3 h of recovery, the lake sediment cores were sectioned at 1-cm intervals on shore in N2-filled glove bags and kept in 50 mL screw-cap PP centrifuge tubes. The porewater was then extracted by centrifugation at about 2000 × g for 20 min. The centrifuge tubes were returned to a N2-filled glove bag where the supernatant was filtered through a 0.45 µm Millipore HA membrane with a 50-mL plastic syringe. Filtered porewaters for metal ion concentrations and Fe isotope analyses were acidified using ultrapure HNO3 to pH < 2 whereas those for sulfate concentration measurements were diluted with Milli-Q water. The solid sediments in the 50-mL centrifuge tubes were freeze-dried and ground into powder (<200 mesh) with an acid-cleaned agate mortar and pestle.

Analysis of sediment and porewaters

The freeze-dried sediments were reacted with a 1 M HCl solution at room temperature for 16 h to determine the amount of reactive Fe, following the method described by Huerta-Diaz and Morse58. Aliquots of porewaters, HCl extracts and bulk sediments were digested with aqua regia and concentrated HF and then purified twice using an AGMP-1 anionic resin (Bio-Rad, 100-200 mesh, chloride form), according to an established protocol (See Supplementary Methodology). Porewaters as well as the HCl-extracts and digested-sediment solution Fe, Mn, and Al concentrations were determined at the Chinese Academy of Geological Sciences by ICP-AES (Thermo Fisher, TJA-IRIS-Advantage) with a detection limit of 0.5 µM, 0.2 µM, and 3 µM, or uncertainty of ±3%, ±5%, and ±7%, respectively. Porewater NO3− and SO42− concentrations were determined by ion chromatography (Dionex, ICS-90) at the Chinese Academy of Sciences laboratory with an uncertainty of 3% and respective detection limits of 2 µM and 3 µM. Total S was determined using an elemental analyzer (Wanlianda, CS902) with a precision better than 0.1% and an uncertainty of 1.5%.

Triple Fe-isotope compositions

Fe isotope measurements were conducted on a Neptune MC-ICP-MS (Thermo-Fisher, Germany) at the Water Quality Centre, Trent University (Canada) and on a Neptune Plus MC-ICP-MS (Thermo Fisher, Germany) at the Beijing Createch Testing Technology Co., Ltd. (China). The purified sample solutions were introduced into an argon plasma by a peristaltic pump with an ion beam of 9 V on 56Fe for a 3.0 mg/L Fe solution on the Neptune Plus MC-ICP-MS or by a Cetac Aridus Desolvating nebulizer with an ion beam of 12 V on 56Fe for a 0.2 mg/L Fe solution on the Neptune MC-ICP-MS. All measurements were carried out in high-resolution mode, a mass resolving power (m/∆m) of ~9000 for the Neptune MC-ICP-MS and ~7000 for the Neptune Plus MC-ICP-MS, so that the isobaric interferences (e.g., 40Ar14N+ on 54Fe+, 40Ar16O+ on 56Fe+ and 40Ar16OH+ on 57Fe+) were resolvable (Supplementary Fig. 5). The standard-sample bracketing (SSB) method was applied with the reference Fe standard IRMM-014 throughout the study to minimize instrumental mass bias. Given the low porewater Fe concentrations and, thus, the low 58Fe signal on the mass spectrometer, we did not attempt to measure the δ'58Fe for the entire set of samples. The performance of the Neptune instrument was assessed by repeated measurements of an internal laboratory reference (ICP Fe, n = 12) and a purified sample solution (porewater extracted from 8.5 cm in the Liangjiangkou core, n = 27). The average isotopic compositions, obtained in high-resolution mode under optimized conditions, are δ'57Fe = −0.15 ± 0.12‰ (2 SD) and δ'56Fe = −0.12 ± 0.09‰ (2 SD) for the ICP-Fe solution; and δ'57Fe = −3.70 ± 0.16‰ (2 SD), δ'56Fe = −2.53 ± 0.10‰ (2 SD) and ∆'57Fe = 0.03 ± 0.14‰ (2 SD) for the porewater (Supplementary Fig. 3). The precision of measurements on the Neptune Plus, operated in high-resolution mode under optimized conditions, was derived from repeated measurements of an internal laboratory reference (CAGS-Fe, n = 71) for which the average δ'57Fe = 1.17 ± 0.14‰ (2 SD) and δ'56Fe = 0.80 ± 0.08‰ (2 SD) (Supplementary Fig. 3), values that are statistically identical to its reported isotopic compositions, δ'57Fe = 1.20 ± 0.13‰ (2 SD) and δ'56Fe = 0.83 ± 0.07‰ (2 SD)59. Further testing revealed that the NMD Fe-isotope signatures are analytically robust (see Supplementary Methodology and Supplementary Table 3 for detail). The robustness of the triple Fe-isotope compositions is also supported by the smooth distribution pattern of the data (Supplementary Fig. 3) obtained by two different spectrometers in two different laboratories.

Fe isotope notations

Fe isotope data are reported as δ'xFe (δ'56Fe, δ'57Fe) in parts per thousand (per mil, ‰) deviations relative to IRMM-014.

$${{{\rm{\delta }}}}^{\prime} {}^{56}{{{\rm{F}}}}{{{\rm{e}}}}={{{\rm{ln}}}}[{({}^{56}{{{\rm{F}}}}{{{\rm{e}}}}/{}^{54}{{{\rm{F}}}}{{{\rm{e}}}})}_{{{{\rm{sample}}}}}/{({}^{56}{{{\rm{F}}}}{{{\rm{e}}}}/{}^{54}{{{\rm{F}}}}{{{\rm{e}}}})}_{{{{\rm{IRMM}}}}-014}]$$
$${{{\rm{\delta }}}}^{\prime} {}^{57}{{{\rm{F}}}}{{{\rm{e}}}}={{{\rm{ln}}}}[{({}^{57}{{{\rm{F}}}}{{{\rm{e}}}}/{}^{54}{{{\rm{F}}}}{{{\rm{e}}}})}_{{{{\rm{sample}}}}}/{({}^{57}{{{\rm{F}}}}{{{\rm{e}}}}/{}^{54}{{{\rm{F}}}}{{{\rm{e}}}})}_{{{{\rm{IRMM}}}}-014}]$$
$$\Delta ^{\prime} {}^{57}{{{\rm{F}}}}{{{\rm{e}}}}={{{\rm{\delta }}}}^{\prime} {}^{57}{{{\rm{F}}}}{{{\rm{e}}}}-1.475\times {{{\rm{\delta }}}}^{\prime 56}{{{\rm{F}}}}{{{\rm{e}}}}$$
$${{{\rm{\delta }}}}^{\prime} ={{{\rm{ln}}}}(1+{{{\rm{\delta }}}})$$

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
