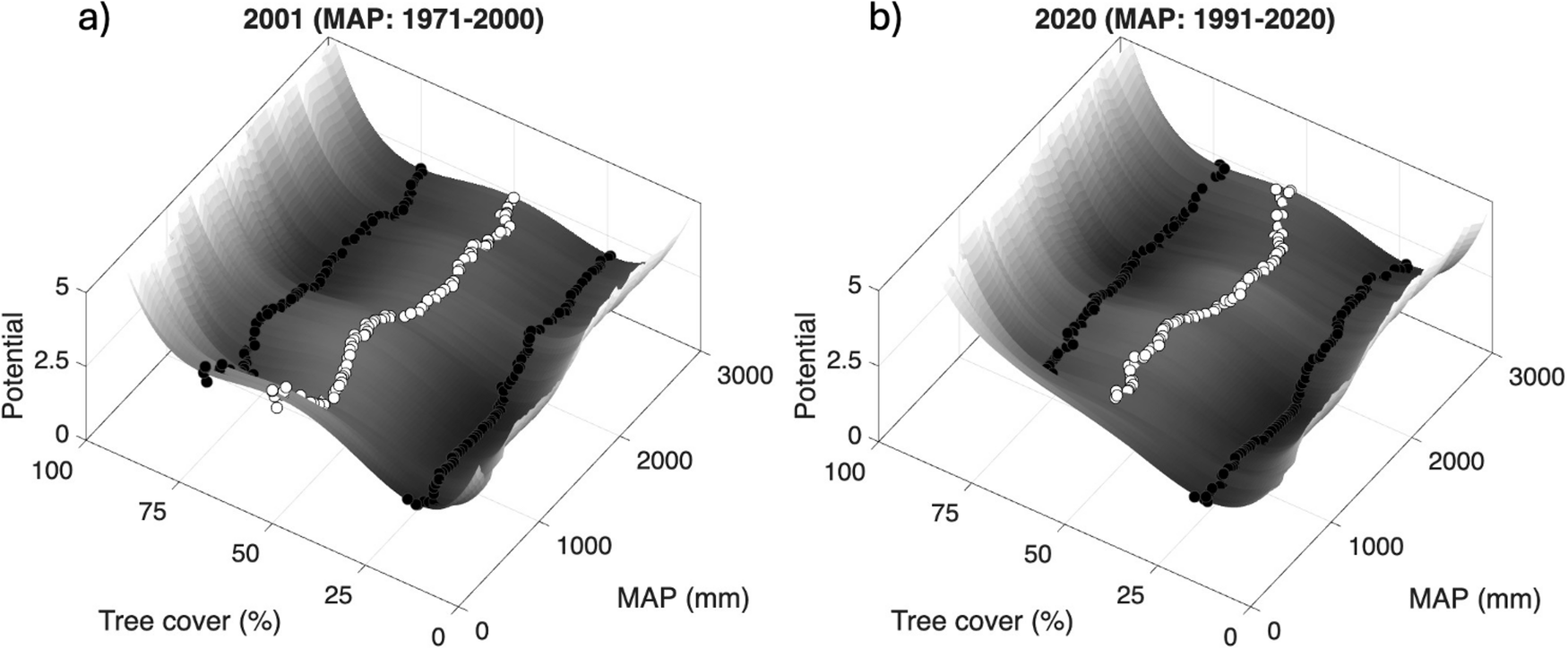

Fig. 4: The potential landscape of India’s tree cover distribution.
From: Forest-savanna stability in India under human interventions and changing climate
Potential landscape generated using a 2001 tree cover observations with MAP of 1971–2000 and b 2020 tree cover observations with MAP of 1991–2020. The black circles indicate the minima in the potential plot, and white circles indicate maxima between these two minima.
