Introduction

Primary production in the Southern Ocean (SO) is constrained by the availability of iron (Fe). This results in high concentrations of unutilized macronutrients in seawater1,2, making the SO a high-nutrient low-chlorophyll (HNLC) region3. Exceptions are observed in the vicinity of islands, where primary production flourishes, sustaining a variety of wildlife4,5. This effect is commonly referred to as the Island Mass Effect5,6,7. Physical processes contributing to the Island Mass Effect are well known and promote the entrainment of nutrient and Fe-rich deep waters into the euphotic zone8. This process includes, for example, upwelling induced either by topography and shedding of eddies, as well as enhanced vertical mixing due to surface water currents interacting with the island9,10. Biogeochemical aspects of the Island Mass Effect, i.e., natural Fe fertilization by lithogenic inputs from the island as well as sedimentary inputs, have been studied before at Kerguelen Island5,7,11. Still, little is known about the Fe sources that fuel the high productivity around South Georgia. Primary production around the island has been estimated to be 10 times higher compared to the surrounding Weddell Sea (~200 g C m−2 yr−1 vs. ~20 g C m−2 yr−1 12). Observational and modeling studies corroborate that the Fe sources fueling the blooms off South Georgia originate close to the island’s shore13,14,15. However, Fe fluxes from different nearshore sources and their respective bioavailability to phytoplankton remain poorly resolved. A comparison of Fe flux estimates for the Southern Ocean16 reveals that nearshore sources such as subglacial meltwater (0.005 – 5.5 mg Fe m−2 yr−1), shelf sediments (0.35–39.5 mg Fe m−2 yr−1) and icebergs (2–20 mg Fe m−2 yr−1) can be significant contributors to the Fe pool in seawater. Atmospheric deposition from dust and aerosols also supplies Fe to the SO16,17. At Kerguelen Island, it has been shown that glaciogenic Fe and Fe from the plateau are transported offshore, where seasonal phytoplankton blooms occur18. Studies estimating Fe fluxes commonly distinguish certain size classes of dissolved Fe (dFe (<0.2 µm): soluble Fe (<0.02 µm) and colloidal Fe (0.02–0.2 µm)) and assume them to be fully or partially bioavailable19,20,21,22. Colloids, particles and ligands maintain a large inventory of Fe in the water column, the in situ cycling of which may produce bioavailable species such as the highly bioavailable free inorganic Fe(II). The complex interplay between chemical and physical speciation, such as the complexation with organic ligands and size fractionation, governs Fe bioavailability23. Soluble Fe (for example, free inorganic Fe(II)) can be directly taken up by phytoplankton and is therefore most bioavailable24. Nevertheless, 30–81% of the dFe pool in the mixed layer is present in the form of colloids24, and the importance of those chemically dynamic colloids in shaping Fe bioavailability is unclear. For instance, colloids have the potential to serve as a source of Fe for phytoplankton25,26 but may also lead to the formation of aggregates, scavenging Fe from the euphotic layer27. While particulate Fe (pFe >0.2 µm) is not considered to be bioavailable to phytoplankton, it contributes to the dFe pool by light- or ligand-induced dissolution28. Furthermore, after deposition, iron oxides that are part of the particulate iron pool might be subject to anoxic conditions and get reduced, which may result in benthic release of Fe(II) into the water column29. Chemical speciation of Fe in seawater adds another level of complexity in determining its bioavailability. Fe-binding ligands are a diverse group of organic molecules that facilitate the dissolution of Fe at higher concentrations than would be possible in its inorganic form, promoting uptake by phytoplankton30,31,32. Ultimately, though, it’s the binding strength of the Fe-ligand complex and the physiological traits of the phytoplankton cell, which are thought to determine Fe bioavailability33,34. Despite the fact that 99% of dFe in seawater is bound to ligands35, governing Fe speciation and bioavailability to a large degree, our understanding of these complexes is limited. Only a few ligands have been thoroughly described, with the majority remaining uncharacterized35. For instance, siderophores have been found to form strong Fe complexes, impacting bioavailability to phytoplankton, depending on whether they have siderophore uptake pathways31,33. Humic substances and exopolysaccharides, on the other hand, have been shown to increase Fe bioavailability in the SO32,36,37. Previously, dFe and pFe have been quantified in surface waters in the South Georgia region, indicating that shelf sediments, pore waters and glacial meltwaters serve as sources of high Fe concentrations in the surrounding ocean13. Likewise, groundwater can substantially contribute to the Fe enrichment of seawater in the SO38. Climate change-induced warming will increase melting of glaciers and thawing of permafrost on the island39 and therefore alter the associated Fe fluxes. However, the bioavailability of Fe originating from these nearshore sources to phytoplankton around South Georgia is still unknown. Accordingly, we sampled different nearshore sources of Fe to assess the bioavailability of Fe to phytoplankton: Groundwater (GW) from a subaerial seepage, featuring reddish precipitates; water from proglacial meltwater (MW) streams, producing turbid plumes in the fjord, as seen on satellite images and water from the estuary (EW), in the mixing zone where the glacial meltwater stream enters the fjord (Figs. 1, 2). Sampling took place in King Haakon Bay (KHB) on the south-western side of the island and in Cumberland Bay (CB) on the north-eastern side (Fig. 1). In the framework of the GEOTRACES process study Island Impact40, we conducted short-term 55Fe uptake experiments with a natural, Fe-limited phytoplankton community on board the research vessel Polarstern40. Water sampled from a low and a high chlorophyll (chl) site was filtered (0.2 µm; hereafter referred to as low chl water (LCW) and high chl water (HCW, Fig. 1) and enriched with Fe from the above-mentioned nearshore Fe sources. The preconcentrated natural, diatom-dominated phytoplankton community (Supplementary Fig. 1) was then added to each treatment and the bioavailability of Fe from each source was determined by measuring 55Fe uptake in triplicate after 24 h. The uptake experiment also included a treatment with FeCl3 and unamended bottles (LCW and HCW without source addition) for comparison (Fig. 3).

Fig. 1: Sampling locations on South Georgia Island.
Fig. 1: Sampling locations on South Georgia Island.
Full size image

a At two sites, seawater was collected as indicated by the red circles: Low chlorophyll water (LCW) and high chlorophyll water (HCW). To assess the bioavailability of Fe from different sources, a natural Fe-limited phytoplankton community (Phyto, red rectangle) was collected. b The different Fe sources were sampled in King Haakon Bay (south-western side of South Georgia) and Cumberland Bay (north-eastern side) as indicated by the red rectangles. Bathymetry from ref. 104.

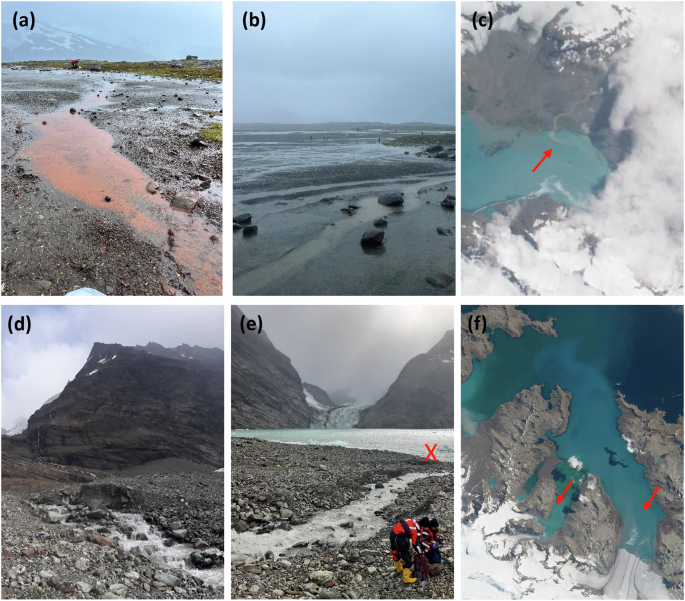

Fig. 2: Sampling locations of the natural Fe sources on South Georgia Island.
Fig. 2: Sampling locations of the natural Fe sources on South Georgia Island.
Full size image

King Haakon Bay: a subaerial groundwater seepage, b proglacial meltwater stream, c satellite picture showing glacial discharge into the fjord. Cumberland Bay: d proglacial meltwater stream, e estuarine water (sampling location indicated by the red cross), f satellite picture showing glacial discharge into the fjord. Photographs by Berenice Ebner (a, b, d) and Katja Laufer-Meiser (e, GEOMAR), Satellite images: Sentinel-2 L1C taken 01/2023 and 11/2021.

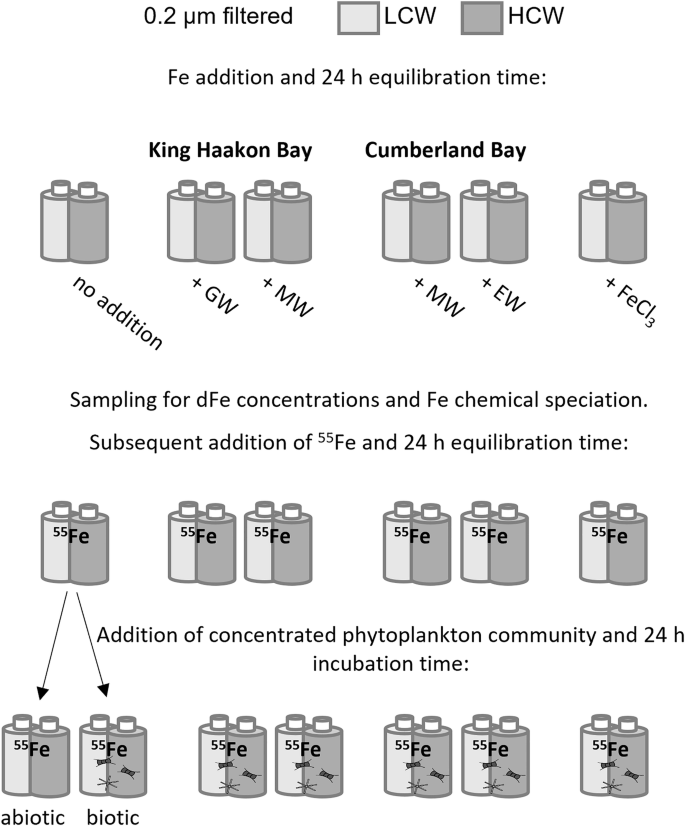

Fig. 3: Experimental setup.
Fig. 3: Experimental setup.
Full size image

About 0.2-µm-filtered natural Antarctic seawater was collected from a low and high chlorophyll region (LCW and HCW, respectively) around South Georgia Island (Fig. 1). To the LCW and HCW, Fe from the following natural sources was added: groundwater (GW) from a subaerial seepage and proglacial meltwater (MW) from King Haakon Bay and proglacial meltwater (MW) and estuarine water (EW) from Cumberland Bay. The addition of Fe (unfiltered water) from these natural sources was compared to the addition of iron chloride (FeCl3). A set of LCW and HCW bottles was left unamended (no addition). After allowing each treatment to equilibrate for 24 h, samples for dFe concentrations and Fe speciation were taken. To quantify the Fe bioavailability of each treatment, radioactive Fe (55FeCl3) was added and left to equilibrate for another 24 h before aliquots of the preconcentrated Antarctic phytoplankton community (taxonomic composition, Supplementary Fig. 1) were added to the treatments. The LCW and HCW without Fe addition were further split into biotic and abiotic bottles, with only the biotic bottles receiving the phytoplankton concentrate. 55Fe uptake over 24 h by the respective phytoplankton community was then determined in each treatment.

Results and discussion

Biology and chemistry differ between the two sampling sites

The LCW, sampled at 20 m depth, 450 km off South Georgia (Fig. 1), was characterized by high concentrations of macronutrients (19.02 µM nitrate, 1.30 µM phosphate and 12.56 µM silicate, Supplementary Table 1). The mixed layer depth was 43 m. At this site, low concentrations of chlorophyll a (chl a, 0.33 µg L−1) and particulate organic carbon (POC, 0.14 mg L−1) were observed, while productivity (27.85 mg C m−3 d−1) and photosynthetic efficiency of the in situ phytoplankton community (Fv/Fm, 0.29) were moderate41. Likewise, dFe concentration in the LCW was moderate (0.42 nM) and abundance of heterotrophic bacteria was found to be 217,352 cells mL−1. The HCW was collected from 20 m depth on the shelf in proximity to the island (<2 km) and this location exhibited similarly high concentrations of macronutrients (16.90 µM nitrate, 1.09 µM phosphate, and 9.54 µM silicate, Supplementary Table 1). However, chl a (3.78 µg L−1), POC (0.37 mg L−1), primary production (139 mg C m−3 d−1), photosynthetic efficiency (Fv/Fm = 0.43) and bacterial abundance (383,049 cells mL−1) at this location were substantially higher compared to the LCW, indicating the progression of a phytoplankton bloom. Likely due to biological uptake, dFe concentration (0.12 nM) was lower in the HCW than in the LCW42,43. DFe at the HCW site was depleted by an intense phytoplankton bloom, which implies that dFe must have been much higher initially. Accordingly, primary production at this site was high, as diatoms still photosynthesize, relying on their intracellular Fe pools42,43.

Ligands prevent Fe from precipitation in seawater and thus are essential in governing Fe bioavailability to phytoplankton33,35. In most of the open ocean, concentrations of ligands are found to be higher than those of dFe44. The total ligand concentration (LT = 0.42 ± n.d. nM) of the LCW, however, exactly matched the dFe concentration, indicating a lack of excess Fe binding ligands (L*, the difference between LT and dFe) in this batch of seawater (Table 1). Similarly, Boyd and Tagliabue44 reported that in 12-14% of the oceanwide observations, L* was negative- or close to zero. In line with our data, negative L* were also found in open ocean waters, for example the south Atlantic44. Since the sampling site of the LCW was remote and far away from terrestrial Fe sources, these findings can most probably be attributed to a lack of biological ligand production in this area and/or the photochemical destruction of ligands in surface waters35,44,45,46. In the voltammetric analysis, limited titration resolution prevented reliable determination of the conditional stability constant (\(\log {K}_{{FeL},F{e}^{{\prime} }}^{{cond}}\)) with respect to Fe’ (free inorganic Fe) for the LCW (Table 1).

Table 1 Fe speciation, dissolved organic matter (DOC) and primary production (PP) in the LCW
Full size table

In the HCW, LT exceeded the dFe concentration, resulting in a plethora of excess ligands (LT = 1.10 ± 0.48 nM; L* = 0.98 nM, Supplementary Table 2). Using operationally defined ligand classes35, the stability constant (\(\log {{{\rm{K}}}}_{{{\rm{FeL}}},{{\rm{F}}}{{{\rm{e}}}}^{{\prime} }}^{{{\rm{cond}}}}\) = 10.49 ± 0.45) of ligands in the HCW indicate presence of weak binding ligands, influencing Fe bioavailability. As Fe bioavailability is governed by the interplay of LT and \(\log {{{\rm{K}}}}_{{{\rm{FeL}}},{{\rm{F}}}{{{\rm{e}}}}^{{\prime} }}^{{{\rm{cond}}}}\), the product of both parameters, termed complexation capacity (α = LT × 10^\(\log {{{\rm{K}}}}_{{{\rm{FeL}}},{{\rm{F}}}{{{\rm{e}}}}^{{\prime} }}^{{{\rm{cond}}}}\), where LT is in mol L−1) will be used henceforth as an explanatory variable33. Further, Fe’, which is considered to be highly bioavailable, was calculated and equal to 2.80 ± 3.12 pM in the HCW. Altogether, Fe speciation parameters measured in the HCW fall within the range found in other studies of the SO47,48,49.

Discriminating between chemical and biological Fe removal

To differentiate between biological and non-biological removal of Fe, bottles of the LCW and HCW (without Fe addition) were split into biotic (addition of preconcentrated phytoplankton) and abiotic ones (without addition of phytoplankton, Fig. 3). As expected, no Fe uptake occurred in the abiotic LCW due to the absence of phytoplankton cells. Surprisingly, 55Fe was retained on the filters in the abiotic HCW (Supplementary Table 2). In fact, the amount of 55Fe in the abiotic HCW was similar to that in the biotic HCW, suggesting an effect driven by chemistry and not by biology. This observation is indicative of the formation of 55Fe-rich aggregates and highlights the importance of including abiotic controls in the experimental design to detect non-biological effects that retain 55Fe on the filter.

It has been shown that dissolved organic matter (DOM) can quickly (< 30 minutes) aggregate into polymer gels (transparent exopolymeric particles, TEP; 0.4–200 µm50) and remain intact, even when filtered again51. Abiotic factors enhancing the aggregation potential in seawater include, amongst others, concentrations of multivalent cations by forming cross-linking bridges52. Since we lack a full assessment of cations in the HCW, we can only speculate that they contributed to aggregation. We are, however, able to exclude that low pH fostered aggregation as the HCW was rather alkaline (pH 7.96)52. Two important factors in aggregation are the quantity and quality of DOM present in seawater52. Concentrations of dissolved organic carbon (DOC, as a proxy for DOM) at both sites (HCW: 73.52 ± 0.76 µM; LCW: 66.86 ± 0.93 µM), fall within the range measured in the SO53,54. Hence, the quality rather than quantity of DOM in the HCW appears to be the driving factor for aggregation in this case. The chemical composition of TEP precursors, primarily polysaccharides excreted by phytoplankton, differ depending on species composition and physiological status of the in situ phytoplankton community55,56. In particular, this influences the tendency of DOM molecules to interact after collision (stickiness) and form gels/aggregates57. Several studies found that TEP formation is highest when phytoplankton are in exponential or senescent growth phases58,59,60. As described above, relative to the LCW, primary production of the HCW in situ phytoplankton community was five times higher, indicating an intense phytoplankton bloom at the time of sampling. In support of this, also the abundance of heterotrophic bacteria was 1.8 times higher in the HCW than in the LCW (Supplementary Table 1). Although the contribution of bacterially derived TEP precursors in the ocean appears to be negligible, it has been postulated that complex interactions of bacteria with phytoplankton can enhance the production of sticky TEP precursors (reviewed in ref. 61). Overall, the high biomass, productivity and bacterial abundance in the HCW were favorable for the release of sticky DOM, thus promoting the formation of 55Fe-rich aggregates. Due to the latter, the biological Fe uptake processes of natural Fe sources in the HCW could not be quantified.

Bioavailability of Fe from different sources cannot be predicted from geochemical characteristics

Ground- and estuarine water and proglacial meltwaters were collected in KHB and CB. Fe concentrations of those unfiltered sources were determined on board the research vessel via the ferrozine method62 (see methods section). Based on these values (Table 2), we calculated an enrichment of the LCW by 1 nM Fe from each source. Acknowledging the limitations of the ferrozine method, particles in the unfiltered sources can interfere with the photometric measurement, which might result in an overestimation of Fe concentrations. The dFe concentration in each of the LCW treatments was later determined in acidified samples via ICP-MS in the home laboratory (Table 1). Even though these concentrations were lower than expected, possibly due to overestimation of Fe concentrations in the source waters from the ferrozine measurements or Fe flocculation induced by salinity gradients, they were within a very narrow range, which is a prerequisite for comparing Fe uptake rates. We defined the Fe uptake rates in the “no addition” biotic LCW and the FeCl3 treatment as the lower and upper boundaries of bioavailability, respectively (Fig. 4). Accordingly, Fe from each source that significantly enhanced Fe uptake by phytoplankton compared to the biotic LCW was considered bioavailable. The range of Fe uptake was 97 pmol Fe L−1 d−1 (lower boundary = 25.05 ± 0.25 pmol Fe L−1 d−1, upper boundary = 122.38 ± 4.69 pmol Fe L−1 d−1, Fig. 4). From the four natural sources, Fe from both MW’s and EW were bioavailable to the tested phytoplankton community, increasing Fe uptake by a factor of two compared to the biotic LCW (Fig. 4). The addition of GW, on the other hand, did not enhance Fe uptake compared to the biotic LCW suggesting that the Fe it contained was not, or only minimally, bioavailable. These widespread differences in Fe bioavailability of natural sources observed in the LCW were presumably caused by differences in Fe speciation. Yet, patterns of Fe speciation parameters corresponding to Fe uptake rates were not observed. In fact, the addition of natural Fe sources to the LCW considerably increased LT by up to 193% (Table 1). However, LT in the GW was twice as high compared to the LCW and similar to both MW’s, indicating no direct effect of ligands on the Fe bioavailability of the tested sources. Unexpectedly, the lowest L* were found for MW (CB) and GW (0.37 and 0.43 nM, respectively). LT was highest in the FeCl3 treatment, which is consistent with previous studies showing that ligands can be produced immediately when Fe is added to seawater63,64. Since \(\log {K}_{{{FeL},Fe}^{{\prime} }}^{{cond}}\) could not be determined for GW, evaluating if the binding strength of ligands in sources containing bioavailable vs. non-bioavailable Fe differs, is not possible. The variations in \(\log {K}_{{{FeL},Fe}^{{\prime} }}^{{cond}}\) and therefore also α (78.30 to 346.66) for the three bioavailable Fe sources are, however, already large. Against expectations, Fe’ was highest in the GW and lowest in the EW, although the absence of a relationship between Fe’ and uptake rates might be explained by the uncertainty of calculating Fe’ in general. In line with our results, other studies that used Fe uptake rates to infer Fe bioavailability of a source also failed to identify trends in Fe speciation that could elucidate the underlying mechanisms governing bioavailability47,48,65. Also, ligand measurements were conducted under laboratory conditions with a fixed pH at room temperature, which does not resemble the conditions of our experiment. Therefore, the respective data should be interpreted with caution.

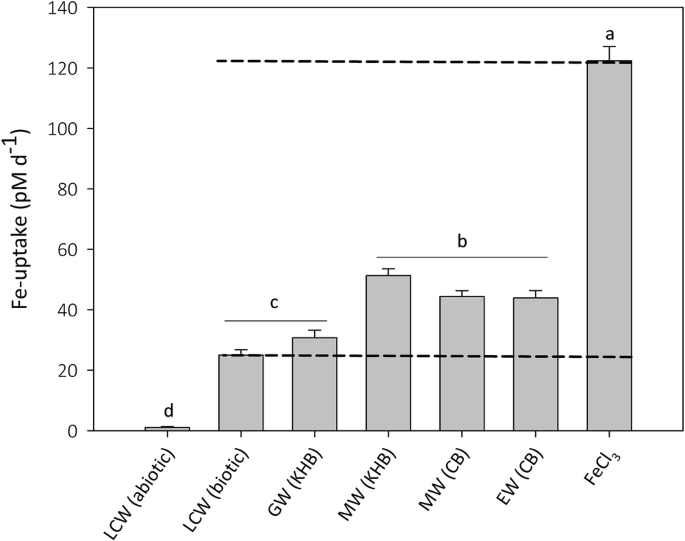

Fig. 4: Bioavailability of iron from nearshore sources from South Georgia.
Fig. 4: Bioavailability of iron from nearshore sources from South Georgia.
Full size image

For determination of Fe uptake, a diatom-dominated (Supplementary Fig. 1), preconcentrated phytoplankton community was added to each treatment. Fe uptake rates of the phytoplankton community were measured in the low chlorophyll water (LCW), to which either natural unfiltered Fe sources (GW: groundwater from a subaerial seepage, MW: proglacial meltwater, EW: estuarine water) from King Haakon Bay (KHB) and Cumberland Bay (CB)) or FeCl3 were added. No additional Fe source was added to the LCW abiotic (without phytoplankton) and the LCW biotic (containing phytoplankton) treatment. Dashed lines indicate the lower and upper limit of Fe uptake. Statistically significant differences (p < 0.05) are indicated by small letters. Values are displayed ±SD, n = 3.

Table 2 Fe concentrations in ascorbic acid-treated, unfiltered samples from natural Fe sources
Full size table

To assess whether the chemical composition of water from a source influences Fe bioavailability, we had a closer look at weathering processes. The bedrock geology at all our sampling sites is predominantly composed of andesitic volcaniclastic graywackes and shales66, indicating silicate weathering. Based on the measured dissolved ion concentrations in the GW and MW samples, calcium sulfate type-waters were identified (piper diagram, Supplementary Fig. 2). This result suggests pyrite oxidation and is supported by the high Fe concentrations, measured for these sources (Supplementary Table 367). Pyrite oxidation is known to be microbially mediated and to increase silicate dissolution and promote Fe release68,69. Acid rock drainage, a result of pyrite oxidation38 is a potential Fe source from land to the ocean. In our study area, the GW (KHB) site exhibits reddish precipitates (Fig. 2), which can indicate acid rock drainage or dissimilatory Fe reduction70. The released Fe(II) is largely oxidized after being discharged. Previous studies conducted at the Antarctic peninsula proposed acid rock drainage as a putative bioavailable Fe source38. Based on our results, Fe deriving from GW (KHB) was not bioavailable to phytoplankton (Fig. 4). Thus an immediate Fe fertilization effect cannot be confirmed. This is in line with earlier findings, which described that diatom cultures were not able to access ferrihydrites as a Fe source, resulting in low uptake rates close to those of Fe bound to the strong siderophore desferrioxamine B23. However, freshly formed Fe oxides are important electron acceptors in early diagenesis and can potentially indirectly fuel primary production by releasing benthic Fe(II)71.

In our study, we investigated two meltwater Fe sources from the proglacial zone of land terminating glaciers. The geological setting of a glacier (weathering type and intensity, bedrock geology, and biogeochemical processes in the proglacial environment, such as exposure to oxygen) ultimately determines the concentration and speciation of Fe in meltwater72,73. MW (KHB) was turbid and milky, indicating that it was rich in suspended matter, i.e., glacial flour from the base of the glacier. Potentially it was sourced from an anoxic subglacial drainage system74, where microbial processes producing Fe(II) are typically enhanced75,76,77. MW (CB), on the other hand, was clear and its ionic strength (calcium, magnesium and silicon, Supplementary Table 3) was less than half compared to MW (KHB), suggesting that it was sourced from supraglacial melting, a highly oxidative environment. Unlike Fe(III), Fe(II) is dissolved, thus influencing the dFe inventory and bioavailability. Even though both meltwater streams were oxic, we expected differences in Fe bioavailability given the contrasting settings from which they originate. However, Fe from MW (KHB) and MW (CB) were equally bioavailable to phytoplankton. This suggests that geochemical processes in the proglacial environment determined Fe speciation and bioavailability, rather than the redox conditions at the melting locus of the glacier. Similar to our study, the Fe uptake rates were high in seawater samples collected in proximity to an Antarctic marine terminating glacier (Mertz Glacier), representing yet another geological setting47. Although up to 95% of the initial dFe in glacial meltwater can be lost due to scavenging processes72,78,79 (precipitation or salinity gradient induced flocculation and particle adsorption in the proglacial and estuarine environment) a low flux of bioavailable Fe is supplied.

The EW was collected at the outlet of the proglacial meltwater stream, directly at the shoreline. As expected, uptake rates of Fe from the EW were similarly high to those of both MWs (Fig. 4), indicating elevated Fe bioavailability relative to the biotic LCW. This trend suggests the input of glacial meltwater into the EW, as also supported by its lower salinity (25.40, Supplementary Table 3). Furthermore, out of the four tested sources, EW was the only one, with a detectable level of humic substances (Supplementary Table 4), which in another laboratory study has been shown to enhance Fe uptake rates of phytoplankton36.

As expected, Fe in none of our natural sources approached the bioavailability of FeCl3. Interestingly, however, Fe in three of the four studied natural sources was similarly bioavailable to the same phytoplankton community, even though they originated from contrasting geochemical settings. This trend highlights that geochemical characterization (chemical and physical speciation and redox history) of Fe sources alone is not sufficient to predict Fe bioavailability and future studies need to link biological and geochemical approaches.

Nearshore bioavailable Fe sources enhance offshore primary production

The low Fe:C uptake ratio (4.23 µmol:mol) of the diatom-dominated phytoplankton community (Supplementary Fig. 1) indicates Fe limitation and thus depicts a realistic scenario of carbon fixation capacity for Antarctic offshore waters41,80,81,82. Consequently, MW (KHB), MW (CB), and EW, containing bioavailable Fe, would increase CO2 fixation in open ocean waters (71 µg C L−1 d−1) by 105, 77, and 75%, respectively (Table 1). We are currently observing an increase in global temperatures83, leading to altered Fe supply from melting glaciers and thawing permafrost, with important biological and biogeochemical implications. The rise in temperatures on South Georgia will lead to thawing of the moraine and increase groundwater discharge, introducing copious amounts of Fe into the coastal environment. However, this study suggests that this source, with its limited Fe bioavailability, plays a minor role in fueling phytoplankton blooms off South Georgia. Meteorological records from South Georgia confirm a continuous warming trend since 1905 with increasing warm and dry westerly winds39. Modeling studies estimate that the maximum combined output of glacial discharge from South Georgia is 1.0368 × 108 m3 d−1 in austral summer84,85. Using the dFe concentrations measured in MW (KHB) and MW (CB, Supplementary Table 3), the potential flux to the coastal ocean could range between 7.4 × 103 and 49.5 × 103 mol dFe d−1. Long-term observations of South Georgia’s glaciers show an overall retreat but heterogeneous regional patterns. With a mean elevation change of −1.76 ± 0.01 m y−1, thinning rates were calculated to be highest for glaciers in the north east of the island and 2.5 times lower for glaciers in the south-west (−0.69 ± 0.01 m y−1 86). The warming-induced release of bioavailable Fe from glacial meltwaters from South Georgia into the surrounding waters could thus become an increasingly important Fe source in the future. In addition to glacial meltwater discharge in the mixing zone of the fjord, the EW is also influenced by other Fe sources, though their nature and origin are difficult to track. Fe originating from South Georgia’s shelf was shown to fuel offshore phytoplankton blooms, based on modeling and observational studies13,14. Indeed, in this study, Fe from EW proved to be a bioavailable source to phytoplankton, with increasing proportions of glacial meltwater in the future.

Different to former studies, which assessed Fe bioavailability based solely on chemical characterization20,22,87, this study, quantified Fe bioavailability of nearshore sources via 55Fe uptake rates of a natural phytoplankton community and linked the results to geochemical processes as well as the redox history of the Fe sources. This unique approach revealed that only glacial meltwaters, even when originating from different geological and redox settings, provide bioavailable Fe to phytoplankton, while groundwater did not. This finding was unexpected, since a previous geochemically based study claimed the bioavailability of Fe in groundwater transported into the coastal zone38. Our study also shows that the bioavailability of Fe from natural sources from South Georgia was primarily dependent on in situ biogeochemical interactions in seawater. Aggregates formed from DOM, likely resulting from microbial activity during a phytoplankton bloom, scavenged dFe and thereby made it unavailable to phytoplankton. This process was not observed for the low-biomass water, in which Fe released from MW and EW was bioavailable to phytoplankton. These results demonstrate the complexity and unpredictability of Fe bioavailability, which is dependent on the properties of the source itself and on the biogeochemical characteristics of the receiving water. Overall, this study reveals that Fe from glacial meltwater and water from the mixing zone of estuaries is bioavailable in low chl regions of the SO, fertilizing and enhancing CO2 uptake by phytoplankton blooms.

Methods

Experimental design

During the GEOTRACES Process Study Island Impact (RV Polarstern expedition PS133/2, November and December 202240), seawater was sampled at two stations in the Atlantic sector of the SO near South Georgia Island, first the station west of the island and second the station south of the island (Fig. 1). The two stations exhibited different chlorophyll biomass and are thus referred to as low chlorophyll water (LCW, 0.33 ± 0.01 µg chl a L−1) and high chlorophyll water (HCW, 3.78 ± 0.24 µg chl a L−1). Using a polyethylene hose connected to an ALMATEC teflon membrane pump, water from 20 m depth was pumped directly into a trace metal clean laboratory container and sampled under a laminar flow bench (US class 100, Opta, Bensheim, Germany). After flushing the hose for 45 minutes at each station, water for the experiment was filtered (0.2 µm) using a Sartorius Sartobran filter capsule, collected in carboys and stored at 2 °C in the dark until the start of the experiment. All equipment used was trace metal cleaned according to GEOTRACES protocols88, and samples were processed using trace metal clean techniques. The Fe sources were collected from glacier outlet areas in King Haakon Bay (KHB) on the south-western side of the island and Cumberland Bay (CB) on the north-eastern side (Fig. 2 and Supplementary Table 3). A proglacial turbid meltwater (MW) stream and groundwater (GW) from a subaerial seepage with reddish precipitates was sampled in KHB. A clear proglacial meltwater stream and water from the estuary (EW) were sampled in CB. The EW was taken in the mixing zone, where the proglacial meltwater stream enters the fjord. All sampling sites were located approximately 1 km from the respective glacier terminus. For sampling, a Tygon tube connected to a peristaltic pump (Global Waters) was used, and bottles were rinsed three times with the sample before filling. In each source, Fe was measured as Fe(II), after addition of 50 µl of ascorbic acid (1% w/v) to 1 mL of unfiltered sample. After 15 min, measurements were performed onboard according to ref. 89, using a DR Lange HACH 3900 photometer at the wavelength of 565 nm. The limit of detection for this method was 0.5 µM. The resulting concentrations include Fe(II), Fe(III) and easily reducible amorphous Fe oxides, as these are dissolved by ascorbic acid. Particles could also have interfered with the photometric measurement. Comparison of data from the ferrozine analyses with dFe measurements of respective filtered samples (Table 2 and Supplementary Table 3) shows that only 1–6% of the concentrations determined by ferrozine derive from dFe, indicating a high amount of easily reducible amorphous Fe oxides in the natural Fe sources. Based on the ferrozine measurements (Table 2), an Fe enrichment of 1 nM through addition of each unfiltered Fe source was made to 0.2 µm filtered LCW and HCW (Fig. 4). The volume of each Fe source water was less than 0.1% of the total incubation volume and dFe concentration in each treatment was analyzed in acidified and filtered samples via ICP-MS (Table 1; for detailed method description, see section dissolved Fe and major ion concentrations). The effect of the four natural Fe sources was also compared to the addition of 1 nM iron chloride (FeCl3), with the latter being considered highly bioavailable to phytoplankton90,91. In addition, a set of bottles containing the LCW and HCW were left unamended. All treatments (in triplicate) were left to equilibrate for 24 h at 2 °C in the dark. Subsequently, samples to determine the Fe speciation chemistry in each treatment were taken (0.2 µm filtration).

Dissolved Fe and major ion concentrations

About 100 mL of 0.2 µm filtered sample water was acidified with double-distilled hydrochloric acid (HCl) to pH 1.7 and stored at 2 °C to determine dissolved Fe concentrations92. To avoid interferences with organic material, all samples were irradiated with UV light for 1.5 h, subsequently concentrated by a factor of 10, using a SeaFast system (Elemental Scientific, at the Alfred Wegener Institute), and spiked with a rhodium single-element standard. Dissolved Fe concentrations were then determined via inductively coupled plasma mass spectrometry (ICP-MS, Element2, Thermo Fisher Scientific). The instrument was tuned to achieve oxide formation rates below 0.3%. The accuracy of the analysis was verified by measuring certified reference material (NASS-7), which was diluted by a factor of 10 to match the expected low concentrations of Fe in the samples. With a recovery rate of 98% (certified value: 351 ± 26 ng Fe L−1, measured value: 343.47 ± 6.91 ng Fe L−1), the verification was found valid. For water chemistry analysis of the Fe sources (Piper Diagram), dissolved concentrations of Mg, Na, K, and Ca in the Fe sources were measured using Inductively Coupled Plasma Optical Emission Spectrometry (ICP-OES, Thermo Scientific iCAP 7000, at the Alfred Wegener Institute). To correct for variations in the ionic strength of the samples, an internal yttrium standard was used. The certified reference material for river water SLRS-6 revealed recovery rates of 94.93% (n = 6) for Ca, 88.12% (n = 6) for Mg, 106.31% (n = 2) for Na, 114.65% (n = 2) for K and 114.05% for Mg (n = 6). Sulfate (SO42⁻) and chloride (Cl⁻) anions were quantified using a Metrohm 930 Compact Ion Chromatography (IC) Flex system. Recoveries of a measured spiked IAPSO were 95.52% (n = 3) for SO42- and 95.71% (n = 3) for Cl−. To rule out the distortion of the Piper diagram by sea salt in our samples, we assessed the Na/Cl ratio and found that it did not exceed 0.63. Thus, it remains well below the reference value of 0.86, indicating negligible sea salt contribution93.

Fe speciation

About 500 mL of 0.2 µm filtered water was frozen (−20 °C) for analysis of Fe speciation at the University of Washington. Competitive ligand exchange adsorptive cathodic stripping voltammetry94 provided estimates for LT and associated conditional stability constants, using the artificial ligand salicylaldoxime (SA). A day before the analysis, samples were defrosted, and each one was aliquoted into 15 Teflon vials. Each aliquot was then buffered with boric acid to obtain a pH of 8.2 (NBS scale). Aliquots of the same sample were subsequently spiked with increasing concentrations of Fe, ranging from 0 to 25 nM to establish an equilibrium between the competing artificial ligand SA and the natural ligands. Following overnight equilibration, samples were analyzed on a BASi instrument using a controlled growth mercury (Hg) electrode. A standard Hg drop was used as a working electrode. A platinum wire counter electrode and a double-junction Ag/AgCl (3 M KCl) were used as counter- and reference electrodes. Peaks generated from the titrations were extracted using the ECDSoft software package using a curved baseline, and the Fe-binding ligand parameters were derived by modeling using the ProMCC software95. The quantified parameters included ligand concentrations (L), conditional stability constants with respect to Fe’ (\(\log {{{\rm{K}}}}_{{{\rm{FeL}}},{{\rm{F}}}{{{\rm{e}}}}^{{\prime} }}^{{{\rm{cond}}}}\)), and Fe’ concentrations. All ligand parameters were determined using the complete complexation fitting model in ProMCC, and were iterated until the root mean square error was minimized for all parameters. The total root mean square error, as expressed as a sum of all parameters in ProMCC, was less than 30 in all samples. To further resolve the natural ligand pool, the contribution of humic substances was measured at GEOMAR by means of catalytic cathodic stripping voltammetry, following ref. 96. The limit of detection for this method is 0.04 nM, HS concentrations were normalized using an iron-binding capacity of 14.6 nM Fe per 1 mg L−¹ of SRFA, allowing the expression of ligand concentrations in nM.

Dissolved organic carbon (DOC)

About 500 mL of 0.2 µm filtered water was frozen (−20 °C) and analyzed at GEOMAR for DOC using the high-temperature catalytic oxidation method, following97. Ultrapure (MilliQ) water was used to determine the instrument blank and was accepted for values <1 µM C. Additionally, two internal standards with DOC concentrations matching those in the samples were prepared from potassium hydrogen phthalate (Merck 109017). Values for each sample are reported as the mean of four technical replicates ± standard deviation.

Macronutrient concentrations

About 20 mL of 0.2-µm filtered water was frozen (−20 °C) to measure concentrations of nitrate, phosphate and silicate colorimetrically on a Seal AA500 Autoanalyzer at the Alfred Wegener Institute98.

Fe-uptake assay

To measure intracellular Fe uptake and thereby assess bioavailability of Fe in each source, radioactive Fe (0.03 nM final concentration, 55FeCl3 = 9150 Bq; Perkin Elmer, MA, USA) was added to all treatments and left in the dark at 2 °C for 24 h, allowing the 55Fe to equilibrate into the various Fe pools47,65,99 (Fig. 3). Meanwhile, phytoplankton were gently concentrated (50x) from 40 L of seawater by gravity filtration (Millipore Amicon, model 8400) using a 3 µm polycarbonate filter (Whatman Nucleopore, 90 mm), as described in ref. 41. Due to the fact that the phytoplankton concentrate led to clogging of the filter at the HCW site, we decided to collect a Fe-limited community from an offshore region (Fig. 1). A small aliquot (2 mL) of the concentrated phytoplankton community was then added to 2 L of each treatment to once again achieve ambient cell densities. From the 2 L bottle, three smaller incubation bottles of 100 mL were filled for each treatment. The LCW and HCW (without source additions) were further split into biotic and abiotic treatments, with and without the addition of phytoplankton concentrate, respectively (Fig. 3). Since the same volume of phytoplankton concentrate was added to each biotic treatment, all contained the same biomass and species composition (Supplementary Fig. 1). An incubation period of 24 h was chosen to prevent shifts in species composition, which would have impeded the interpretation of 55Fe uptake rates between treatments. Within the incubation period of 24 h, primary production rates of the concentrated phytoplankton community were similar in the LCW and HCW (71.14 ± 6.83 mg C m−3 d−1 and 71.32 ± 8.36 mg C m−3 d−1, respectively), even though in situ biogeochemical characteristics of the LCW and HCW differed (e.g., aggregate formation). Each treatment was incubated at 2 °C and 30 μmol photons m−2 s−1 light intensity (16:8 h light-dark cycle), resembling in situ conditions. After 24 h, cells were filtered onto 2-μm polycarbonate filters, followed by three rinses with oxalate solution as well as three more rinses with 0.2-μm filtered natural seawater. The oxalate wash was used to remove any loosely adsorbed Fe from the outside of the cells46. Counts per minute were determined on the shipboard liquid scintillation counter (Tri-Carb2900TR) after adding 5 mL scintillation cocktail (Ultima Gold, Perkin Elmer) to each filter. Using a custom quench curve and taking into account the radioactive decay, counts per minute were transformed to disintegrations per minute. Finally, intracellular Fe-uptake rates were calculated, using the total dFe concentration (dFetotal = dFe in each treatment (see Table 1) + 55Fe added) and incubation time (T), following48:

$${{\rm{Fe}}}\,{{\rm{uptake}}}=(({}^{55}{{\rm{F}}}{{{\rm{e}}}}_{{{\rm{filter}}}}/{{\rm{TA}}})\ast {{{\rm{dFe}}}}_{{{\rm{total}}}})/{{\rm{T}}}$$
(1)

where 55Fefilter is the activity on the filter and TA the total activity added. All incubations received the same volume of phytoplankton concentrate and were incubated for 24 h, assuming that biomass did not change. Therefore, Fe uptake rates were not additionally normalized to biomass.

Chl a

To determine chl a concentration, 500 mL seawater was filtered onto glass-fiber filters (GF/F, 0.7-µm pore size, Whatman, Wisconsin, USA) and stored at −20 °C until further analysis at the Alfred Wegener Institute. For extraction, filters were soaked in 90% acetone for 24 h at 4 °C in the dark and subsequently analyzed on a Trilogy Fluorometer (Turner Design, San Jose, CA, USA), using the non-acidification module100.

Taxonomic analysis

Quantification of heterotrophic bacteria in the in situ plankton communities at both sampling locations (LCW and HCW) was carried out by flow cytometry according to ref. 101. Briefly, unfiltered seawater was fixed with formalin (1% final concentration) and immediately frozen at −80 °C until analysis on a BD Accuri C6 Plus at the Alfred Wegener Institute. Rainbow fluorescent particles (2.1 µm, Spherotec) were added to each sample as a size and fluorescence reference. An abundance of heterotrophic bacteria was determined by staining the cells with SYBR green (Thermo Fischer). The effective removal of heterotrophic bacteria in the 0.2 µm filtered LCW and HCW (i.e., water used for the experiment) was verified as the counts/mL were similar to those in samples containing MilliQ and SYBR green (difference of 6 ± 2%, n = 6). Light microscopy was used for taxonomic identification (based on ref. 102) of the concentrated, diatom-dominated phytoplankton community (Supplementary Fig. 1), which was preserved in Lugol’s solution (2% final concentration). According to the Utermöhl method103, a 10 mL aliquot was left to settle in a sedimentation chamber for 24 h before counting major taxa using an inverted microscope (Axiovert 200, Zeiss, at the Alfred Wegener Institute).

Photosynthetic efficiency

Chl a fluorescence was assessed using a fast repetition rate fluorometer (FRRf, FastOcean PTX sensor, Chelsea Technologies Group Ltd., West Molesey, United Kingdom) in combination with a FastAct Laboratory system (Chelsea Technologies Group Ltd., West Molesey, United Kingdom). Measurements were performed at incubation temperature (2 °C). Samples were dark acclimated for 45 min and subsequently exposed to 100 flashlets on a 2-μs pitch (saturation of PSII in the single turnover mode), followed by a relaxation phase of 40 flashlets on a 50-µs pitch. The maximum quantum yield of PSII (Fv/Fm) was calculated from minimum (F0) and maximum (Fm) chl a fluorescence:

$${{{\rm{F}}}}_{{{\rm{v}}}}/{{{\rm{F}}}}_{{{\rm{m}}}}=\left({{{\rm{F}}}}_{{{\rm{m}}}}-{{{\rm{F}}}}_{0}\right)/{{{\rm{F}}}}_{{{\rm{m}}}}$$
(2)

Primary production

Following the JGOFS protocol100, primary production of in situ communities at all three oceanic sampling sites (Fig. 1) was measured using 14C. Therefore, 50 mL of seawater was spiked with 0.97 MBq of 14C bicarbonate (Perkin Elmer, specific activity 2035 MBq mmol−1), incubated for 24 h at 2 °C with a light intensity of 30 µmol photons m−2 s−1 and subsequently filtered onto a 0.2 µm polycarbonate filter. The filter was then acidified with 250 µL 1.2 N HCL for 24 h, ensuring that any inorganic 14C left on the filter could degas. Total activity was determined in a 250 µL aliquot of the incubation. Finally, 5 mL scintillation cocktail (Ultima Gold, Perkin Elmer) was added to the total activities, and the degassed filters and samples were counted on the shipboard scintillation counter (Tri-Carb2900TR).

Statistical analysis

To test for statistically significant differences (p < 0.05) of the different Fe sources within the HCW and LCW treatments, one-way analysis of variance (ANOVA), followed by Tukey’s multiple comparison test were performed using the software GraphPad Prism (Version 10.2.2). Graphs were produced using the software Sigmaplot (Version 15.0) and Grapher (Version 20.2.321).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
