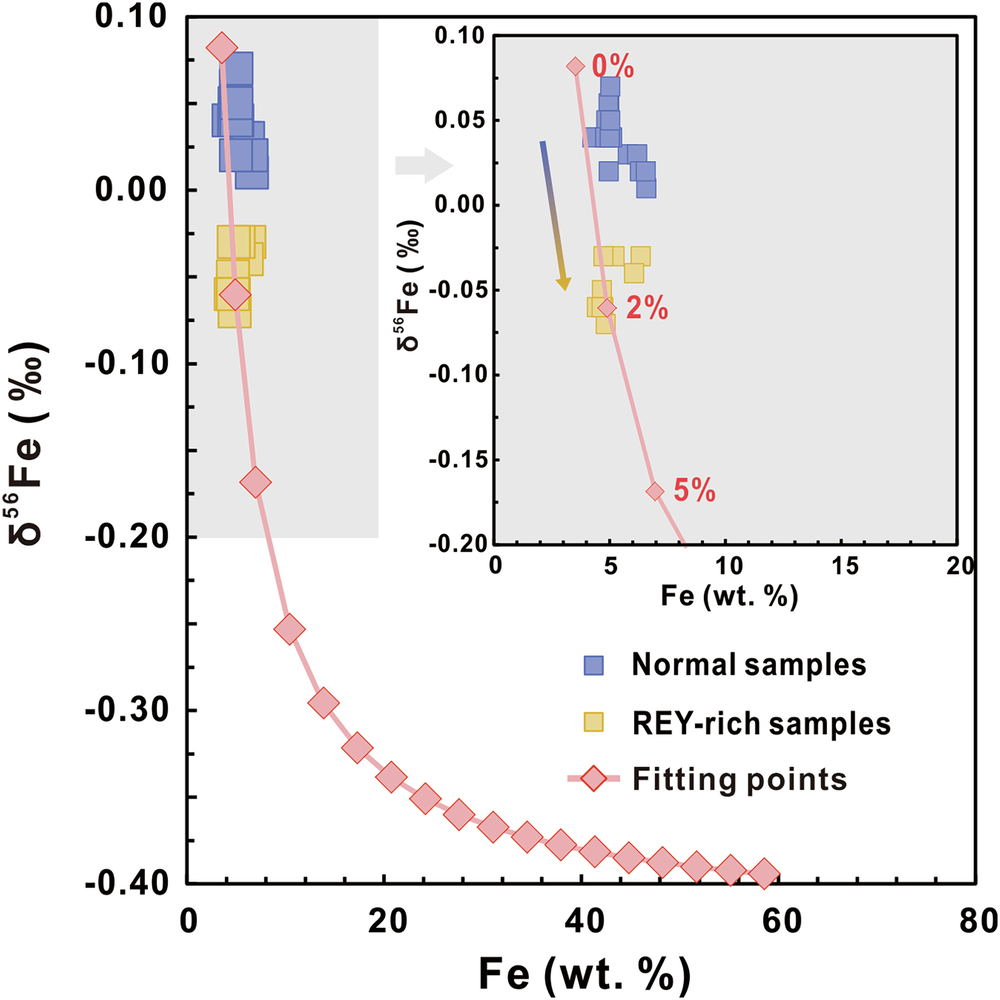

Fig. 5: Quantification of microbial iron metabolism contribution assessed by a two-endmember iron isotope mixing model.

The model constrains the proportion of microbial magnetite relative to a continental upper crustal endmember; the light red percentages indicate the modeled microbial contribution.
