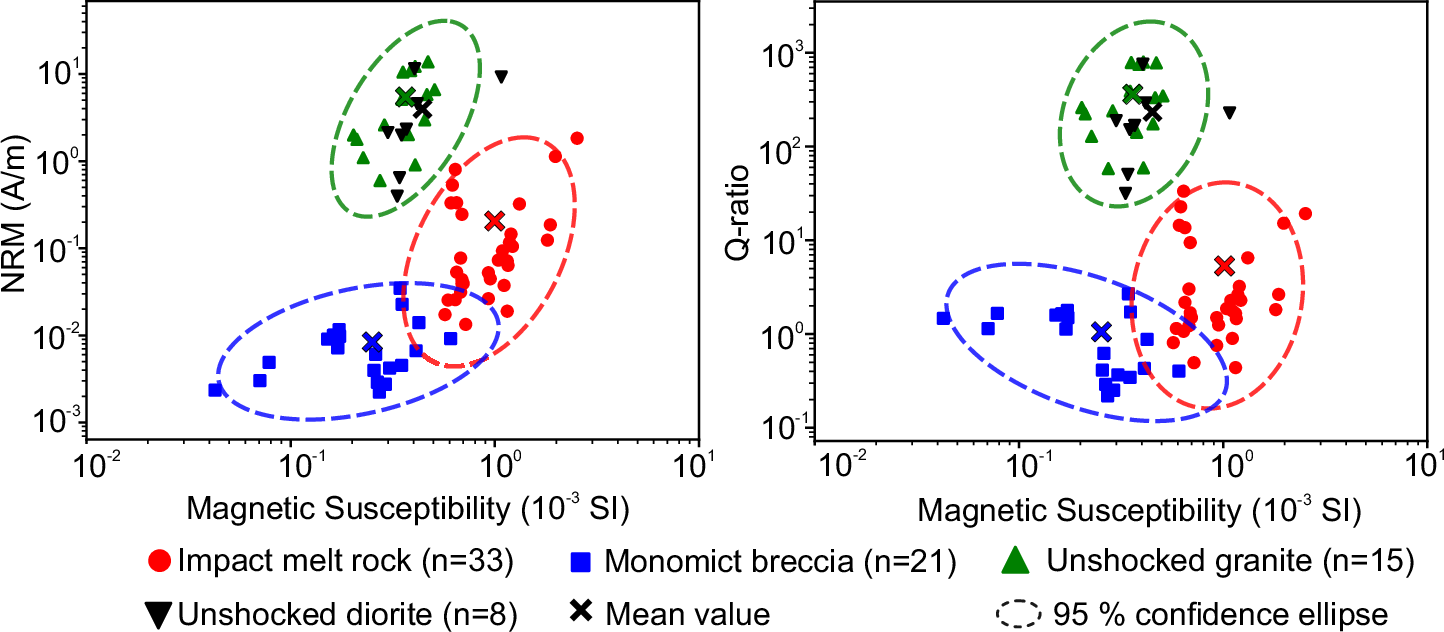

Fig. 6: Relationship between magnetic susceptibility and remanence properties.
From: Shock demagnetization in an ambient magnetic field at the Dhala impact structure, India
Plot showing the variation in Natural Remanent Magnetization (NRM) and Koenigsberger (Q) ratio with magnetic susceptibility. Cross symbols show mean values, and dashed ellipses represent two-dimensional 95% confidence ellipses based on the covariance of the log-transformed variables (green: unshocked granite and diorite; blue: monomict breccia; red: impact melt).
