Fig. 2: Distributions of a Cd concentrations, b δ114Cd, c phosphate concentrations, and d oxygen concentrations, along the GA02 Leg 2 transect.

From: Anthropogenic emissions of volatile Cd detected in western tropical North Atlantic surface seawater

Fig. 2: Distributions of a Cd concentrations, b δ114Cd, c phosphate concentrations, and d oxygen concentrations, along the GA02 Leg 2 transect.

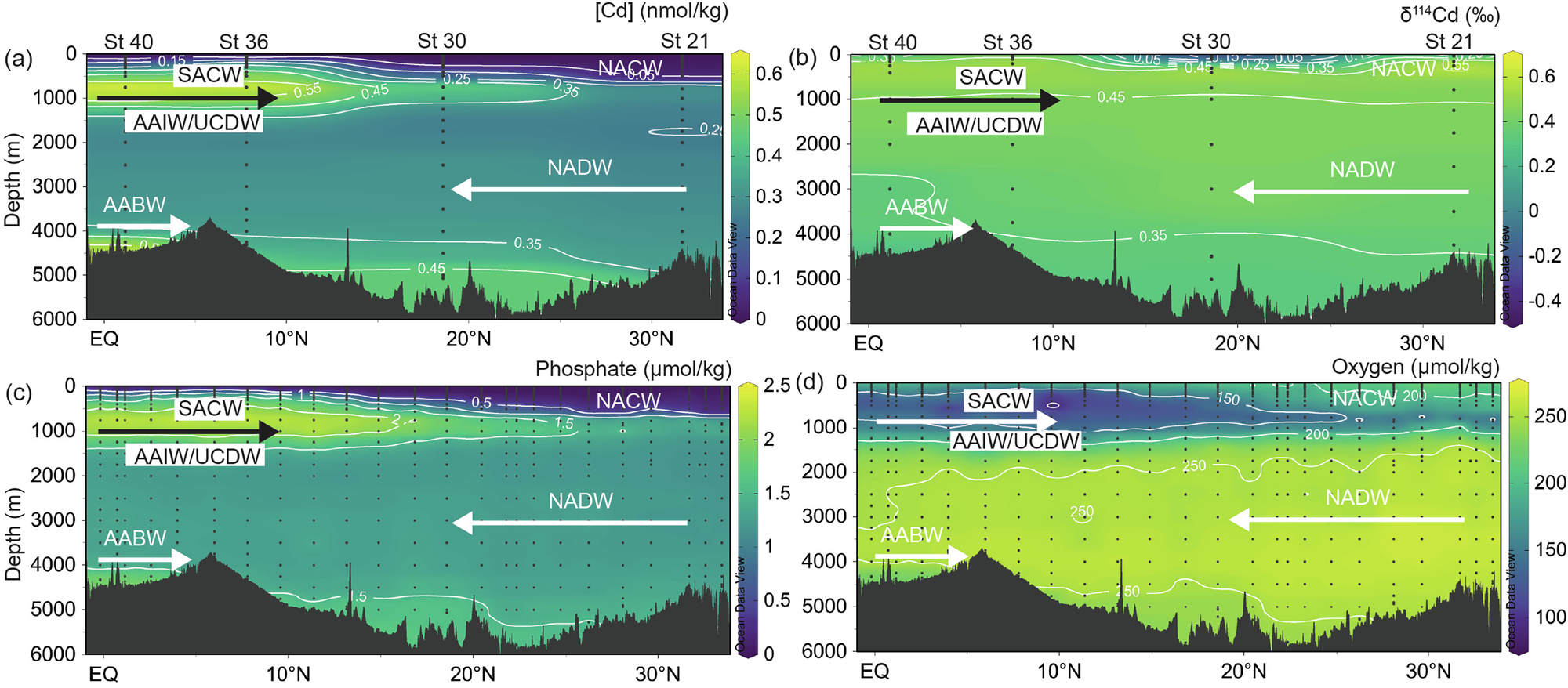

Distributions of a Cd concentrations, b δ114Cd, c phosphate concentrations, and d oxygen concentrations, along the GA02 Leg 2 transect. The white contours represent different values of the variables. AABW Antarctic Bottom Water, AAIW Antarctic Intermediate Water, NACW North Atlantic Central Water, NADW North Atlantic Deep Water, UCDW Upper Circumpolar Deep Water. The map was produced using Ocean Data View74. The [Cd] and δ114Cd data are from this study, whilst the phosphate and oxygen concentrations are from the GEOTRACES Intermediate Data Product (IDP2021v2)48.
