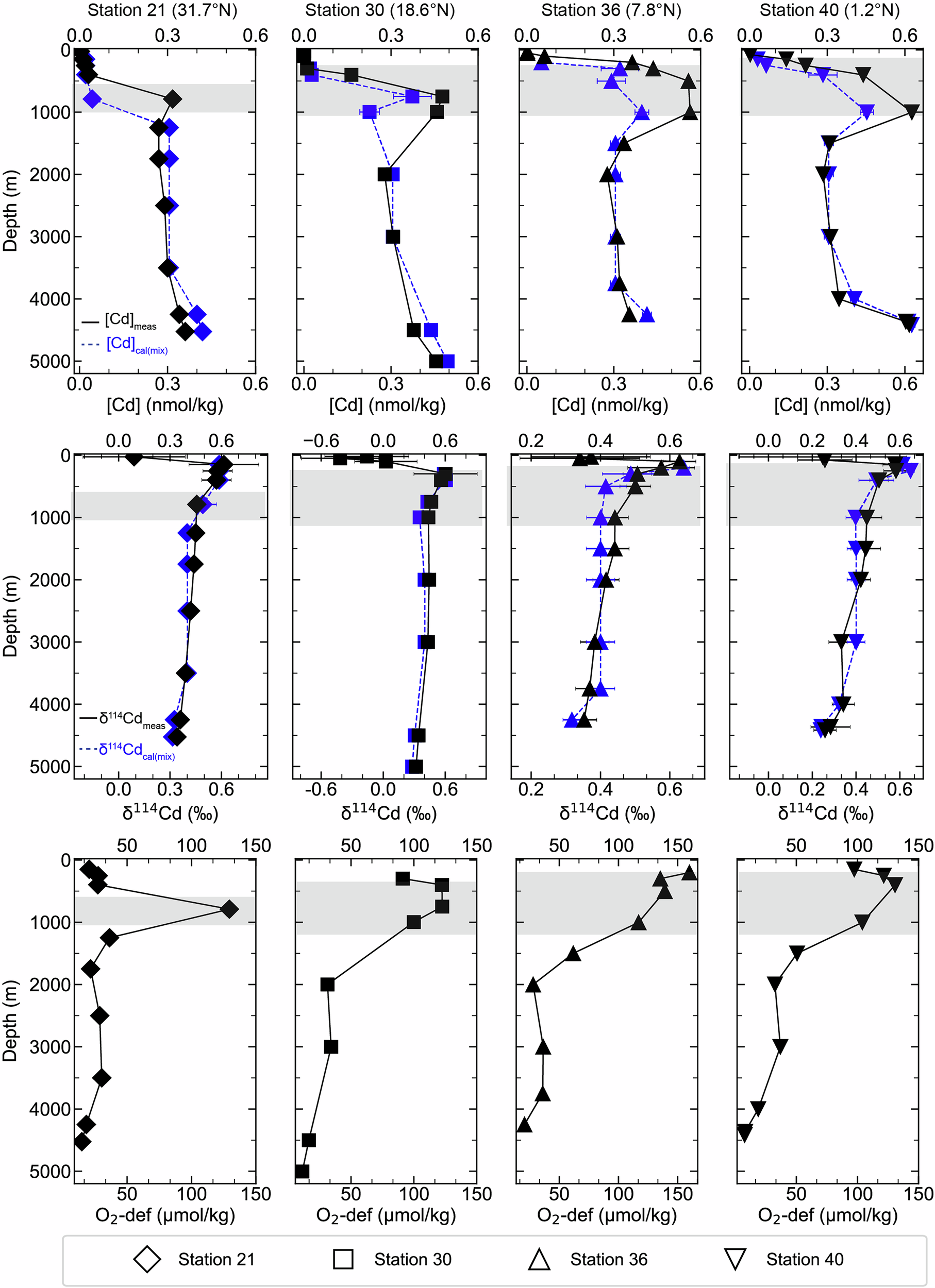

Fig. 3: Depth profiles of Cd concentrations, δ114Cd and dissolved oxygen deficiency O2-def for samples of this study.
From: Anthropogenic emissions of volatile Cd detected in western tropical North Atlantic surface seawater
Top row: Cd concentrations; middle row: δ114Cd, and bottom row: O2-def (see text for definition). Diamonds represent Station 21, squares represent Station 30, triangles represent Station 36, and inverted triangles represent Station 40. The black and blue symbols in the top and middle panels represent the measured data and the modeled [Cd]cal(mix) and δ114Cdcal(mix) values from eOMP-Monte Carlo model, respectively (see text for details). The gray shaded regions highlight the high oxygen deficiency zone associated with remineralization. The error bars for [Cd] and δ114Cd denote the 1sd and 2sd precision, respectively.
