Gradient-based optimization of complex nanoparticle heterostructures enabled by deep learning on heterogeneous graphs

Nature Computational Science volume 6, pages 83–95 (2026)Cite this article

Subjects

A preprint version of the article is available at ChemRxiv.

Abstract

Applications of deep learning (DL) to design nanomaterials are hampered by a lack of suitable data representations and training data. Here we report efforts to overcome these limitations and leverage DL to optimize the nonlinear optical properties of core–shell upconverting nanoparticles (UCNPs). UCNPs, which have applications in fields such as biosensing, super-resolution microscopy and three-dimensional printing, can emit visible and ultraviolet light from near-infrared excitations. We report a large-scale dataset of UCNP emission spectra based on accurate but expensive kinetic Monte Carlo simulations (N > 6,000) and use these data to train a heterogeneous graph neural network using a physically motivated representation of UCNP nanostructure. Applying gradient-based optimization on the trained graph neural network, we identify structures with 6.5× higher predicted emission under 800-nm illumination than any UCNP in our training set. Our work reveals design principles for UCNP heterostructures and presents a roadmap for DL-based inverse design of nanomaterials.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

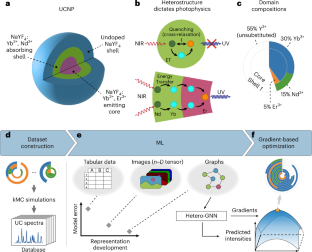

Fig. 1: DL approach to enable UCNP heterostructure optimization.

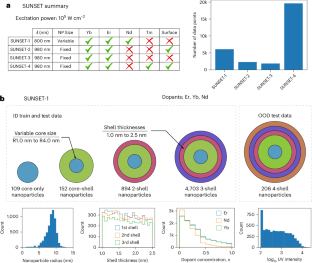

Fig. 2: Description of SUNSET datasets.

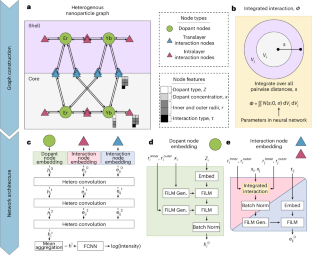

Fig. 3: UCNP graph representation and hetero-GNN model architecture.

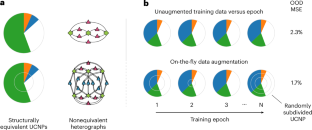

Fig. 4: Increasing hetero-GNN accuracy using on-the-fly data augmentation to promote subdivision invariance.

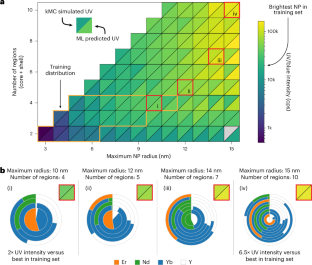

Fig. 5: Gradient-based optimization of UCNP heterostructure.
