Fig. 4: Longitudinal transcriptome study.

From: BNT162b2 vaccination enhances interferon-JAK-STAT-regulated antiviral programs in COVID-19 patients infected with the SARS-CoV-2 Beta variant

Fig. 4

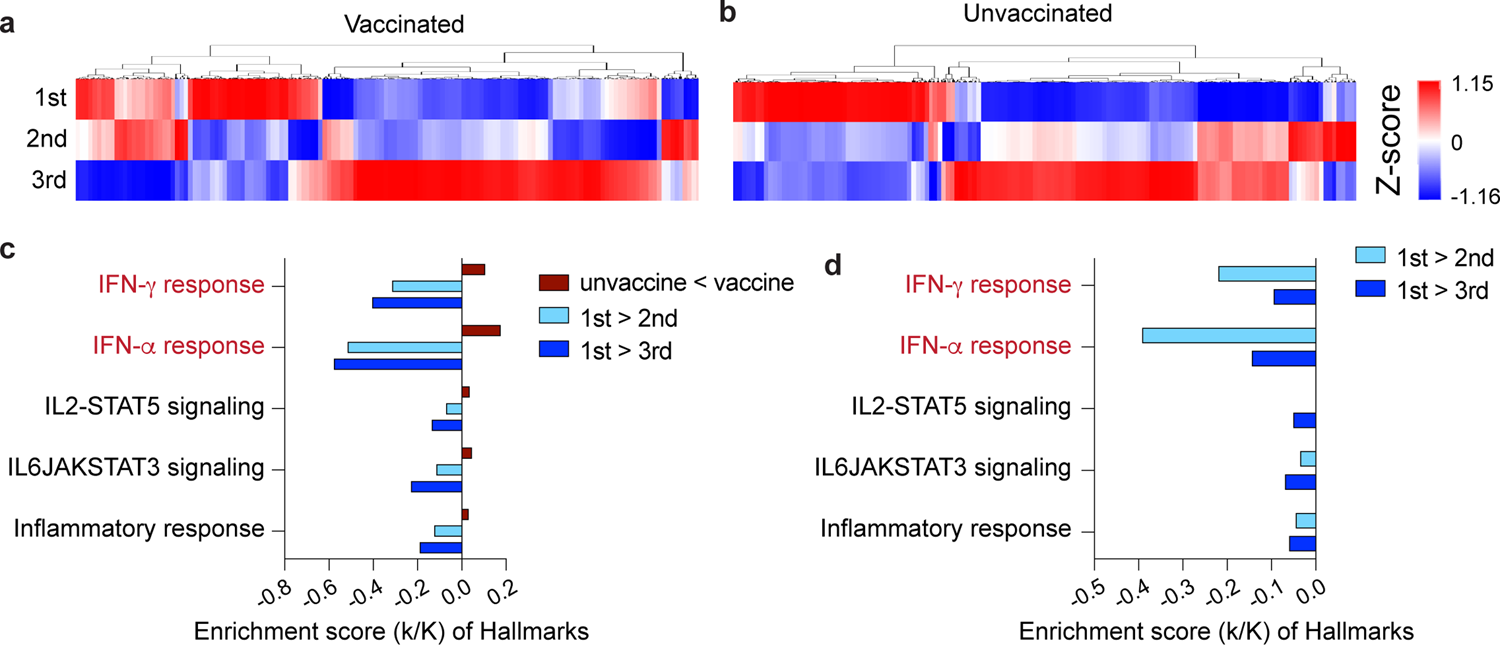

a, b Heatmap shows the expression levels of 522 genes significantly regulated in vaccinated (a) and unvaccinated (b) patients throughout the 6-week longitudinal study (analysis of samples from the three time windows). Each sample is hierarchically clustered by using their adjacency scores as distance. c, d Genes reduced significantly in the longitudinal analysis of vaccinated (c) and unvaccinated (d) were significantly enriched in Hallmark Gene Sets (FDR q value < 0.005). All hallmarks are related to immune regulation.
