Fig. 4: Comparison of individual tympanograms from smartphone-based and commercial tympanometer.

From: Performing tympanometry using smartphones

Fig. 4

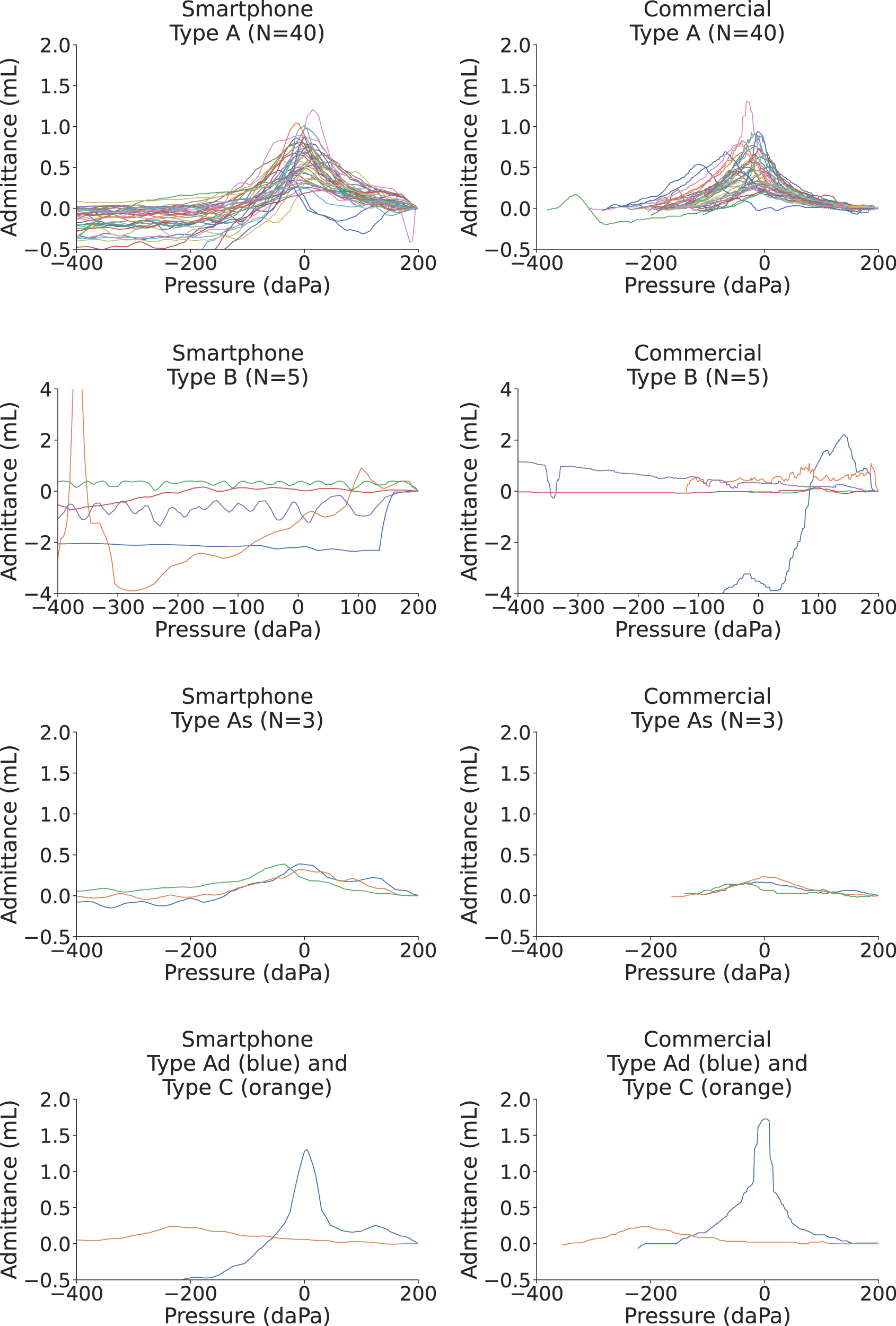

We show the plots for 40 type A, 5 type B, 3 type As, 1 type Ad, and 1 type C tympanograms measured by the commercial tympanometer, and tympanograms from the same ear as obtained by the smartphone-based tympanometer. Source data are provided in Supplementary Data 1.
