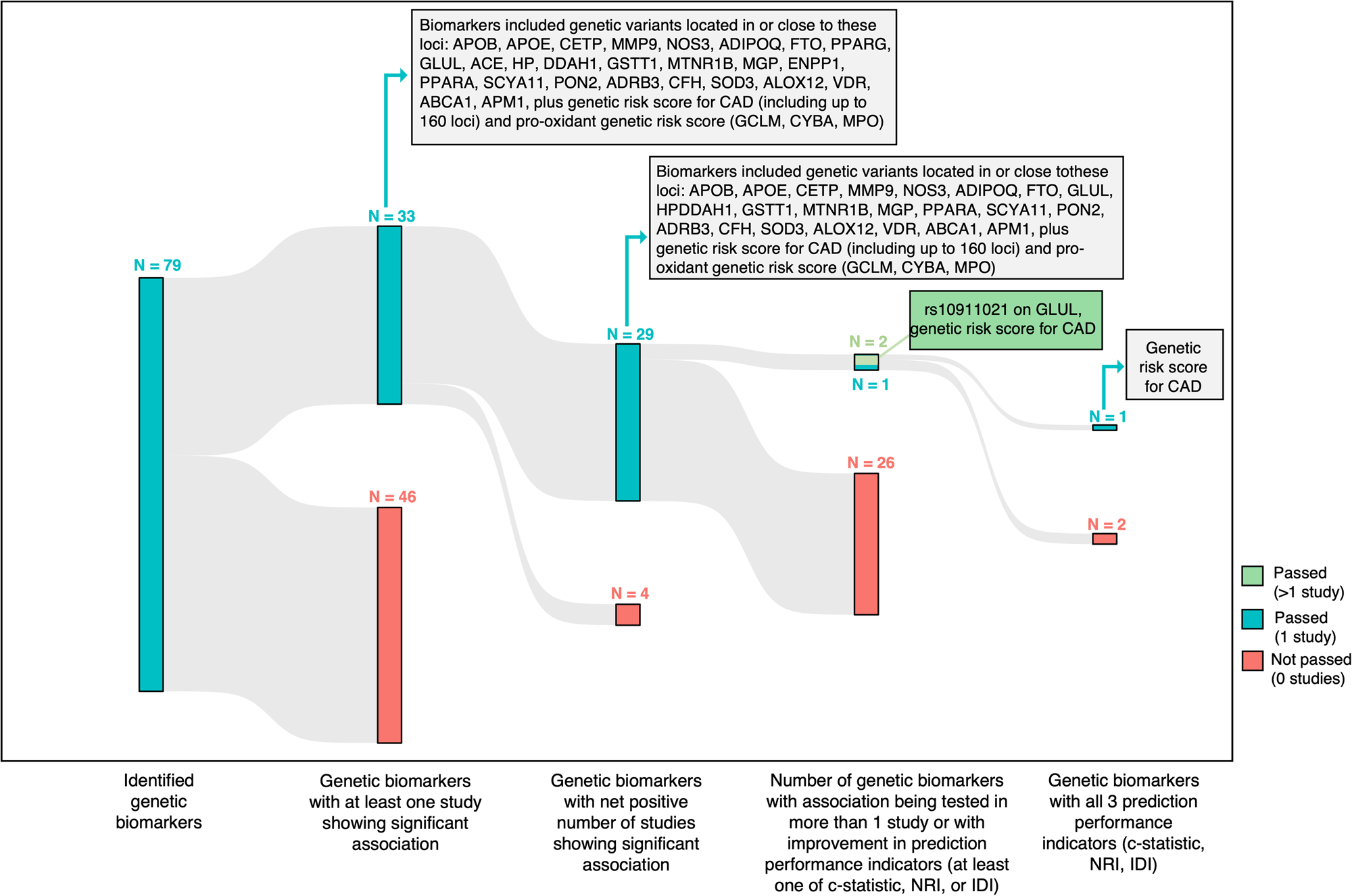

Fig. 7: Sankey diagram showing the funneling of identified genetic biomarkers through sequential filtering steps. | Communications Medicine

Fig. 7: Sankey diagram showing the funneling of identified genetic biomarkers through sequential filtering steps.

From: Precision prognostics for cardiovascular disease in Type 2 diabetes: a systematic review and meta-analysis

Fig. 7: Sankey diagram showing the funneling of identified genetic biomarkers through sequential filtering steps.The alternative text for this image may have been generated using AI.

The number of biomarkers passing or not passing each step (based on the criteria specified at the bottom of the diagram) is depicted at the top of the colored bars, with biomarkers passing all steps having the strongest predictive performance value.
