Fig. 3: Epidemiological characteristics of clinical polymyxin-resistant CRKP strains. | Communications Medicine

Fig. 3: Epidemiological characteristics of clinical polymyxin-resistant CRKP strains.

From: Increasing polymyxin resistance in clinical carbapenem-resistant Klebsiella pneumoniae strains in China between 2000 and 2023

Fig. 3

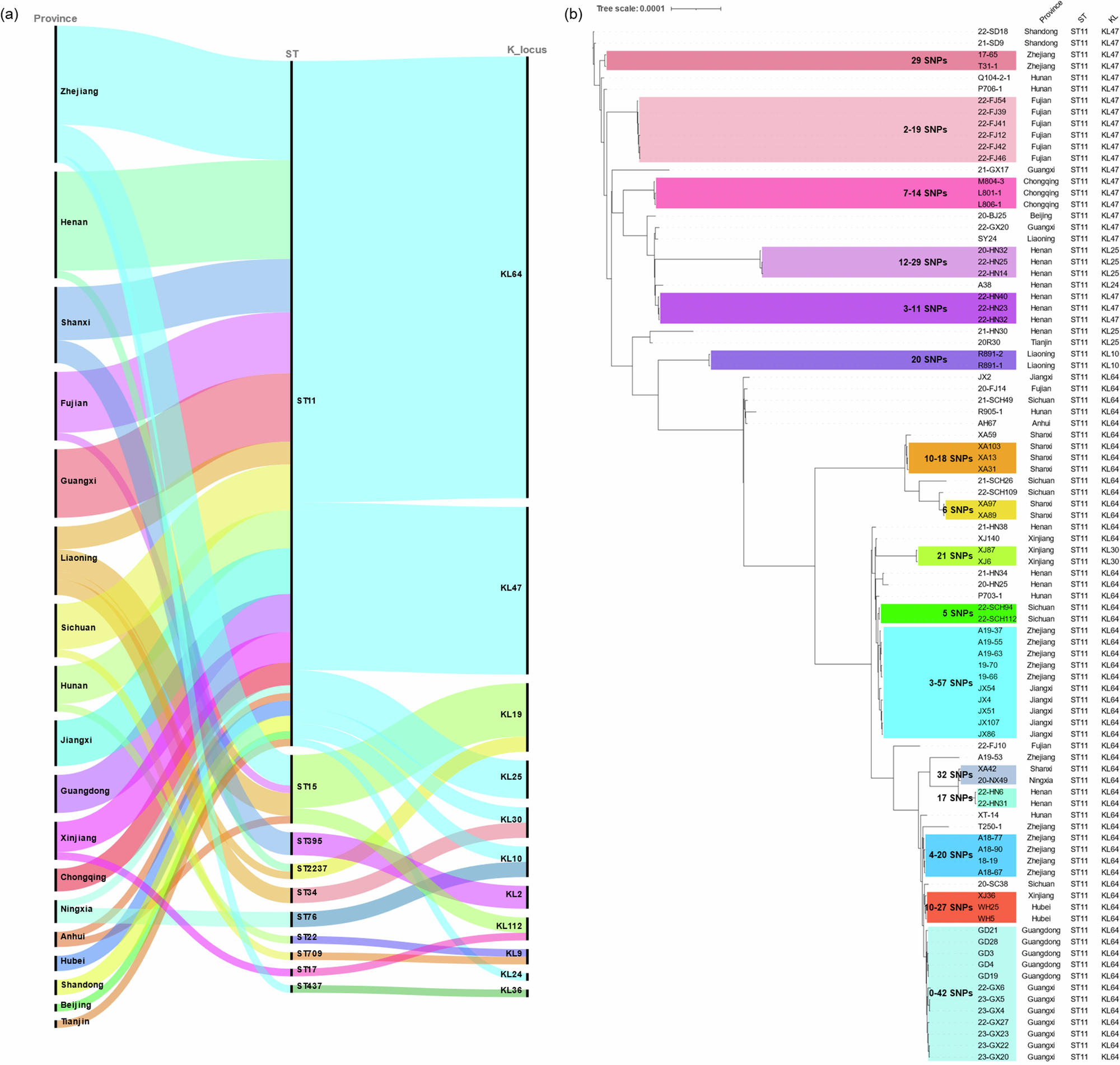

a Sankey plot showing the degree of association between the provinces from which the polymyxin-resistant CRKP strains were recovered, and the STs and KL types of such strains. Width of the line was proportional to the number of isolates. b Phylogenetic analysis of 90 ST11 polymyxin-resistant CRKP isolates. Strains covered by the same color on the phylogenetic tree represent the clonal transmission cluster with close SNPs distance. The three columns on the right depicted the origin, ST and KL type of ST11 polymyxin-resistant CRKP isolates, respectively.
