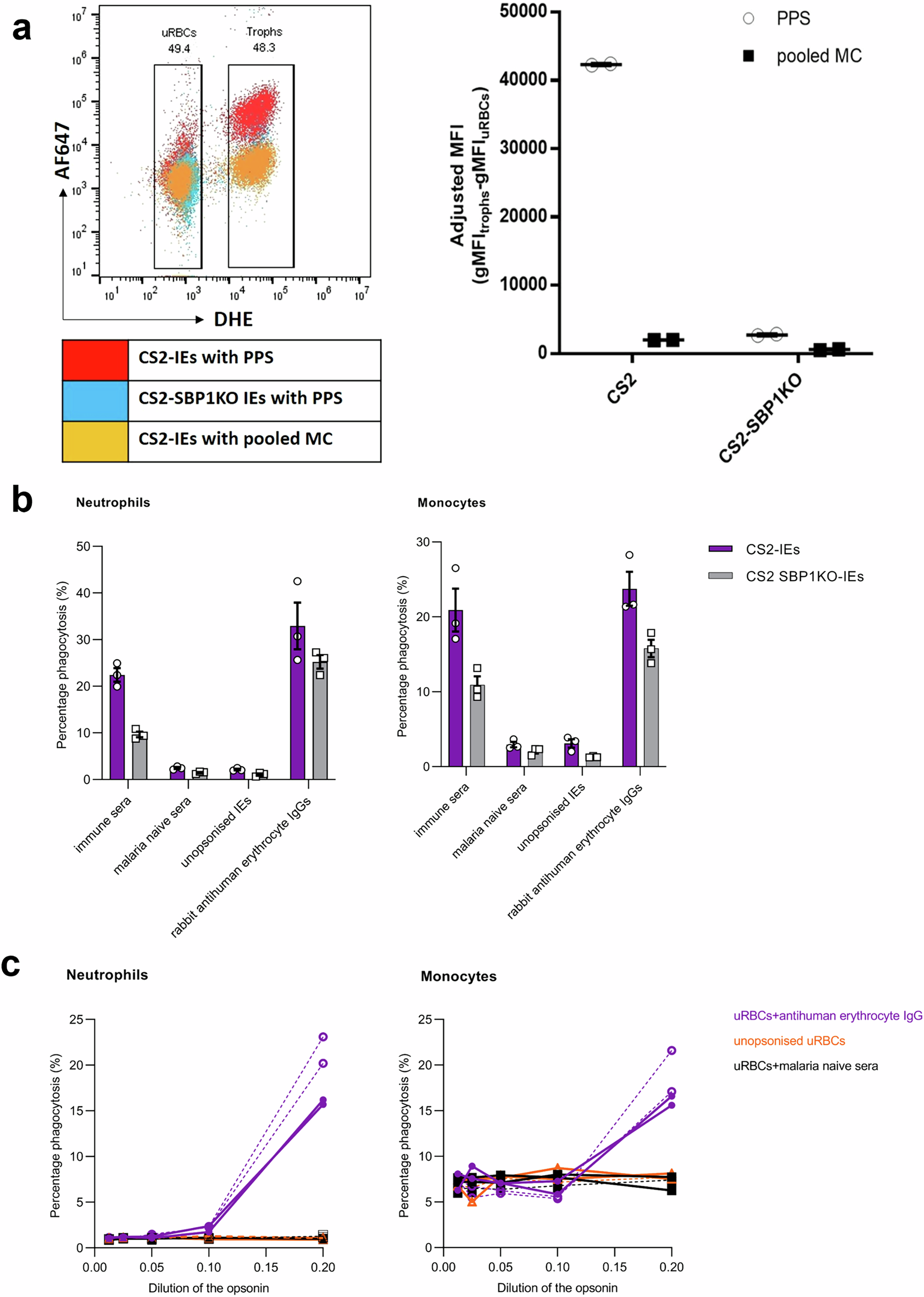

Fig. 5: PfEMP1 is a major target for antibodies that promote phagocytosis of P. falciparum IEs by neutrophils and monocytes in whole blood.

a Flow cytometry-derived overlay of recognition of DHE-labelled parasite line CS2 and CS2 SBP1KO (skeleton binding protein 1 knockout) IEs by immune plasma (PPS, pooled positive plasma) and non-immune plasma (Melbourne controls, MC). IEs were labelled with dihydroethidium (DHE) and the human antibodies binding to IEs were recognised by an anti-human secondary antibody conjugated to Alexa Fluor 647 (AF647). The binding of IEs was given as an adjusted median fluorescent intensity (MFI) value, which is the geometric MFI (gMFI) signal from trophozoite-stage parasites (trophs), minus the gMFI signal from uninfected red blood cells (uRBCs). Graphs show the adjusted MFI for CS2 and CS2 SBP1KO-IEs opsonised with either immune plasma (PPS) or pooled malaria naïve plasma (pooled MC) from a single experiment carried out in duplicate. b ADP of CS2 and CS2 SBP1KO-IEs by neutrophils and monocytes in whole blood. Phagocytosis was expressed as the mean and standard error of the mean (SEM) of three individual whole blood donors run in duplicates. Three opsonins were used, namely, immune plasma, malaria naive plasma, and rabbit antihuman erythrocyte IgGs, along with an unopsonised IE control. c The effect of artificial ageing of uRBCs on phagocytosis. uRBCs were treated with 1 mM BS3 for 15 min at 37 °C. uRBCs were opsonised with rabbit antihuman erythrocyte IgGs (purple solid or dashed lines, open and closed circles), or pooled malaria naive plasma (black solid or dashed lines, open and closed squares), or were unopsonised (red solid or dashed lines, open and closed triangles). The solid lines represent untreated uRBCs, while the dashed lines represent uRBCs treated with BS3. The results are expressed as mean and SEM from two whole blood donors conducted in duplicates.
