Fig. 3: Comparison of average preoperative (Preop.) and postoperative (Postop.) responses in oral glucose tolerance test (OGTT) vs. mixed meal test (MMT). | Communications Medicine

Fig. 3: Comparison of average preoperative (Preop.) and postoperative (Postop.) responses in oral glucose tolerance test (OGTT) vs. mixed meal test (MMT).

From: Computational modeling enables individual assessment of postprandial glucose and insulin responses after bariatric surgery

Fig. 3: Comparison of average preoperative (Preop.) and postoperative (Postop.) responses in oral glucose tolerance test (OGTT) vs. mixed meal test (MMT).

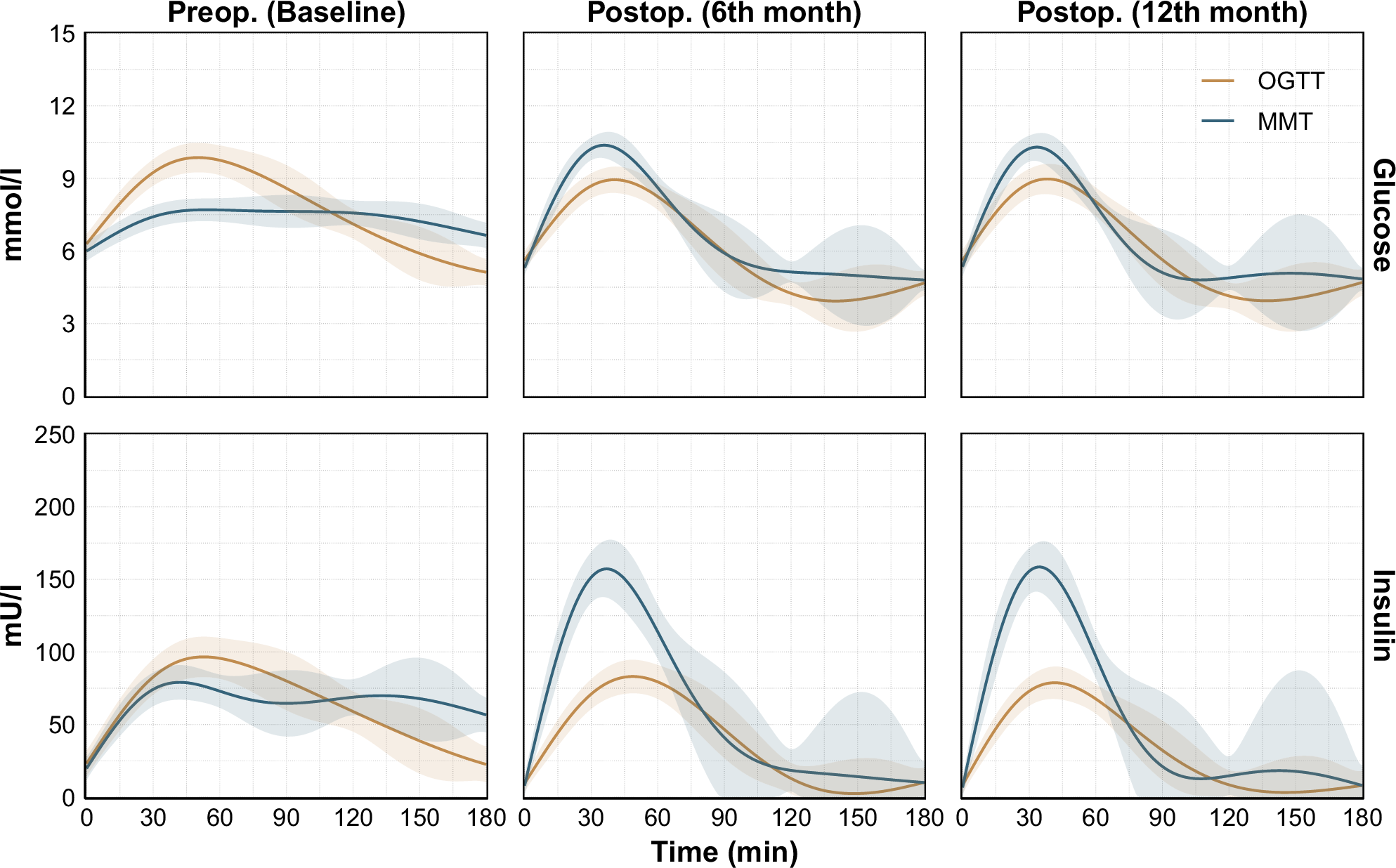

This figure directly contrasts the model-predicted average glucose and insulin responses between the oral glucose tolerance test (OGTT) and the mixed meal test (MMT) at each study visit. This comparison highlights how the body’s glucose and insulin regulation differs when challenged with glucose alone versus a more complex mixed meal. Shaded areas represent 95% confidence intervals (CI) derived from n = 1000 simulation samples, which indicate the statistical certainty of the predicted average response curves.
