Extended Data Fig. 3: Additional dI/dV imaging and spectra measurements of molecule 1 and molecule 3.
From: Intelligent synthesis of magnetic nanographenes via chemist-intuited atomic robotic probe

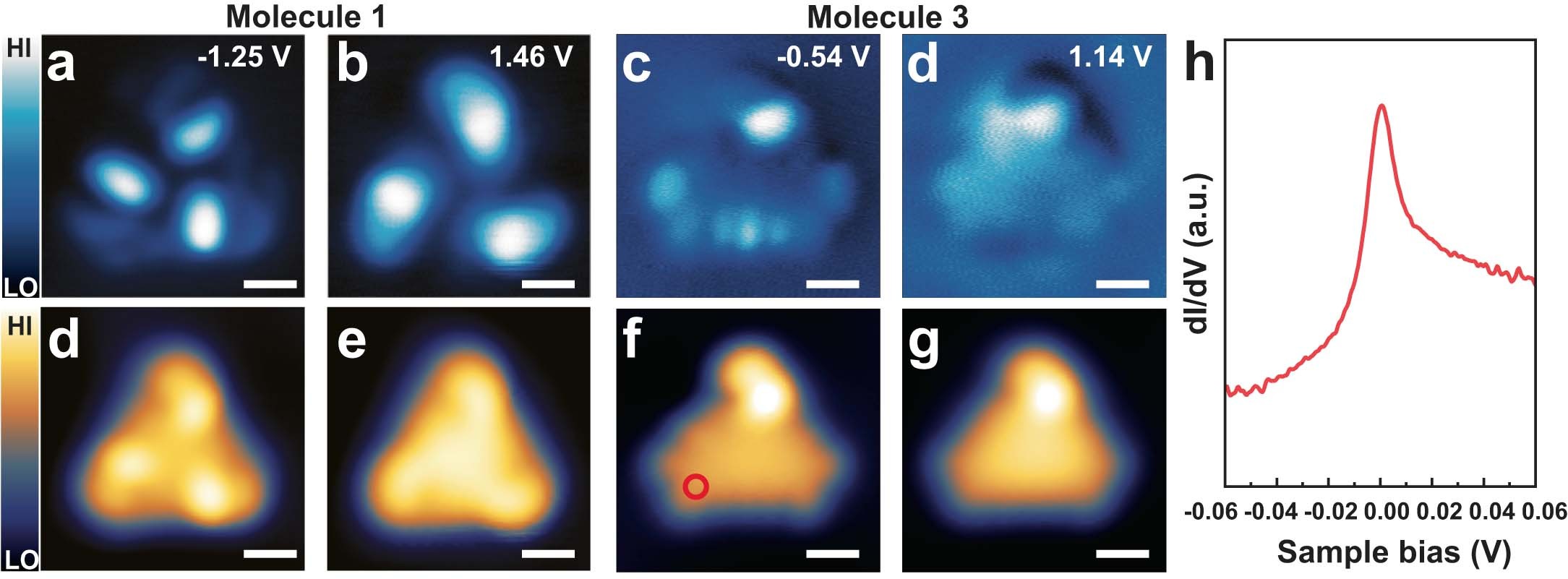

Constant-current dI/dV maps of the SOMOs and SUMOs of molecule 1 (a-b) and the corresponding STM images (d-e) taken simultaneously. Constant-current dI/dV maps of the SOMOs and SUMOs of molecule 3 (c-d) and the corresponding STM images (f-g) taken simultaneously. (h) dI/dV spectra recorded near the EF. The curve corresponds to the red circle shown in (f). Setpoint: Vs = 0.06 V, It = 1.2 nA. Modulation voltage: 2 mV. Scale bar: 5 Å.
