Fig. 5: Participant-specific interplay between TAWSS, BA and fibrosis as measured using BV and IIR.

From: Left atrial wall shear stress correlates with fibrosis in patients with atrial fibrillation

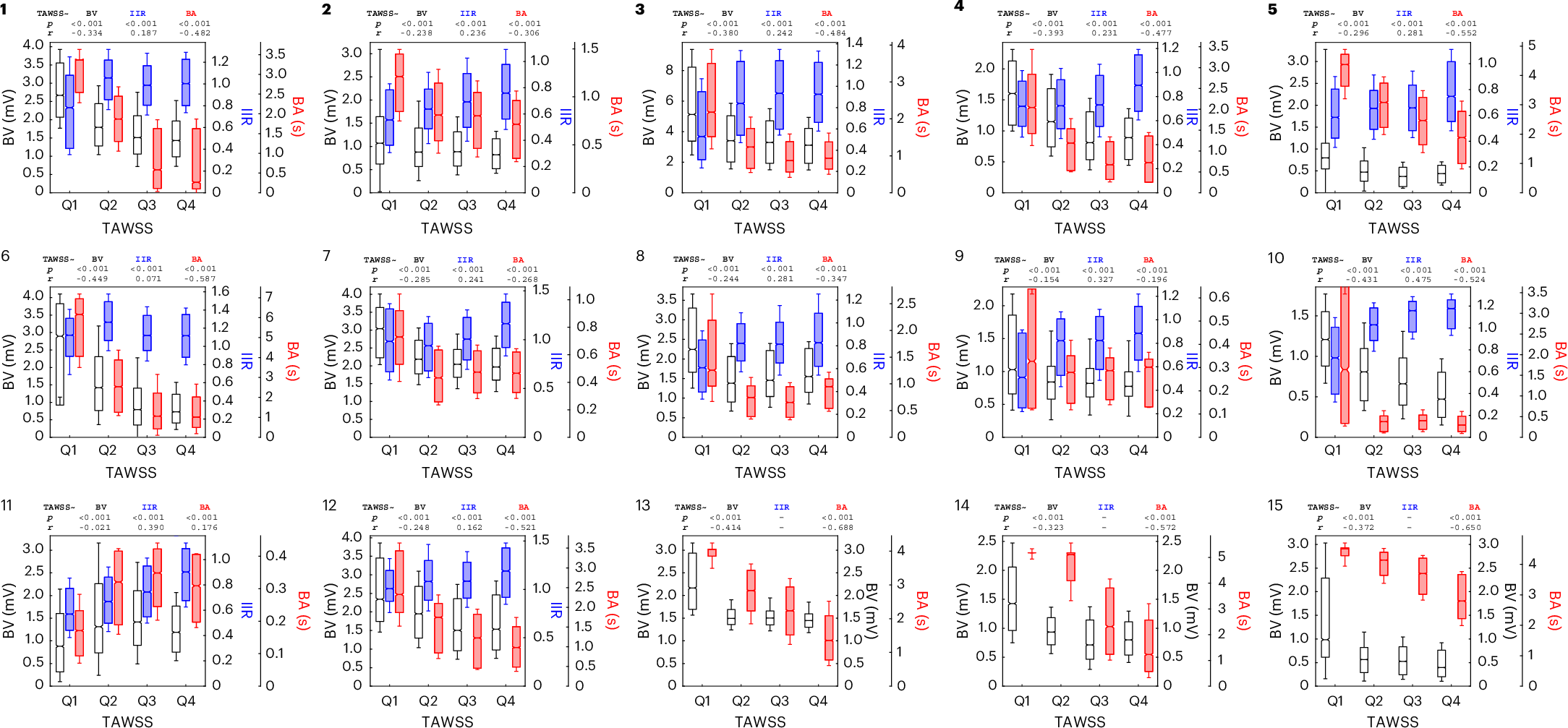

Fig. 5: Participant-specific interplay between TAWSS, BA and fibrosis as measured using BV and IIR.The alternative text for this image may have been generated using AI.

The TAWSS is divided into quartiles (Q1–Q4). Above each chart is the corresponding two-sided P value from the Kruskal–Wallis test between the quartiles of TAWSS and BV, IIR or BA and the Pearson correlation coefficient (r) between all data points of the same variable pairs. The boxes correspond to the interquartile range, the notches to the 95% confidence interval of the median and the whiskers to the s.d. LGE-CMR acquisitions were not available for participants 13–15. Sample sizes: 1: 29,492, 2: 27,780, 3: 37,670, 4: 23,899, 5: 28,750, 6: 28,371, 7: 18,797, 8: 19,376, 9: 23,103, 10: 20,840, 11: 20,444, 12: 22,615, 13: 30,219, 14: 21,990 and 15: 35,771.
