Fig. 6: Relationship between fibrosis distribution and TAWSS. | Nature Cardiovascular Research

Fig. 6: Relationship between fibrosis distribution and TAWSS.

From: Left atrial wall shear stress correlates with fibrosis in patients with atrial fibrillation

Fig. 6: Relationship between fibrosis distribution and TAWSS.The alternative text for this image may have been generated using AI.

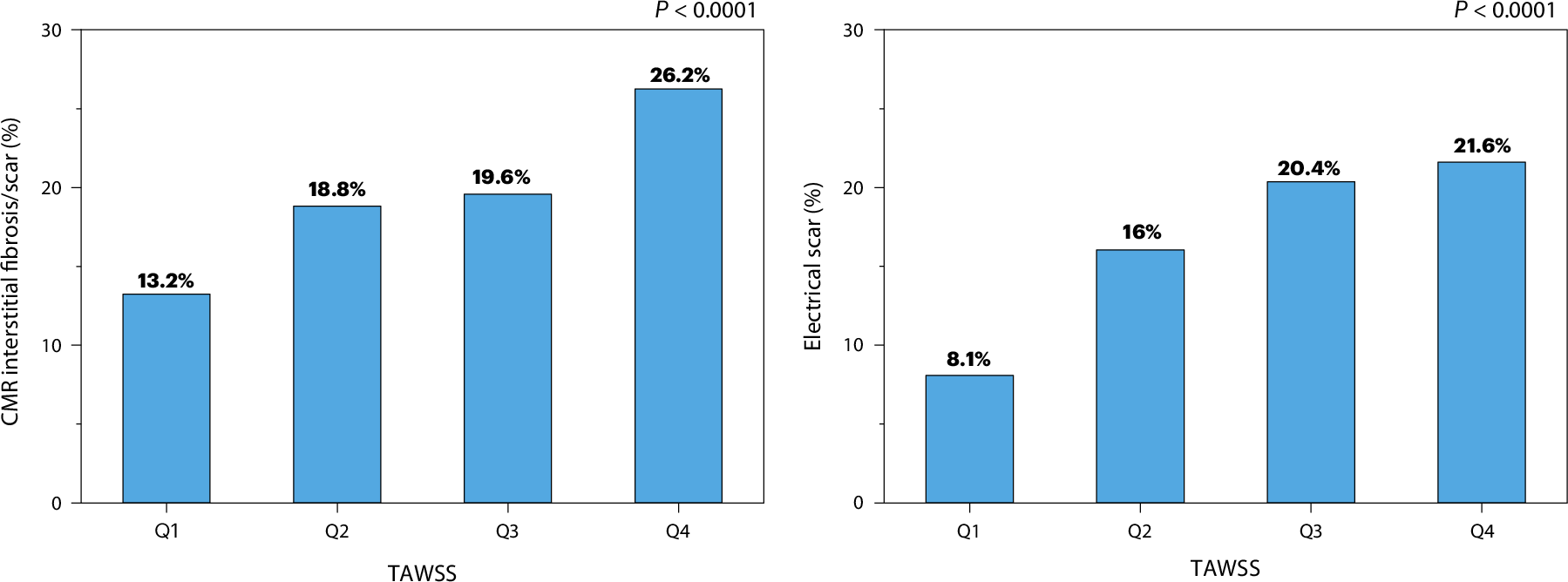

CMR-derived fibrosis (left; IIR ≥ 1.2, n = 301,137) and electrical scar (right; BV < 0.5 mV, n = 389,117) data are shown according to the TAWSS quartiles for the total study population, with the corresponding two-sided P value from the chi-square test.
