Extended Data Fig. 7: Gene expression profile in the RV of the PAB banding and de-banding mouse model.

From: Transcriptional changes of the extracellular matrix in chronic thromboembolic pulmonary hypertension govern right ventricle remodeling and recovery

Extended Data Fig. 7: Gene expression profile in the RV of the PAB banding and de-banding mouse model.

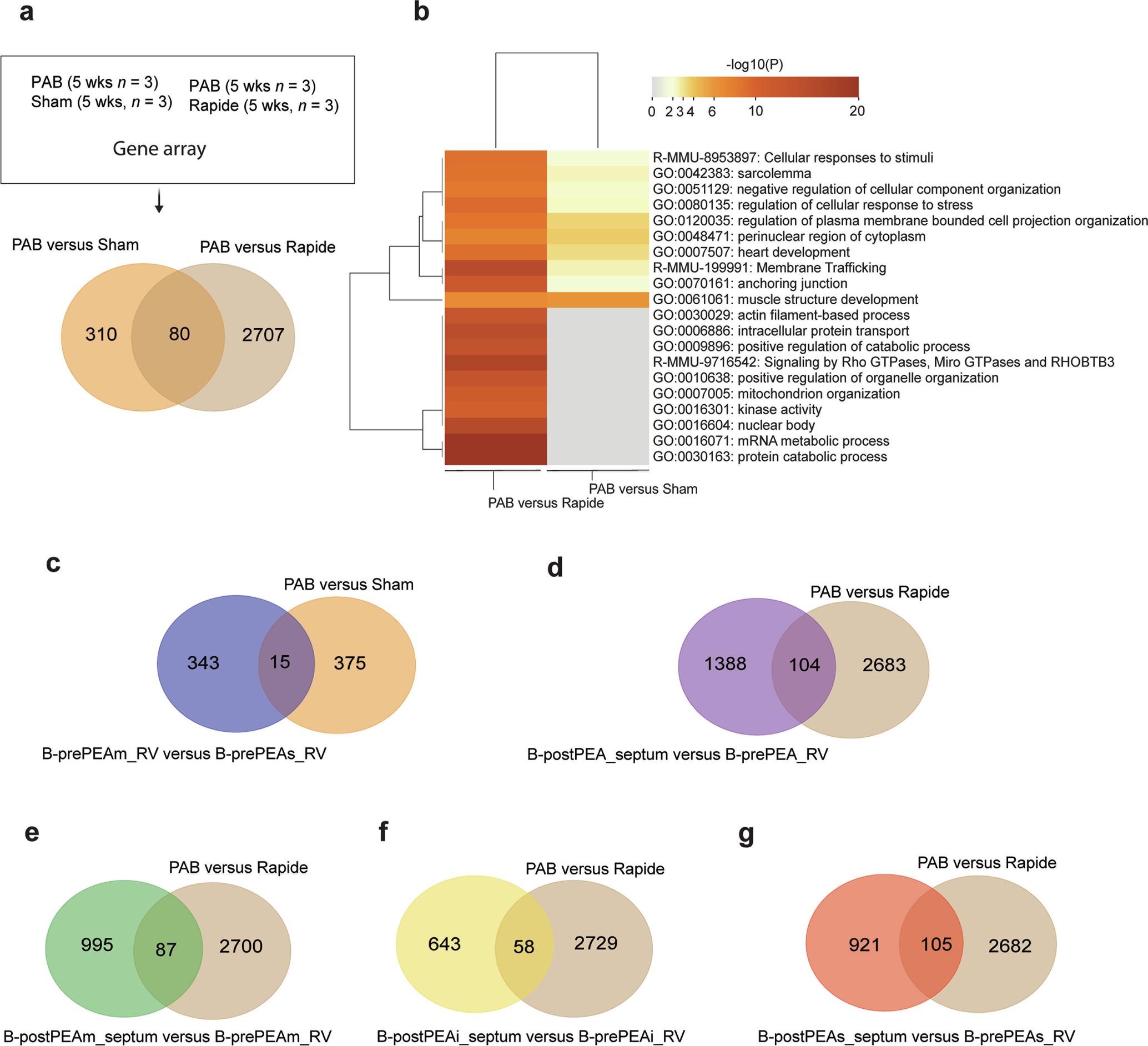

a, Venn diagram shows the common and specific genes in PAB versus Sham and PAB versus Rapide. b, Heatmap visualizes the top 20 overrepresented clusters of terms for all differentially expressed genes among PAB versus Sham and PAB versus Rapide. c-g, Venn diagrams showing the common and specific genes among (c) B-prePEAm_RV versus B-prePEAs_RV and PAB versus Sham, (d) B-postPEA_septum versus B-prePEA_RV and PAB versus Rapide, (e) B-postPEAm_septum versus B-prePEAm_RV and PAB versus Rapide, (f) B-postPEAi_septum versus B-prePEAi_RV and PAB versus Rapide, and, (g) B-postPEAs_septum versus B-prePEAs_RV and PAB versus Rapide. The source data for the re-analyzed data is from ref. 23.
