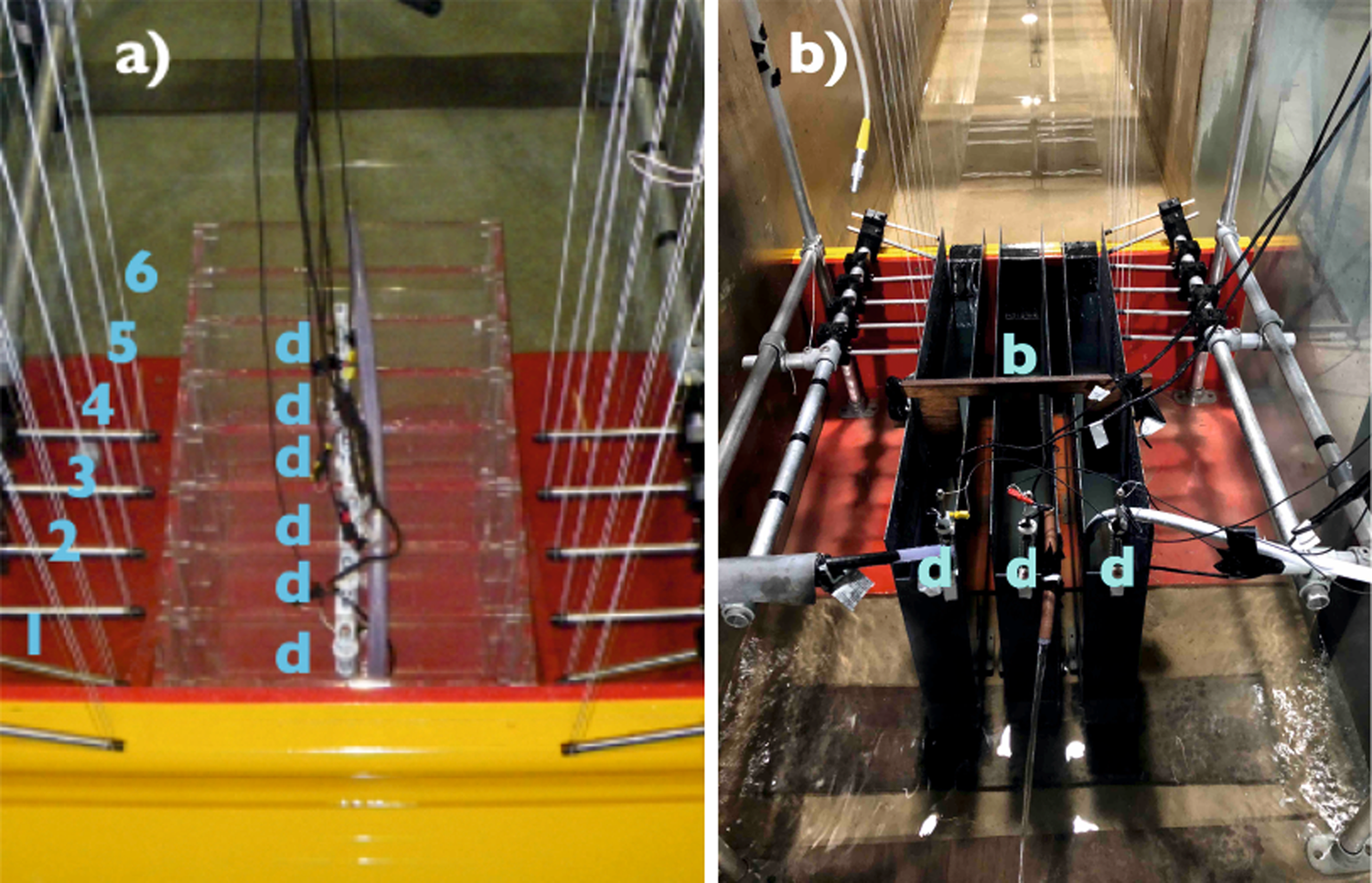

Fig. 10: The experimental setup during the flume tests.
From: A system for in-situ, wave-by-wave measurements of the speed and volume of coastal overtopping
