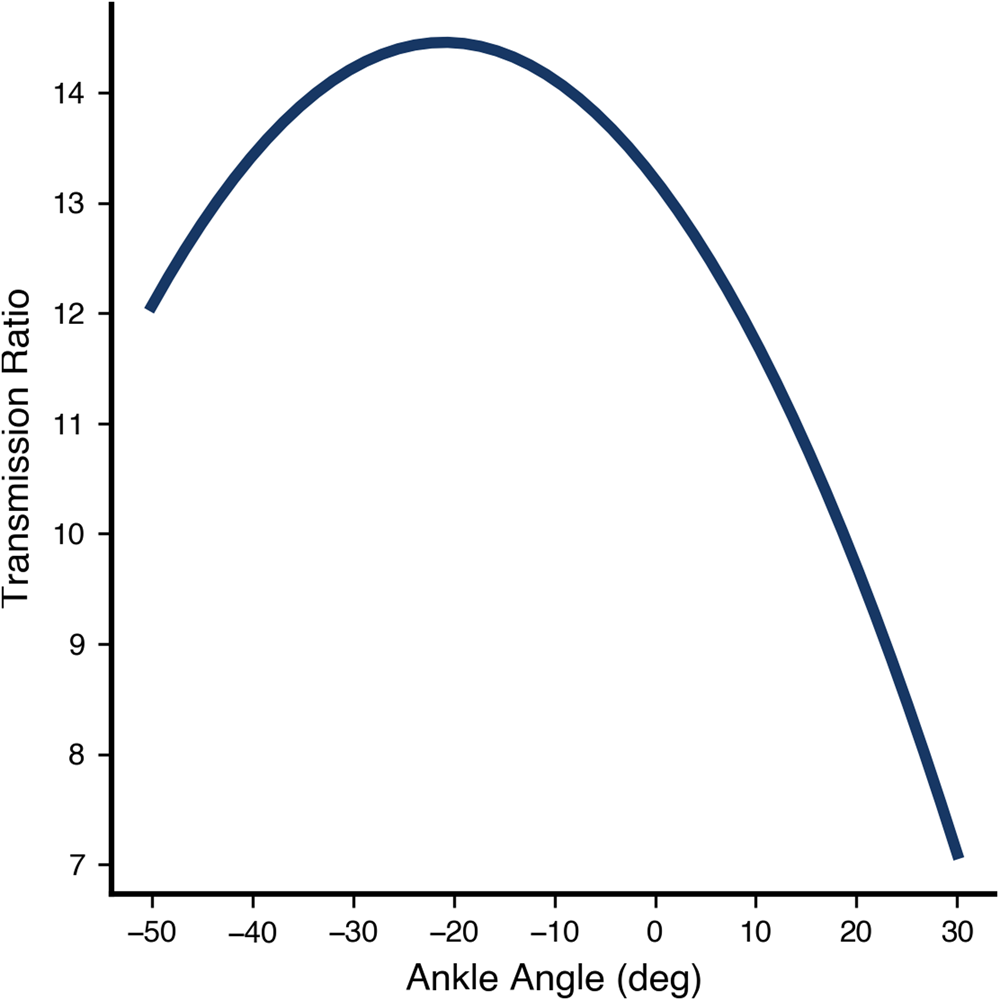

Fig. 5: The transmission ratio curve of the exoskeleton device used in this experiment.
From: The economic value of augmentative exoskeletons and their assistance
Positive ankle angles denote dorsiflexion and negative angles denote plantarflexion. The curve was modeled as a second-order polynomial, and was obtained by taking the derivative of the best-fit third-order polynomial that relates motor angle to ankle angle.
