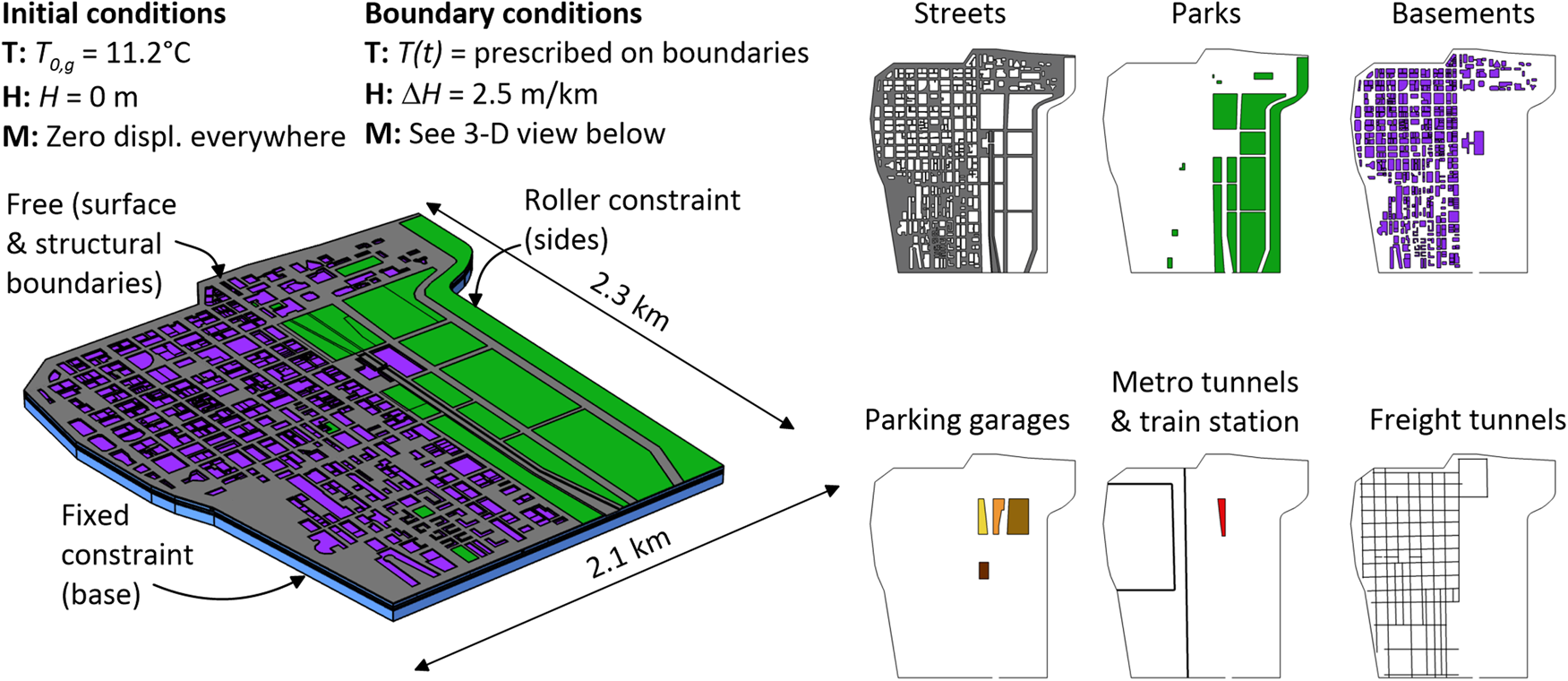

Fig. 5: 3-D computer model of the Chicago Loop.
From: The silent impact of underground climate change on civil infrastructure
The different colors represent different environments characterized by specific initial and boundary conditions (T0,g: initial ground temperature; H: hydraulic head; t: time; \(\Delta H\): change in head per unit reference length).
