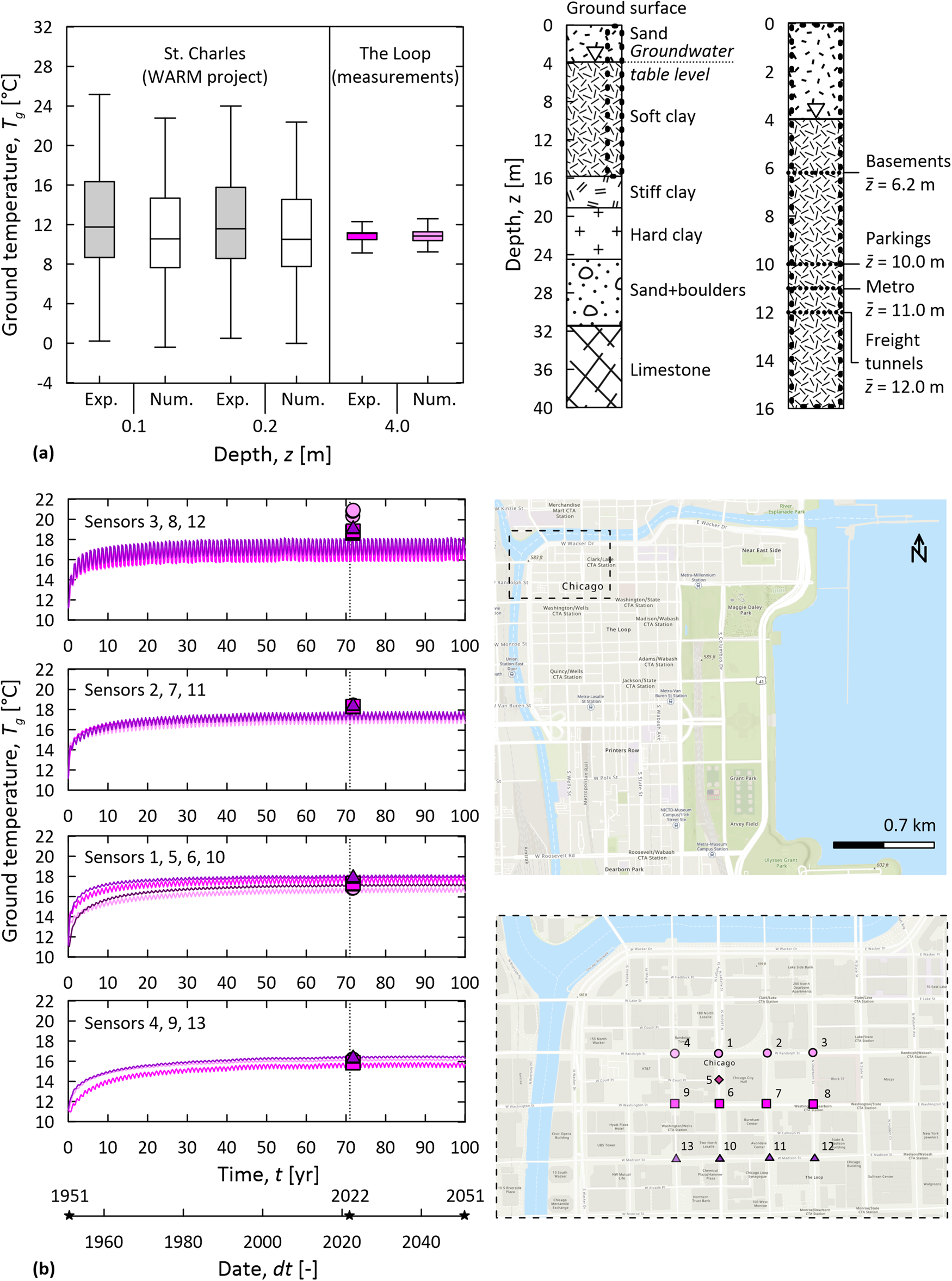

Fig. 6: Validation of the numerical simulation results against experimental monitoring data.
From: The silent impact of underground climate change on civil infrastructure
a Comparison between the ground temperatures Tg provided by the model in Grant Park and recorded at corresponding locations in St. Charles58 and the same Park22 (in the box plot: the center line indicates the median; the box edges indicate a 95% confidence level; the whiskers indicate maximum/minimum); b comparison between the ground temperature trends over time t provided by the model in the heart of the Loop and the sensing network. The plan views illustrating the locations of the sensors have been created with baseline images provided by OpenStreetMap.
