Fig. 9: Schematic illustration of some quantities in Eq. (4).
From: Classifying seismograms using the FastMap algorithm and support-vector machines

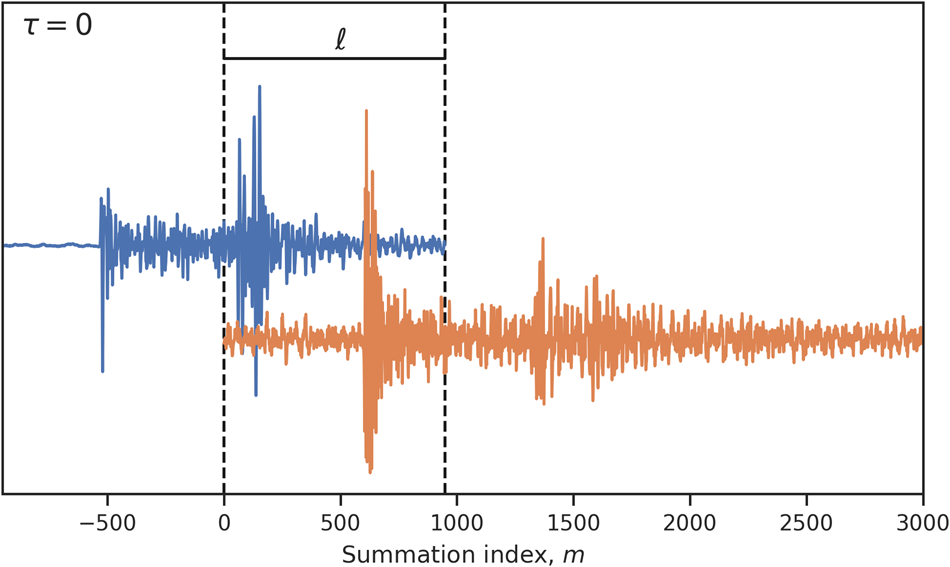

Shows the alignment of a longer waveform in orange with a shorter waveform in blue at the first step in the normalized cross-correlation procedure (τ = 0). The quantity ℓ measures about half the length of the shorter waveform.
