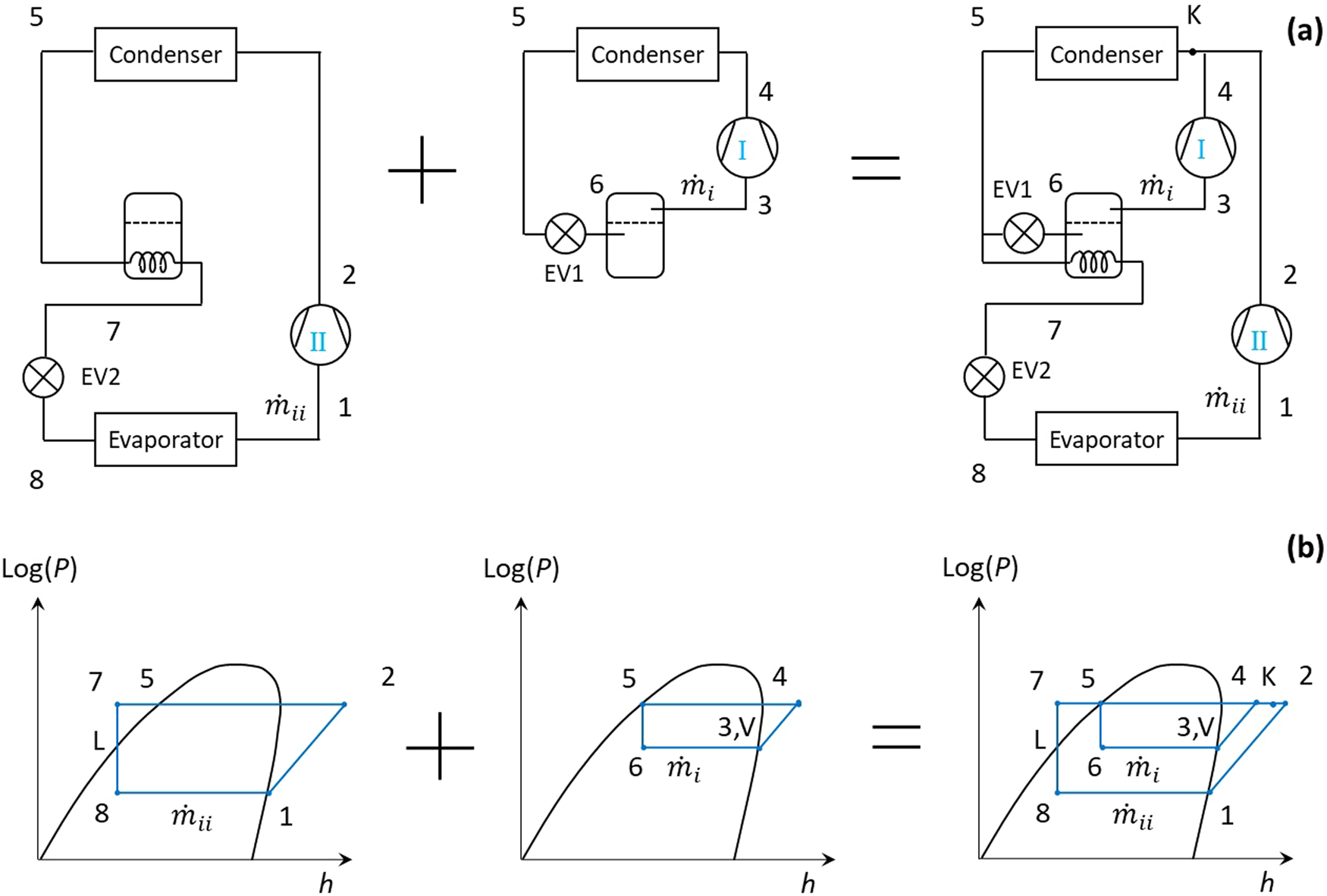

Fig. 10: The proposed cycle superposition approach.
From: A unified approach for the thermodynamic comparison of heat pump cycles
a Cycle layout; (b) pressure-enthalpy diagram.
