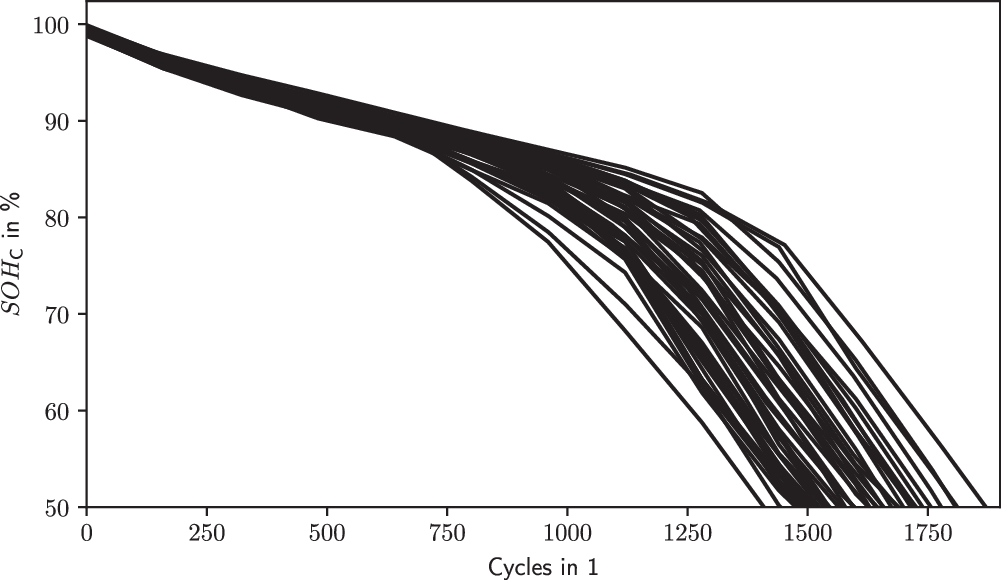

Fig. 5: Increasing variability of SOH_C trajectories with the same initial grading.

SOH_C trajectories of battery cells are graded into group C (data from ref. ⁵⁵, plotted only \({{SOH}}_{{\mbox{C}}}\ge 50 \%\), data preprocessing applied is same as in previous works^13,85,86).
