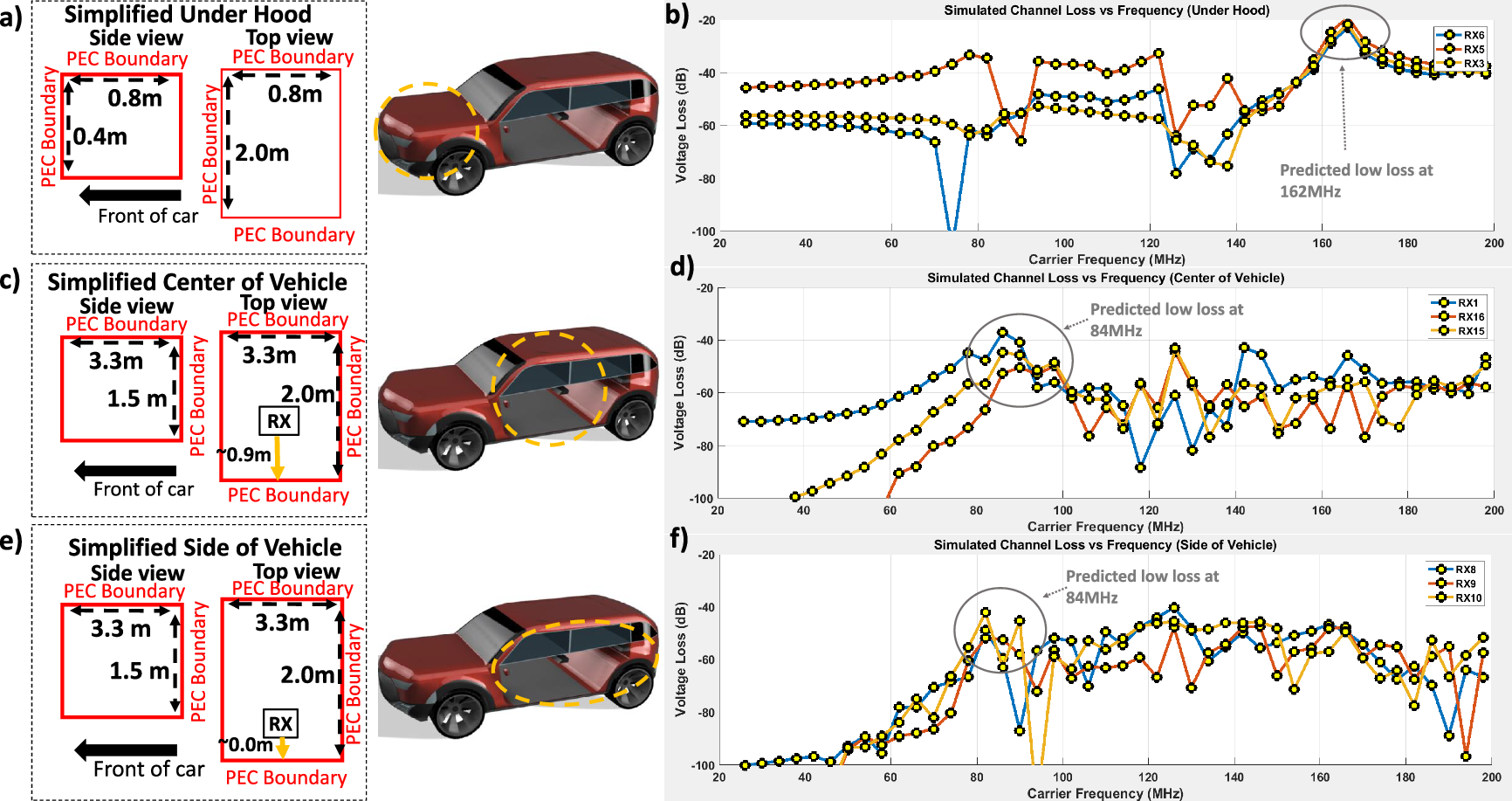

Fig. 7: Simulated channel loss for resonant cavity modes.
From: Electro-quasistatic and resonant cavity car body communication
Electromagnetic numerical analysis of cavity model (with wall approximated as perfect electrical conductor (PEC)) and channel response for resonant mode in the a, b hood c, d center of the main cabin. e, f Side of the main cabin versus excitation frequency.
