Fig. 8: Measured and simulated results for two locations in resonant cavity mode.

From: Electro-quasistatic and resonant cavity car body communication

Fig. 8

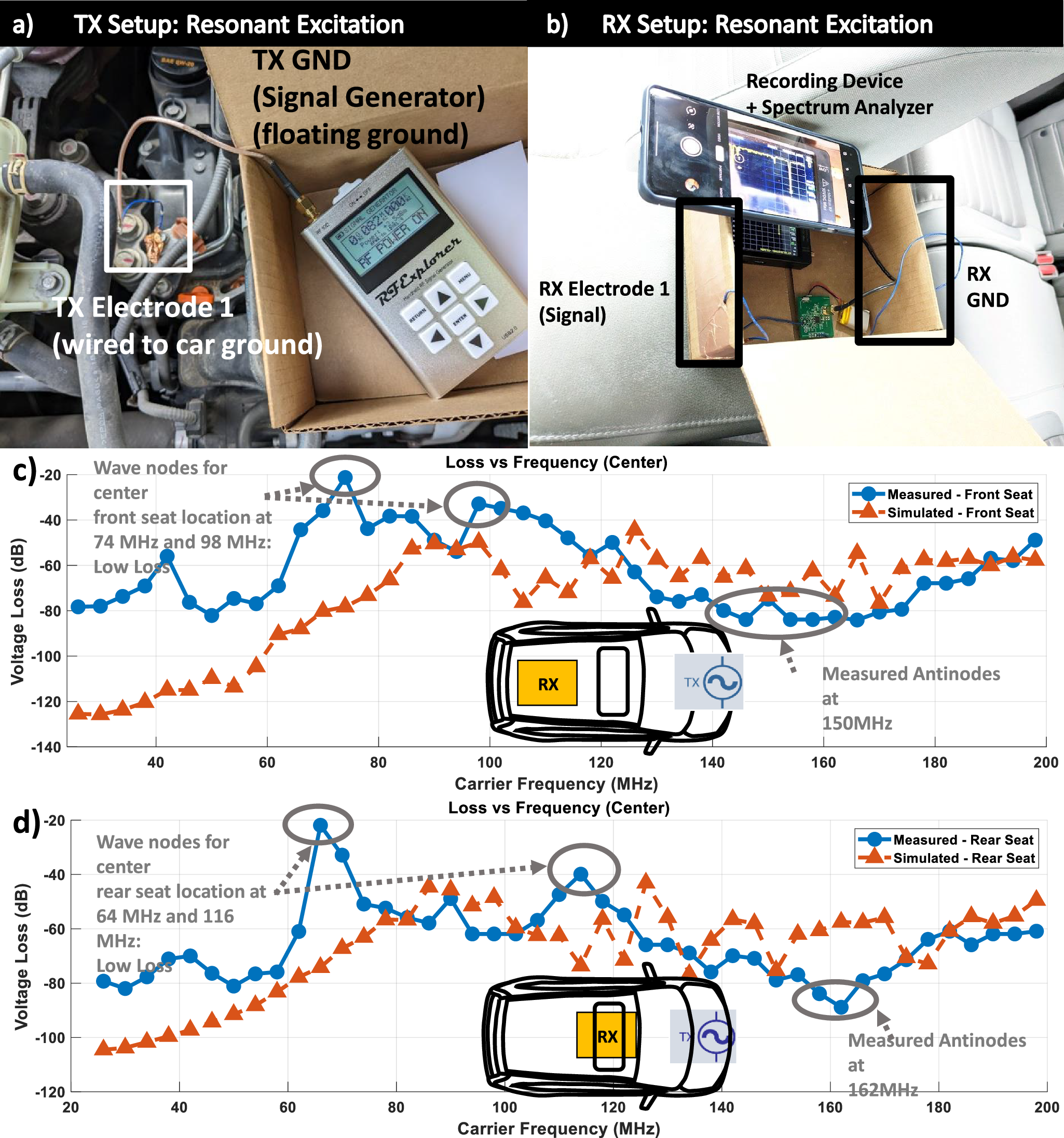

a Measurement setup transmitter (TX) for resonant mode measurements. b Measurement setup receiver (RX) for resonant mode measurements. c Channel response plotted over simulations for front seat and sample location. d Channel response plotted over simulations for rear seat and sample location and device ground (GND) locations.
