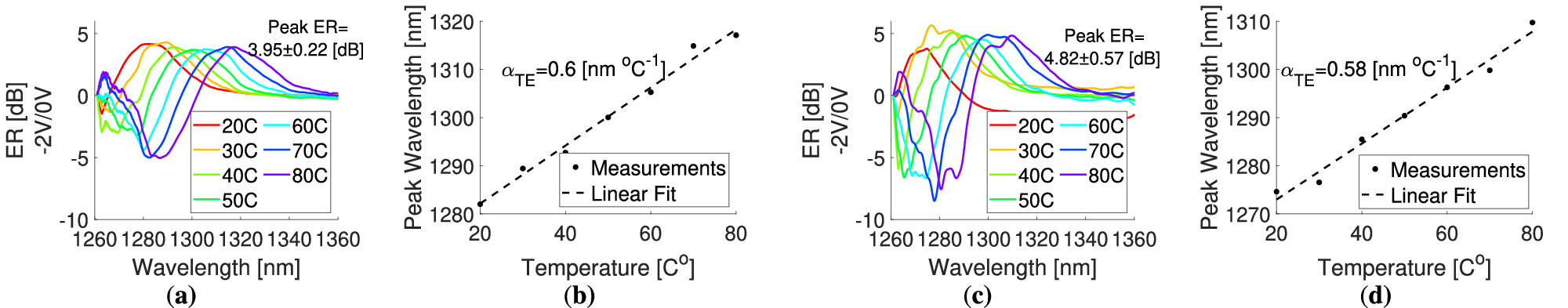

Fig. 7: Static performance under temperature variation.

Extinction ratio (ER) of the Si and SOI-substrate modulators for the −2 V/0 V bias pair and a 20 to 80 °C temperature range in (a) and (c), respectively. The drift of the peak wavelength with temperature is shown for the Si and SOI cases at (b) and (d), respectively.
