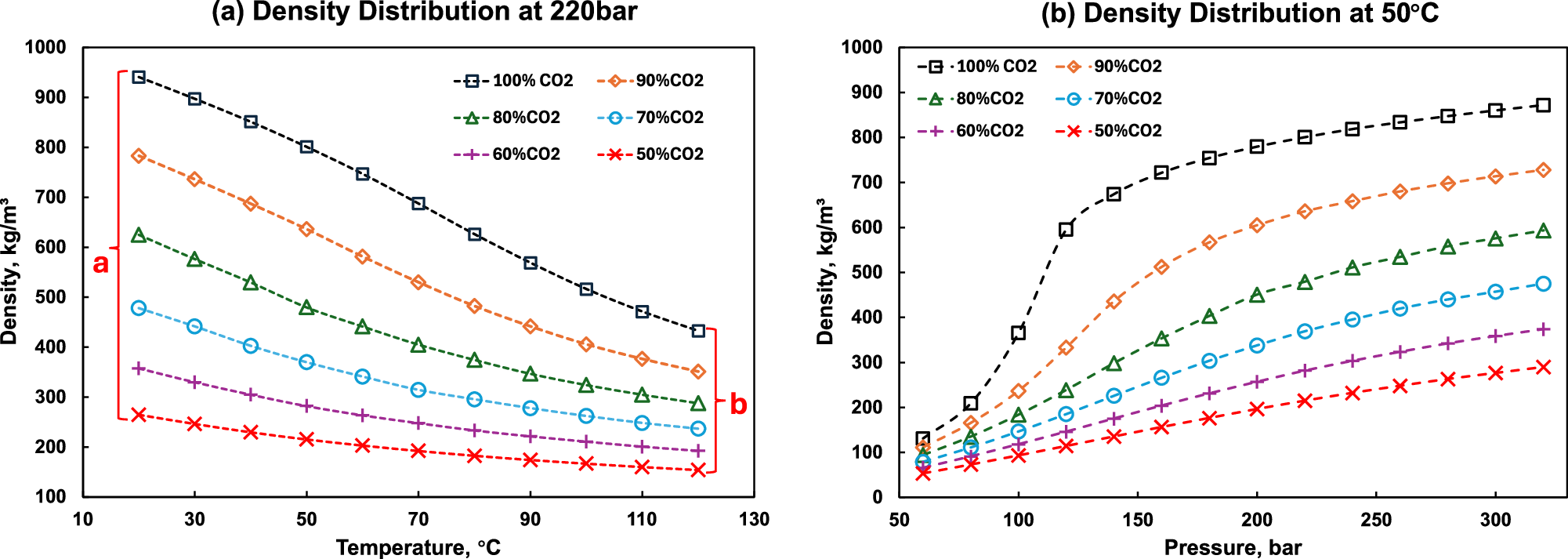

Fig. 3: Density profile for various CO₂ concentrations.

a Density as a function of temperature at 220 bars and b as a function of pressure at 50 °C. In (b), a sharp density increase is observed around 100 bars for pure CO₂, which is expected due to the crossing of the Widom line.
