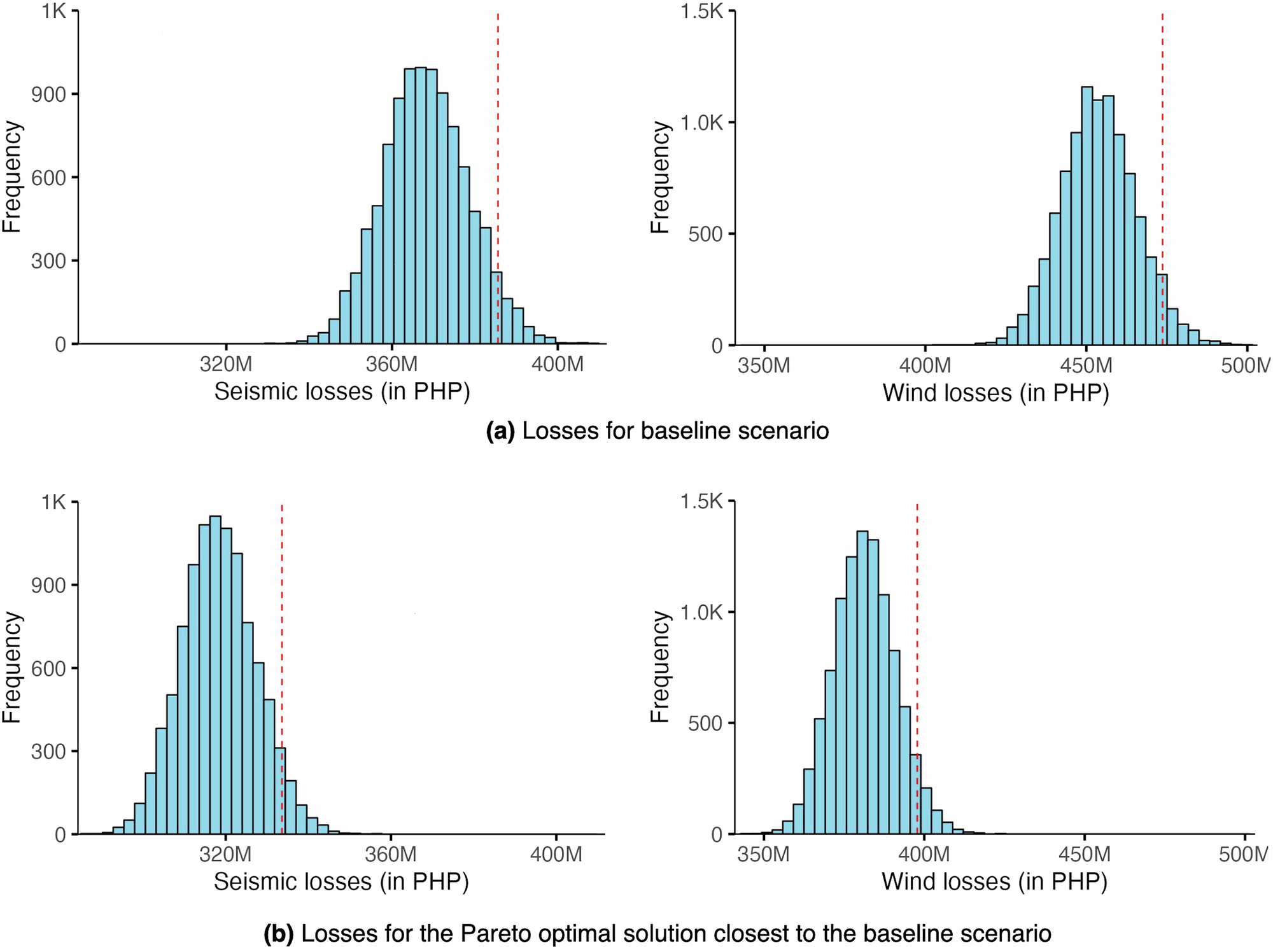

Fig. 5: Simulated losses for Case 2 (PEIS VIII and 300 km/h).

a The baseline scenario and b the Pareto optimal solution closest to the baseline scenario. The red, broken line indicates the 95^th percentile value. (Note that PEIS refers to the Philippine Volcanology and Seismology Earthquake Intensity Scale).
