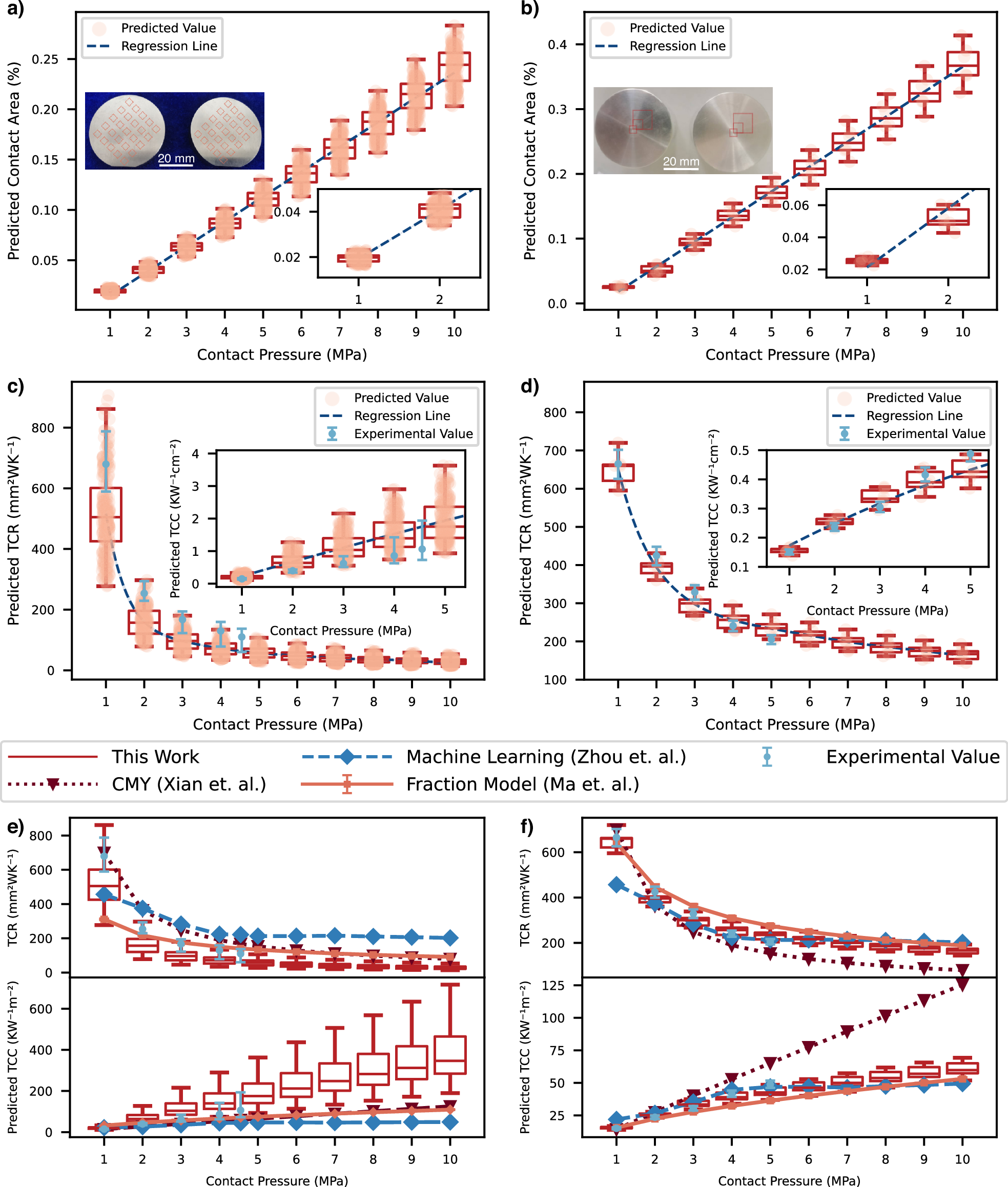

Fig. 2: Comparisons between prediction results, experimental data, and other prediction models.

From: A deep learning framework for predicting the effect of surface topography on thermal contact resistance

Fig. 2: Comparisons between prediction results, experimental data, and other prediction models.

a, b The predicted actual contact area for a ground and b turned surfaces. c, d The predicted thermal contact resistance (TCR) aligned with measured values for c ground and d turned surfaces. e, f Predicted TCR, and thermal contact conductance (TCC) compared with the Cooper-Mikic-Yovanocich (CMY) model, machine learning model, and fraction model for e ground and f turned surfaces. Specimens fabricated using griding and turning are shown in (a) and (b), respectively.
