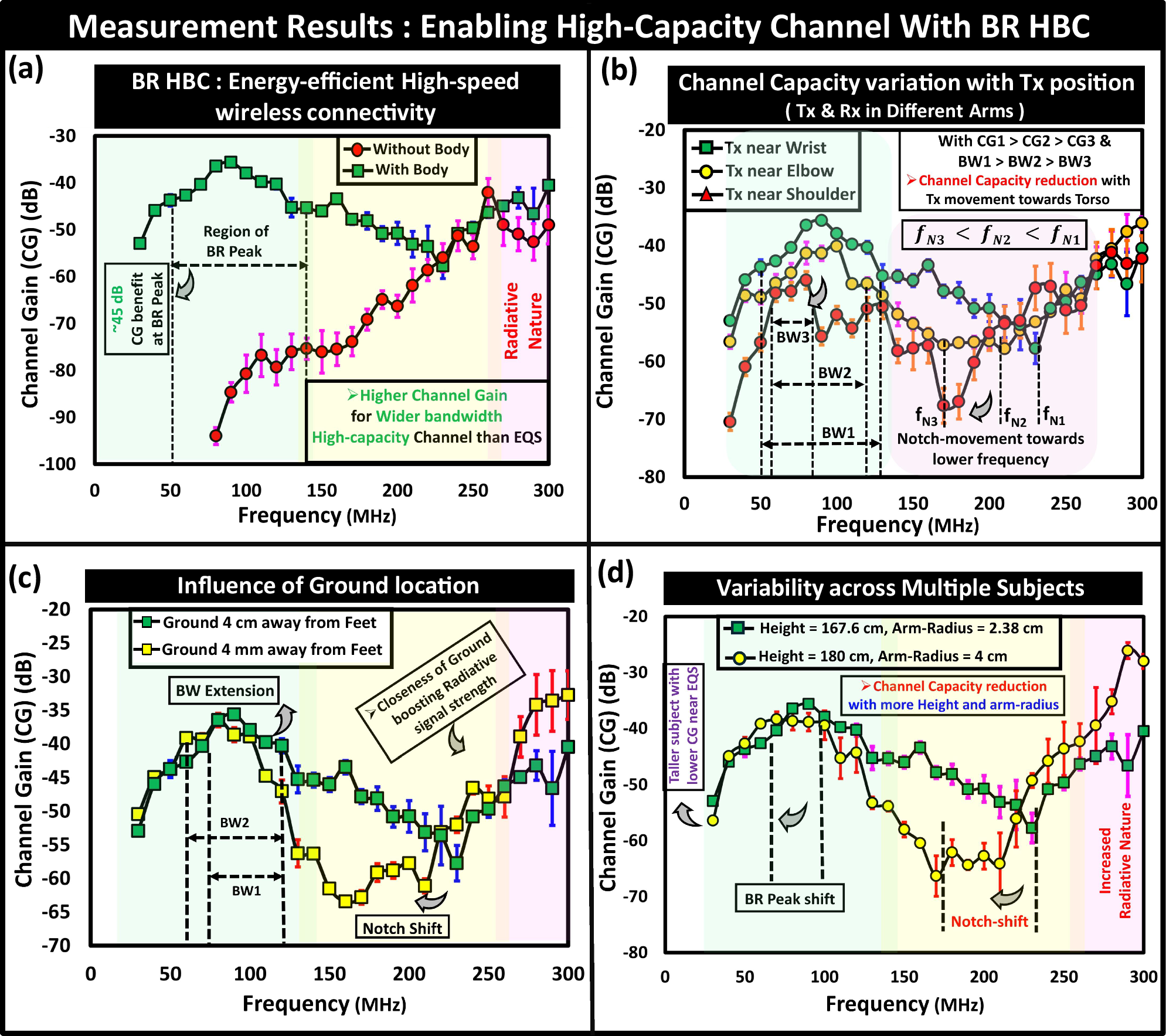

Fig. 11: Experimental results.
From: Body-resonance: transmission line-like wireless links enabling high-speed wearable communication
High capacity body-centric communication channel and its variability in Body-Resonance (BR) frequency regime: (a) BR Human Body Communication (HBC) offering higher channel gain for wider bandwidth to enable higher channel capacity, (b) reduction in body channel capacity with change in the transmitter (Tx) position along subject’s arm towards torso while keeping the receiver (Rx) fixed at the wrist of the other arm, (c) influence of location of Ground depicting variation in operational bandwidth (BW), (d) influence of subject’s body dimension on channel behavior through study on multiple subjects.
