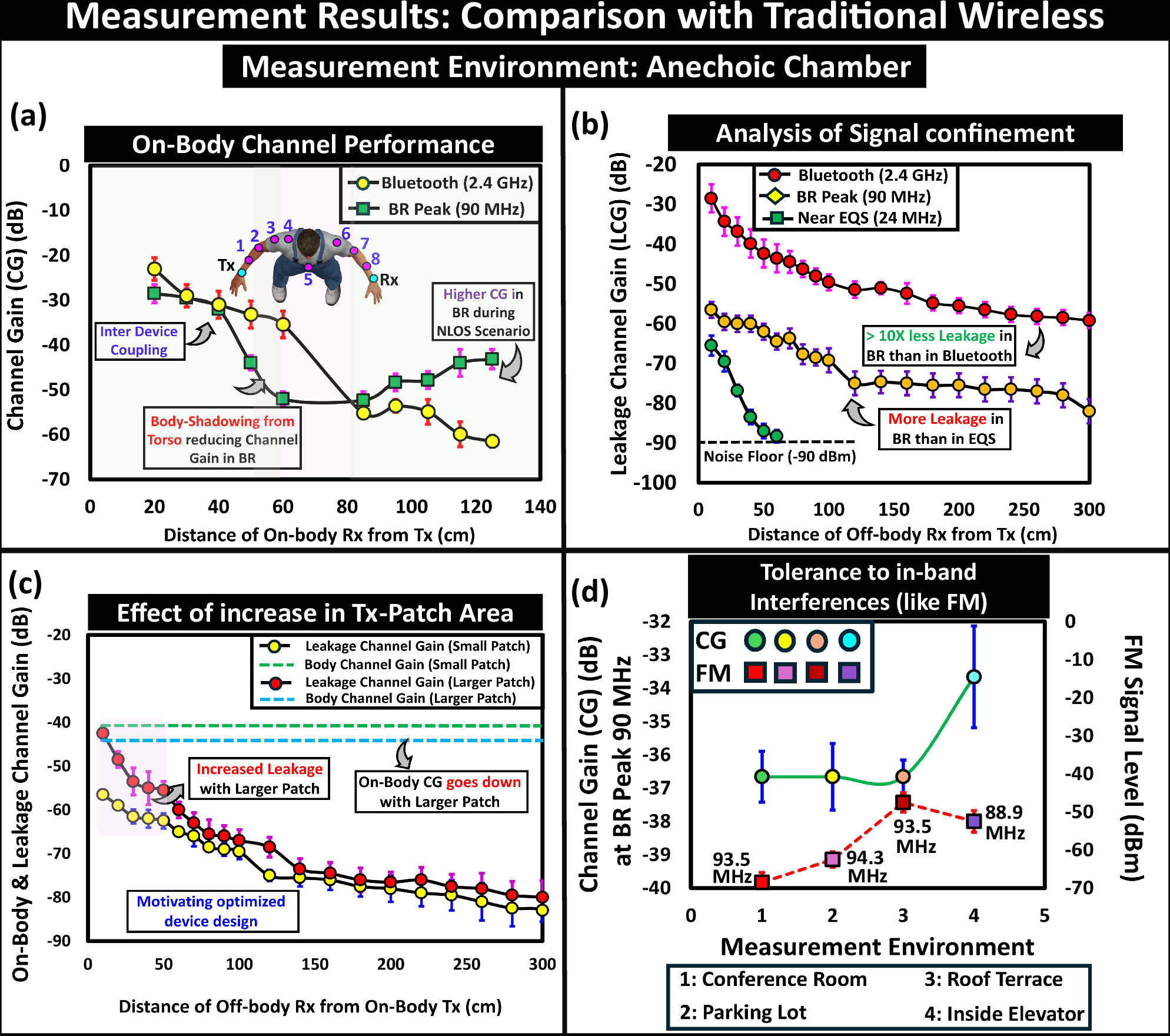

Fig. 12: Experimental results.
From: Body-resonance: transmission line-like wireless links enabling high-speed wearable communication
Comparative study of proposed Body-Resonance (BR) Human Body Communication (HBC) with traditional antenna-based wireless communication inside Anechoic Chamber: (a) on-body channel performance with variation in on-body Rx position: Better channel gain (CG) with BR HBC during Non-Line-Of-Sight (NLOS) scenarios, (b) Analysis of signal confinement between Bluetooth, BR and near Electro-quasistatic (EQS), (c) Effect of increase in area of the patch at the transmitter (Tx) on the on-body signal and leakage performance, d. Tolerance to in-band interference like Frequency Modulated (FM) signals in different environments.
