Fig. 3: Conceptual modeling of human body as a lossy transmission line.
From: Body-resonance: transmission line-like wireless links enabling high-speed wearable communication

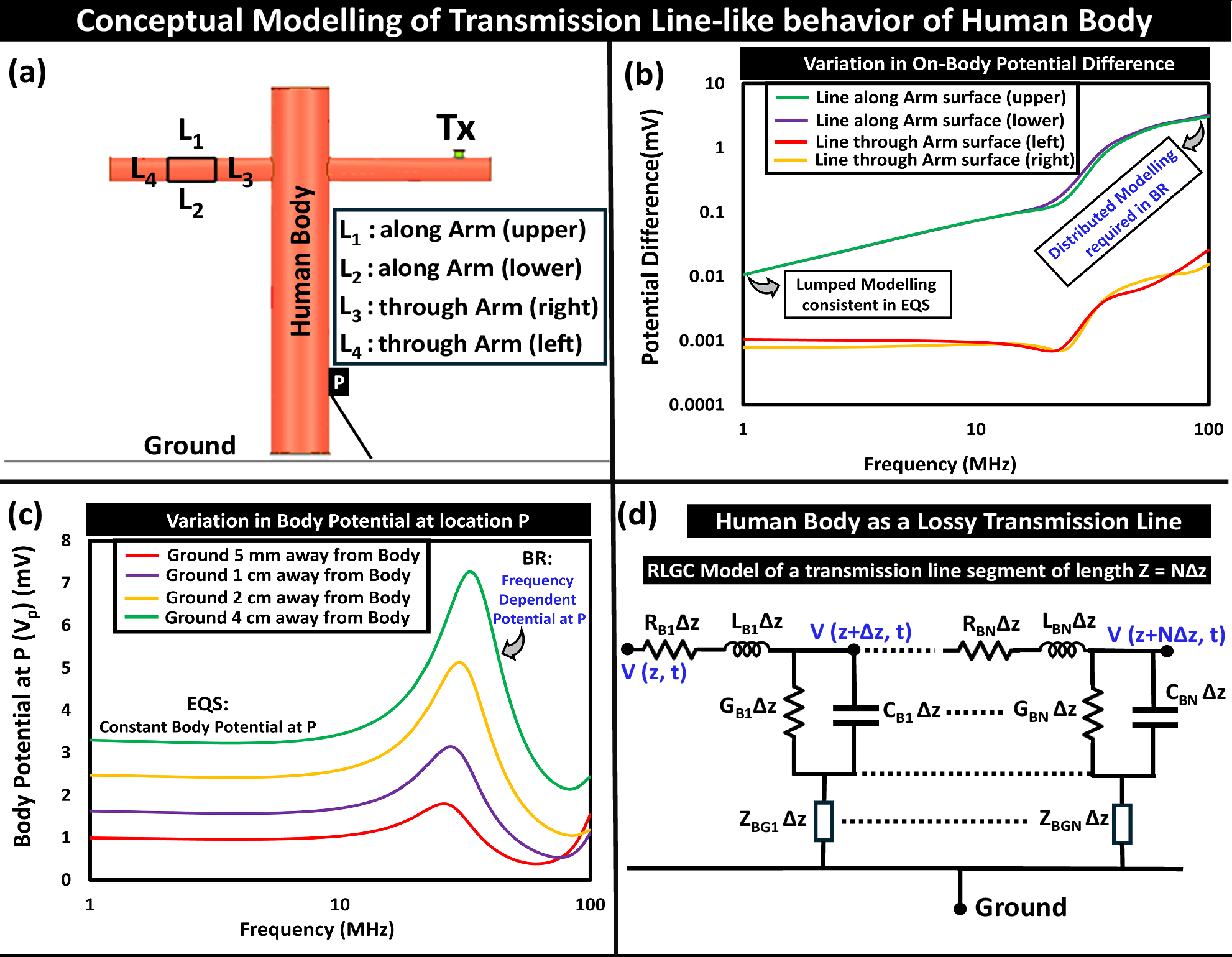

a Numerical simulation setup for electromagnetic analysis, b Variation in the potential difference between two locations, highlighting the need for distributed modeling of the body in BR, c Variation in Body potential at location P relative to the ground, illustrating frequency dependency of potential P, d Conceptual RLGC circuit of the human body, modeled as a lossy unbalanced transmission line with the human body being the signal conductor and the earth’s ground as the ground conductor.
