Fig. 6: In vitro testing of orthopedic prostheses. | Communications Engineering

Fig. 6: In vitro testing of orthopedic prostheses.

From: Towards clinical magnetic particle imaging: safety measurements of medical implants in a human cadaver model

Fig. 6

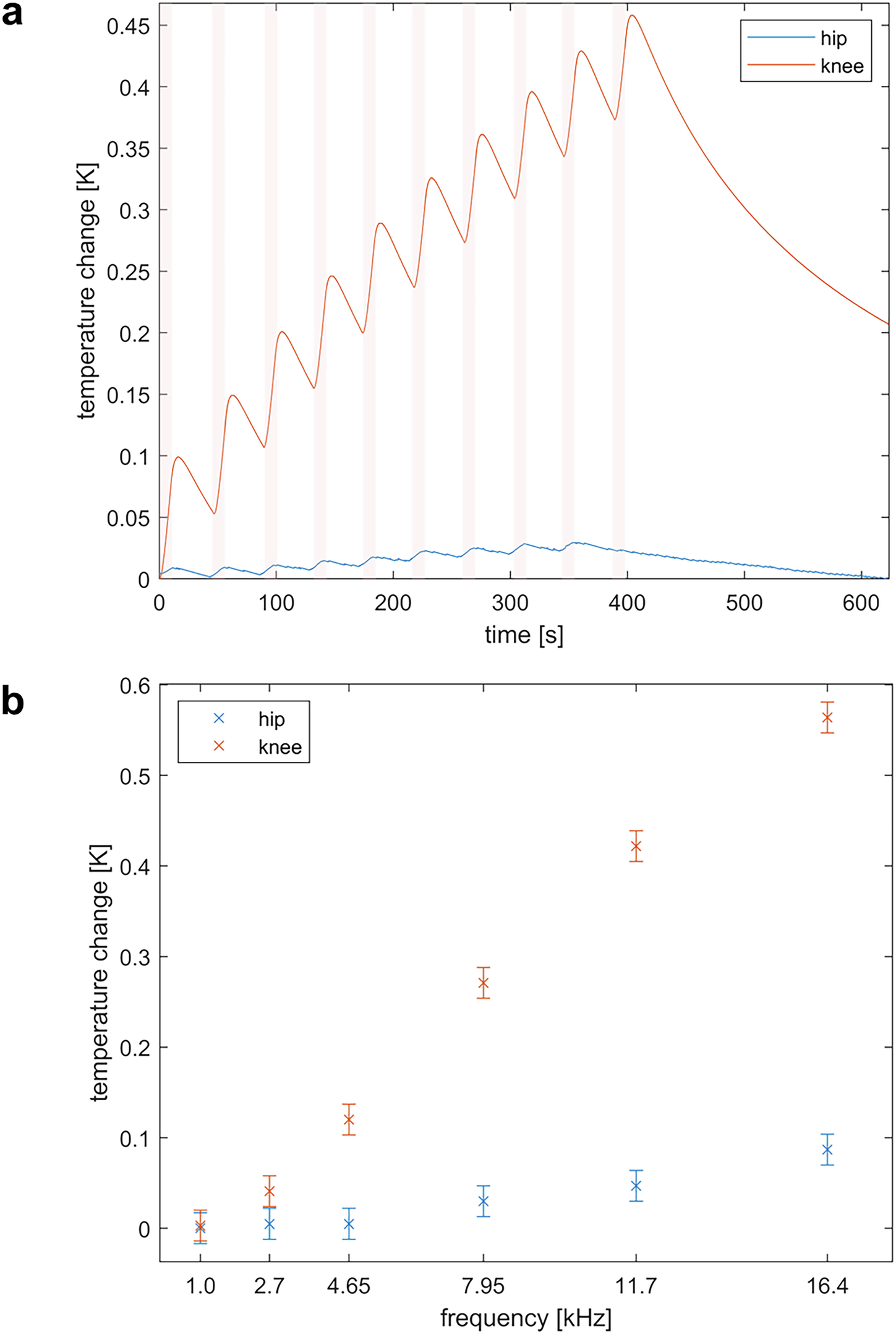

a Temperature curves of the tested orthopedic implants during measurements in the MPI-scanner (red areas: heating cycles). Note: The heating cycle for the hip prosthesis was only nine bursts due to technical issues. b Frequency dependency of the heating investigated in a separate heating setup. The error bars result from the standard deviation of the sensor (calculated from 2734 data points) over a constant measurement period. Further sequence details can be found in Table 3.
