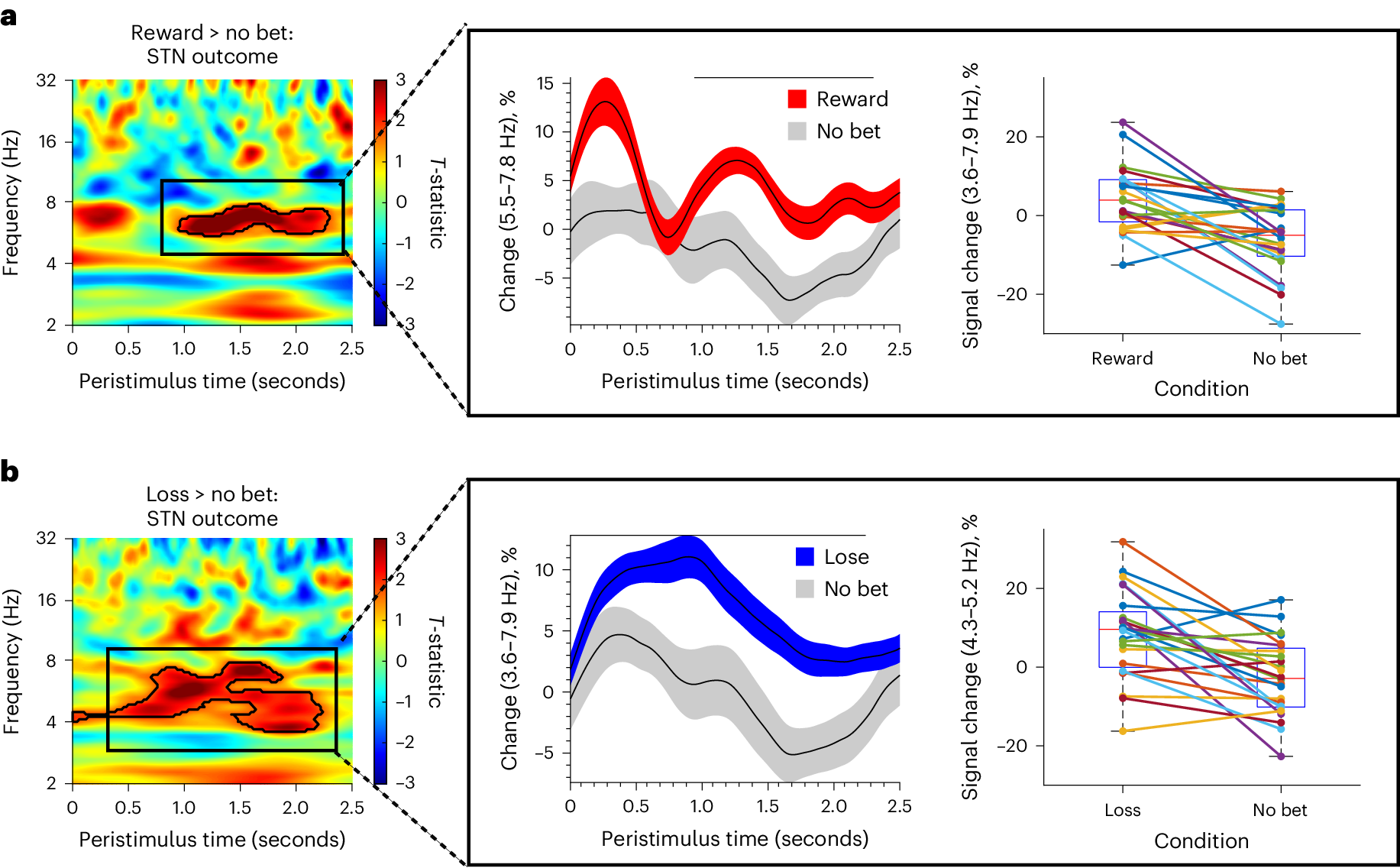

Fig. 3: Physiology of outcome phase in subthalamic nucleus.
From: Modeling impulsivity and risk aversion in the subthalamic nucleus with deep brain stimulation
a,b, The outcome phase showed significant subthalamic theta clusters in the time–frequency plot (N = 25 participants) for reward outcome versus no bet (a) and loss outcome versus no bet (b). The pop-outs show the significant theta cluster plotted as mean percentage change in activity across participants and percentage signal change for each individual across both reward and loss outcomes and no bet. Data are represented as mean +/− s.e.m. The box plot central mark refers to the median, the edges to the 25th and 75th percentiles and whiskers to the extreme datapoints.
