Fig. 3: Genetic context alignment of blaKPC-33.

From: Global phylogeography and genetic characterization of carbapenem and ceftazidime-avibactam resistant KPC-33-producing Pseudomonas aeruginosa

Fig. 3

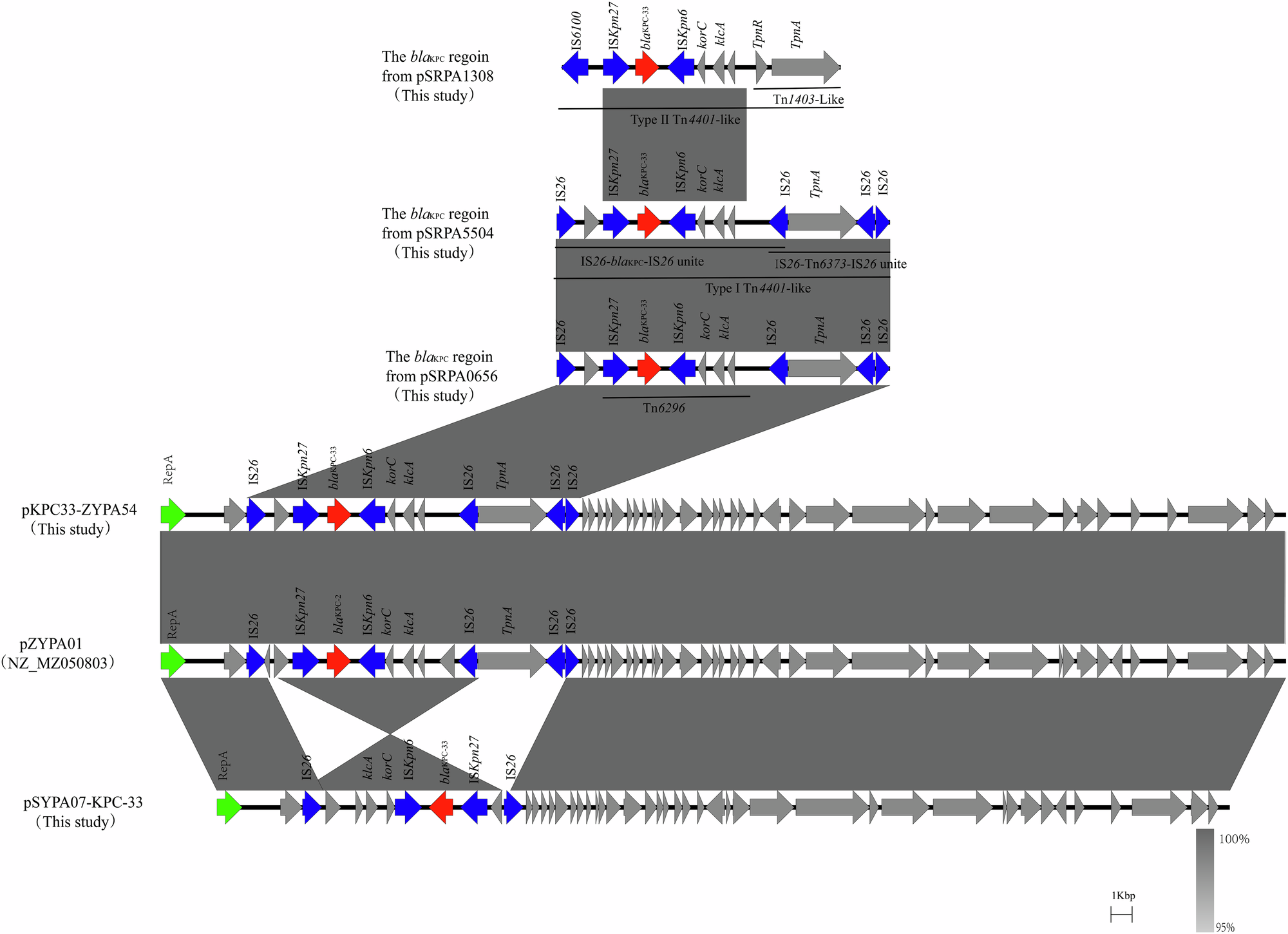

Comparison of the genetic context of the blaKPC region from pSRPA1308, the blaKPC region from pSRPA5504, and the blaKPC region from pSRPA0656, pKPC33-ZYPA54, pSYPA07-KPC-33, and pZYPA01. The gray shading and squares indicate homologies between the corresponding genetic loci on each plasmid. Arrows indicate open reading frames, with arrowheads indicating the direction of transcription: red, antibiotic resistance-encoding genes; blue, transposon- and integron-associated genes; other genes are shown by gray arrows.
