Fig. 4: Phylogenetic analysis of KPC-PA.

From: Global phylogeography and genetic characterization of carbapenem and ceftazidime-avibactam resistant KPC-33-producing Pseudomonas aeruginosa

Fig. 4

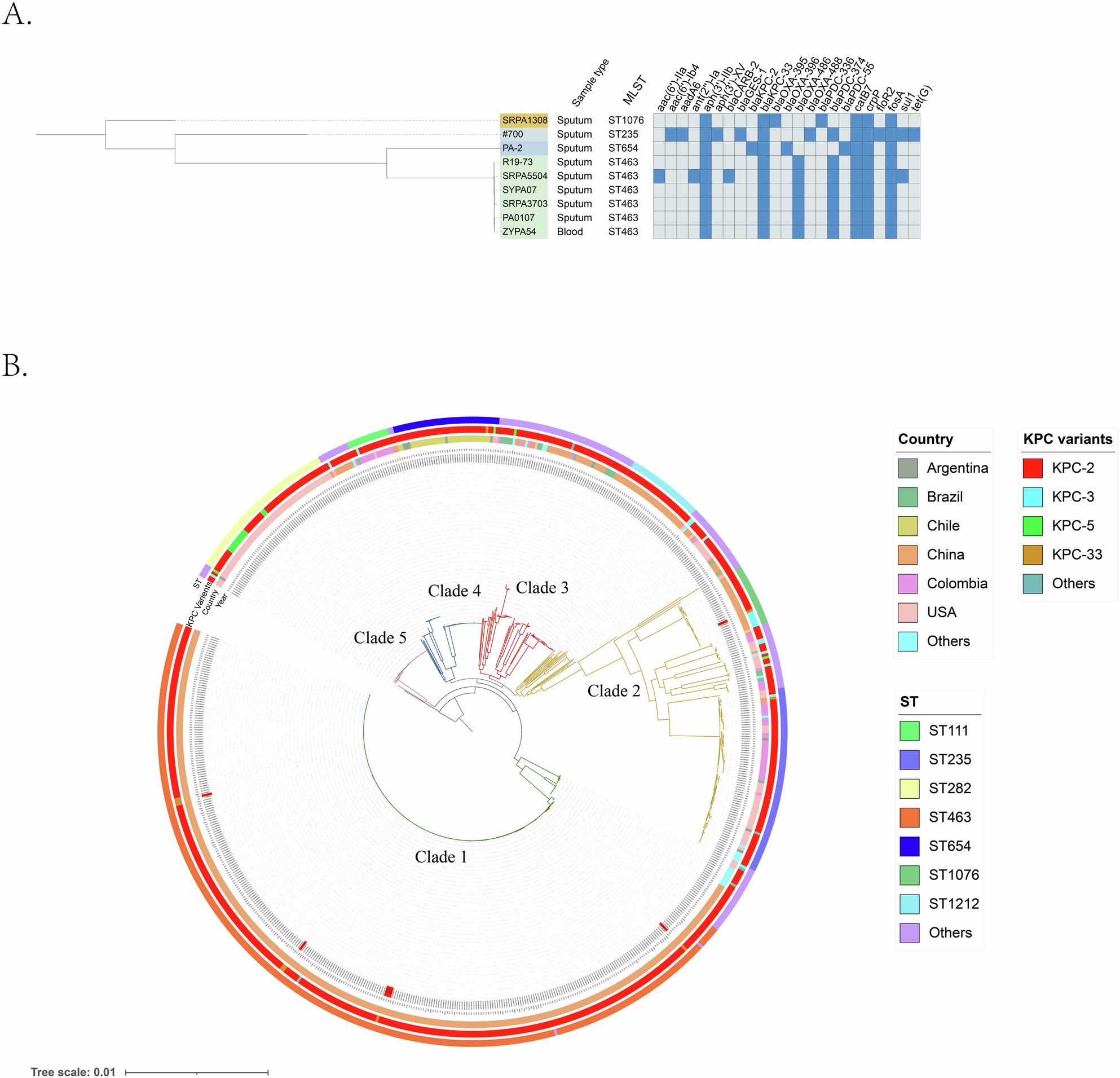

A Phylogenetic relationships of KPC-33 producing P. aeruginosa in this study and NCBI database. The blue squares represent the corresponding drug-resistance genes. B Phylogenetic tree of 714 KPC-PA isolates collected from this study and NCBI database. The red-marked genomes were collected clinically in this study.
