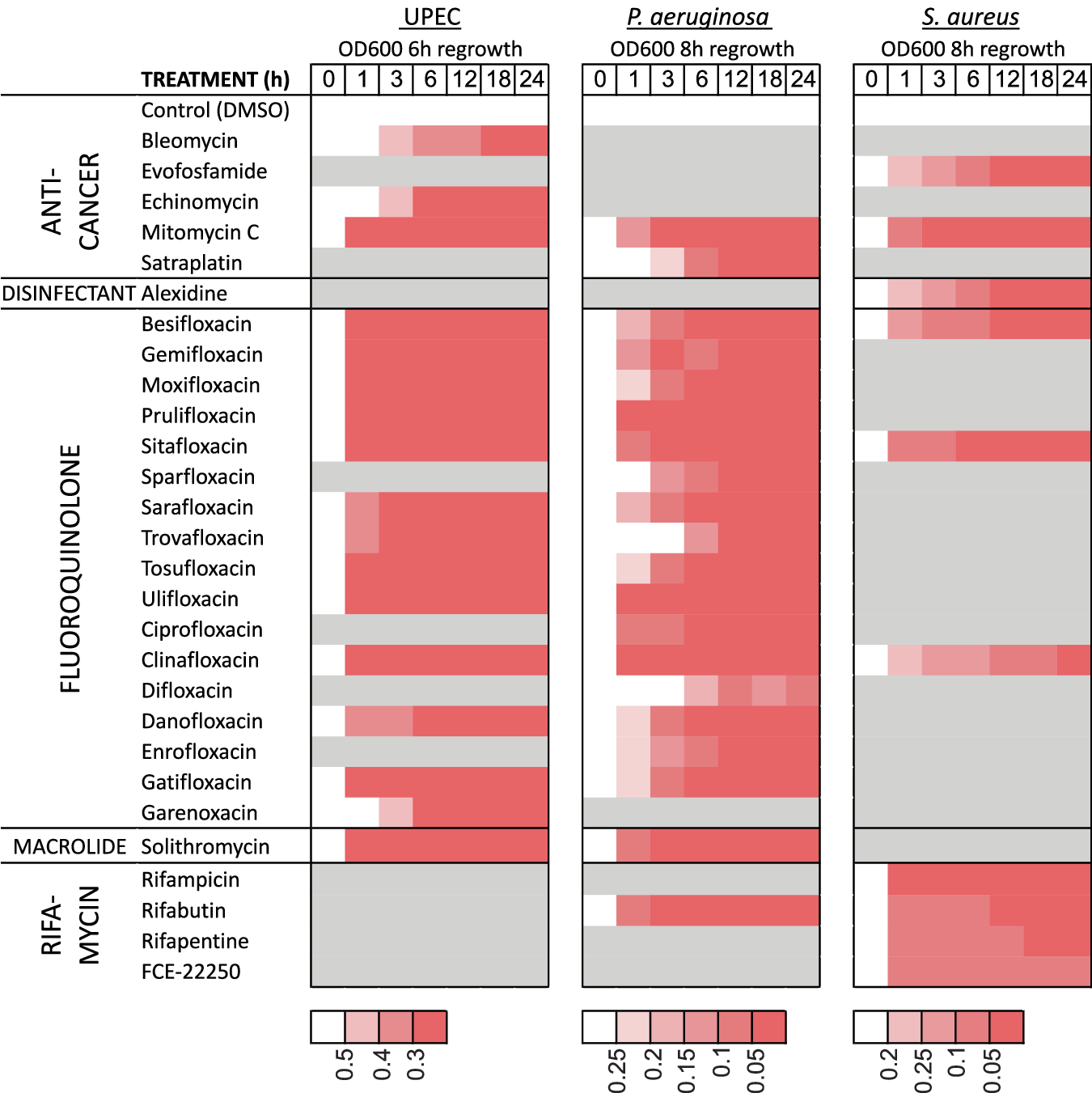

Fig. 6: Time course of antibacterial effects on non-growing bacteria.
From: Antibacterial compounds against non-growing and intracellular bacteria
Bacteria were cultivated in 1:4 CA-MHB (pH 7.4) for 24 h and the compounds were added at a concentration of 10 µM. Samples were taken at the indicated time points, diluted 2500-fold into CA-MHB, and OD600 was measured after 6 h of incubation for UPEC CFT073 and 8 h for P. aeruginosa and S. aureus. The color scale for OD600 values corresponding to each organism is shown below its respective heat map. Gray areas in the heat map indicate compounds not tested due to inactivity observed in previous experiments. Data represent the average of three biological replicates.
