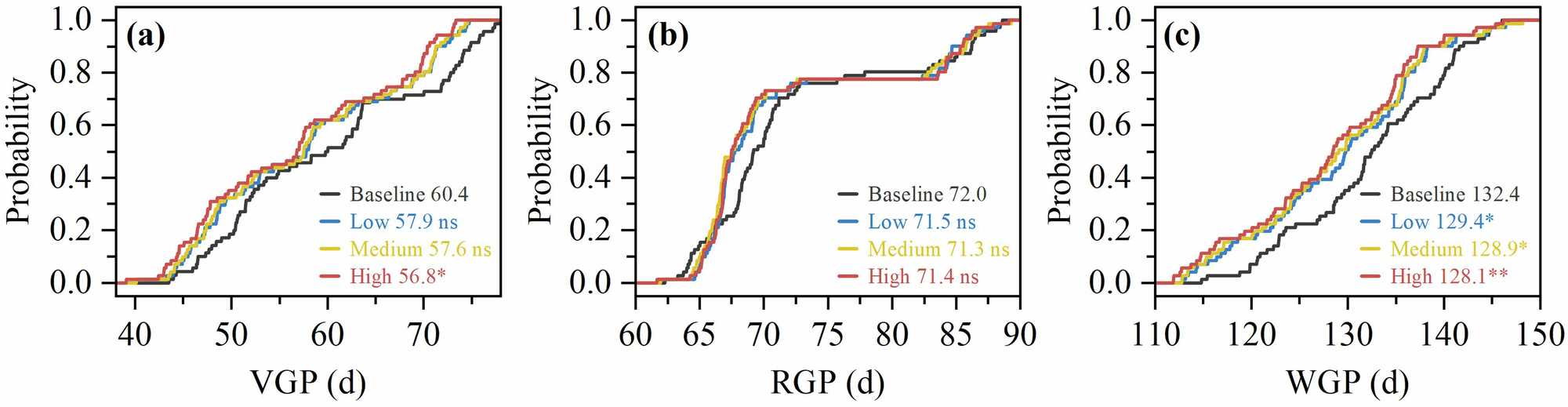

Fig. 2: The days of soybean growth stages under the baseline (1991–2020) and future climates (2021–2050). | npj Sustainable Agriculture

Fig. 2: The days of soybean growth stages under the baseline (1991–2020) and future climates (2021–2050).

From: Anticipated changes in soybean drought stress and yield stability under future climates in Northeast China

Fig. 2

a Vegetative growth period (VGP). b Reproductive growth period (RGP). c Whole growth period (WGP). The simulated results for future climate are ensemble means of the five general circulation models, including GFDL-ESM4, IPSL-CM6A-LR, MPI-ESM1-2-HR, MRI-ESM2.0, and UKESM1.0-LL. The difference in means between future scenario and baseline is evaluated by Student’s T test, * and ** indicate significance at p < 0.05 and p < 0.01, respectively, ns indicates not significant.
