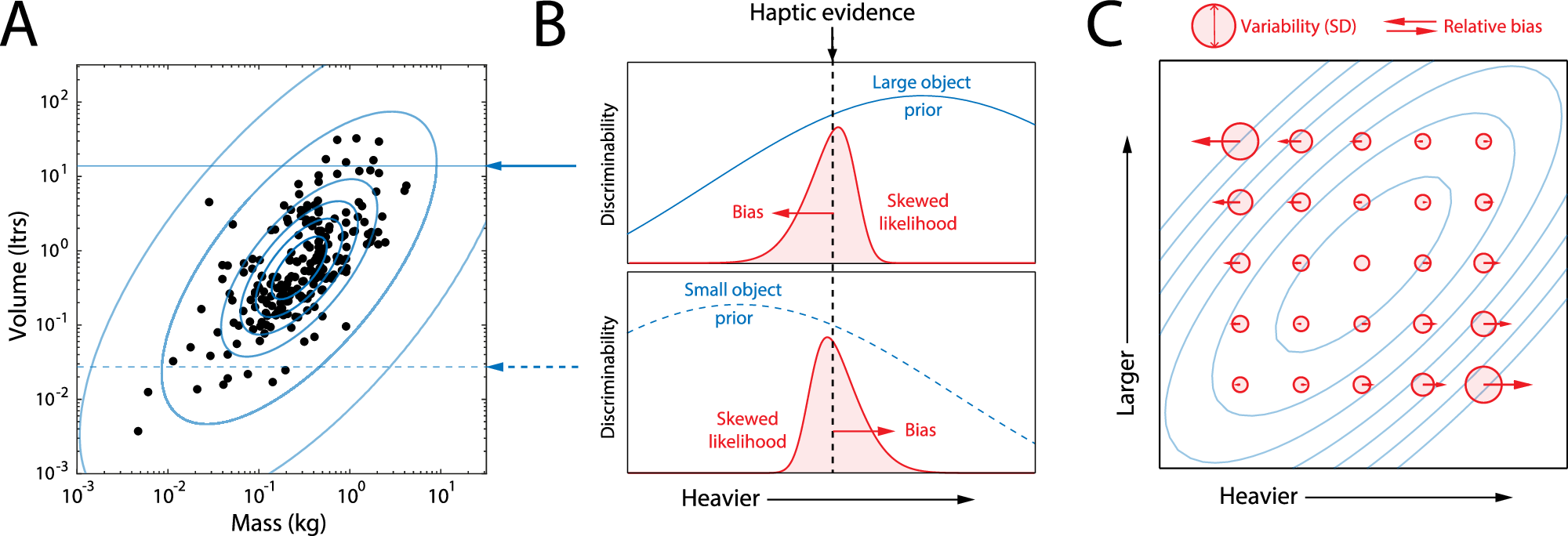

Fig. 1: Predictions for bias and variability based on correlated environmental statistics.

A Mass and volume of a large sample of liftable everyday objects²² plotted on logarithmic axes. Blue contours show the best-fitting bivariate log-normal distribution (normal on these axes). B Illustrates estimation of mass for objects of larger (top) and smaller (bottom) volume. Blue arrows indicate corresponding volumes in (A). Discriminability (inverse of discrimination threshold or JND) varies in proportion to the conditional probability of object mass, given visual evidence of object volume (blue curves). For the same haptic feedback of object mass (black dashed line), the different gradients of discriminability cause likelihood functions (red) to skew in opposite directions. Red arrows show the relative directions of bias in mean posterior estimates of mass. C Predicted SD (circle diameters) and bias (arrows) in estimates of mass for objects with a range of true volumes and masses. Estimated weights of larger objects are underestimated relative to smaller objects of the same weight, as in the SWI.
